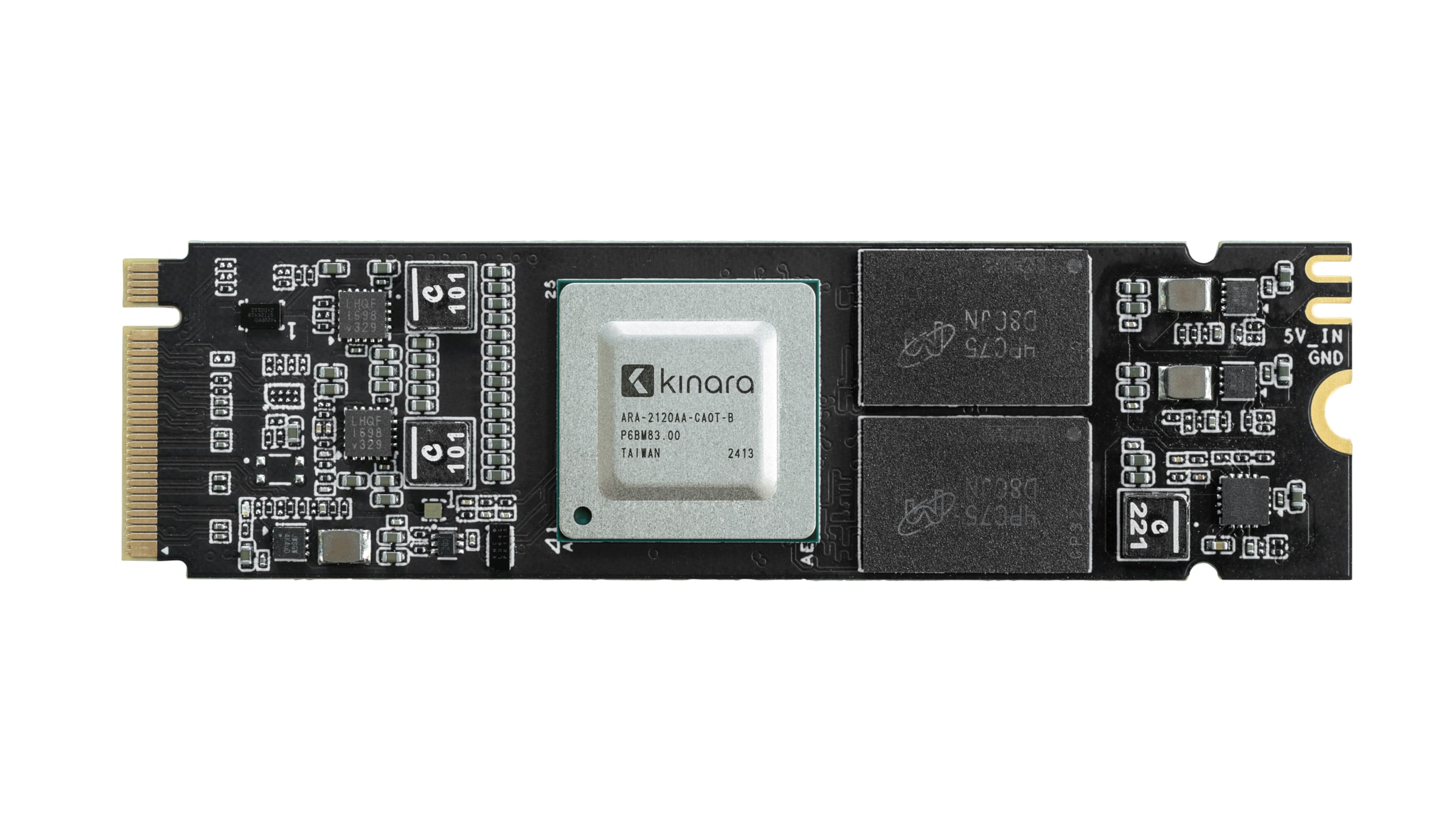

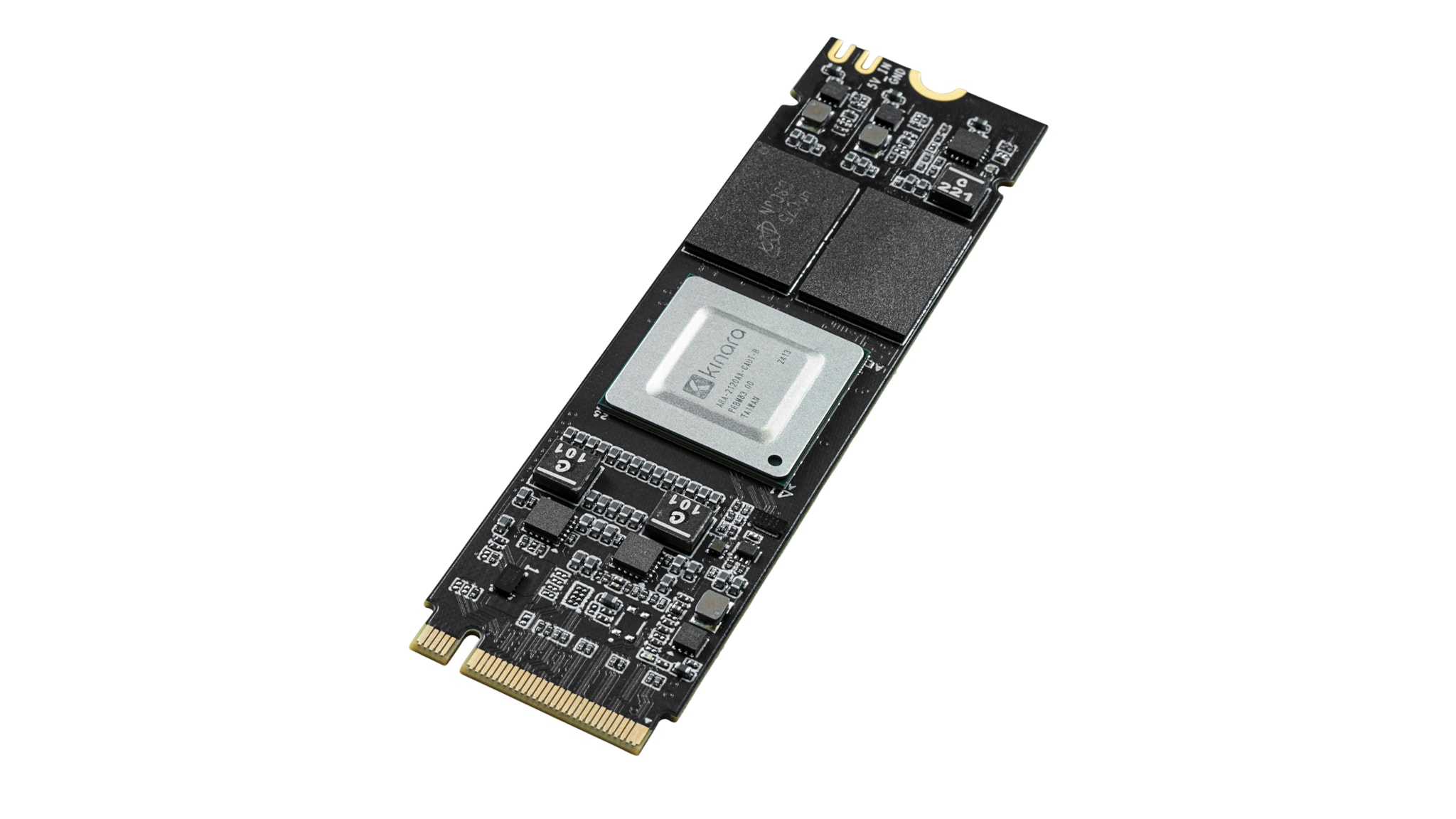

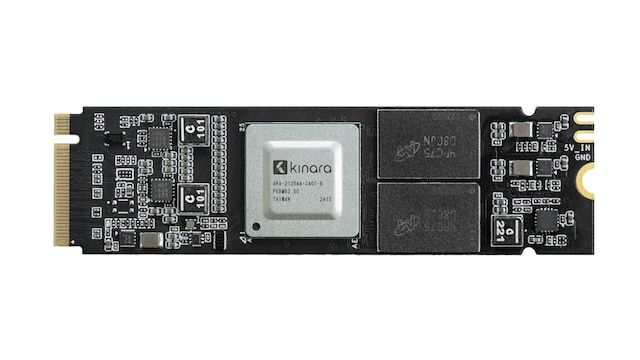

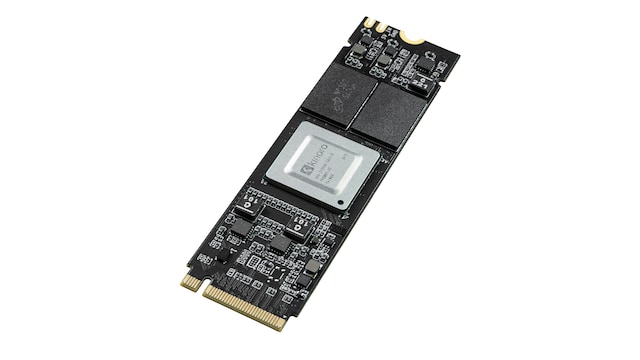

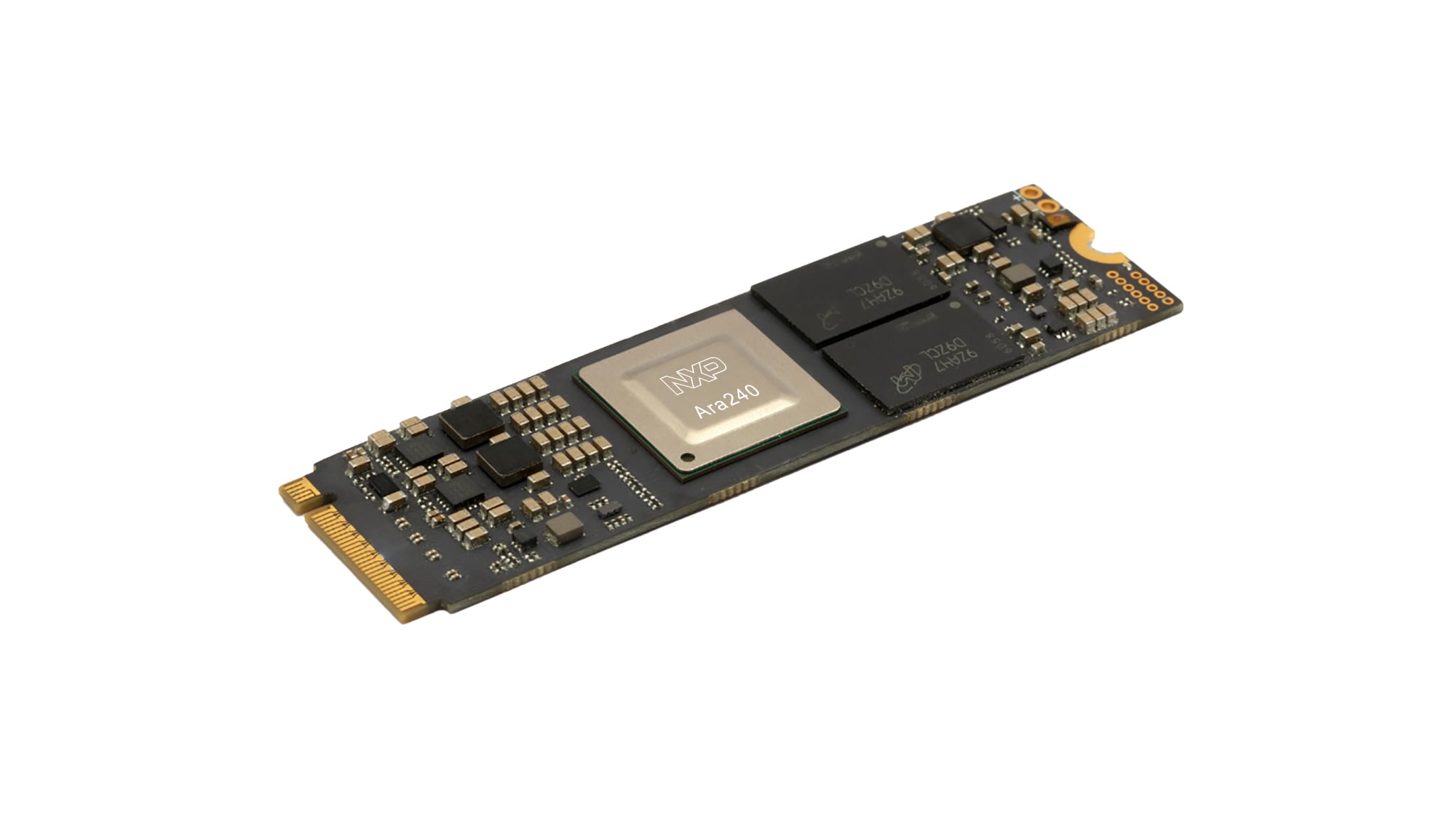

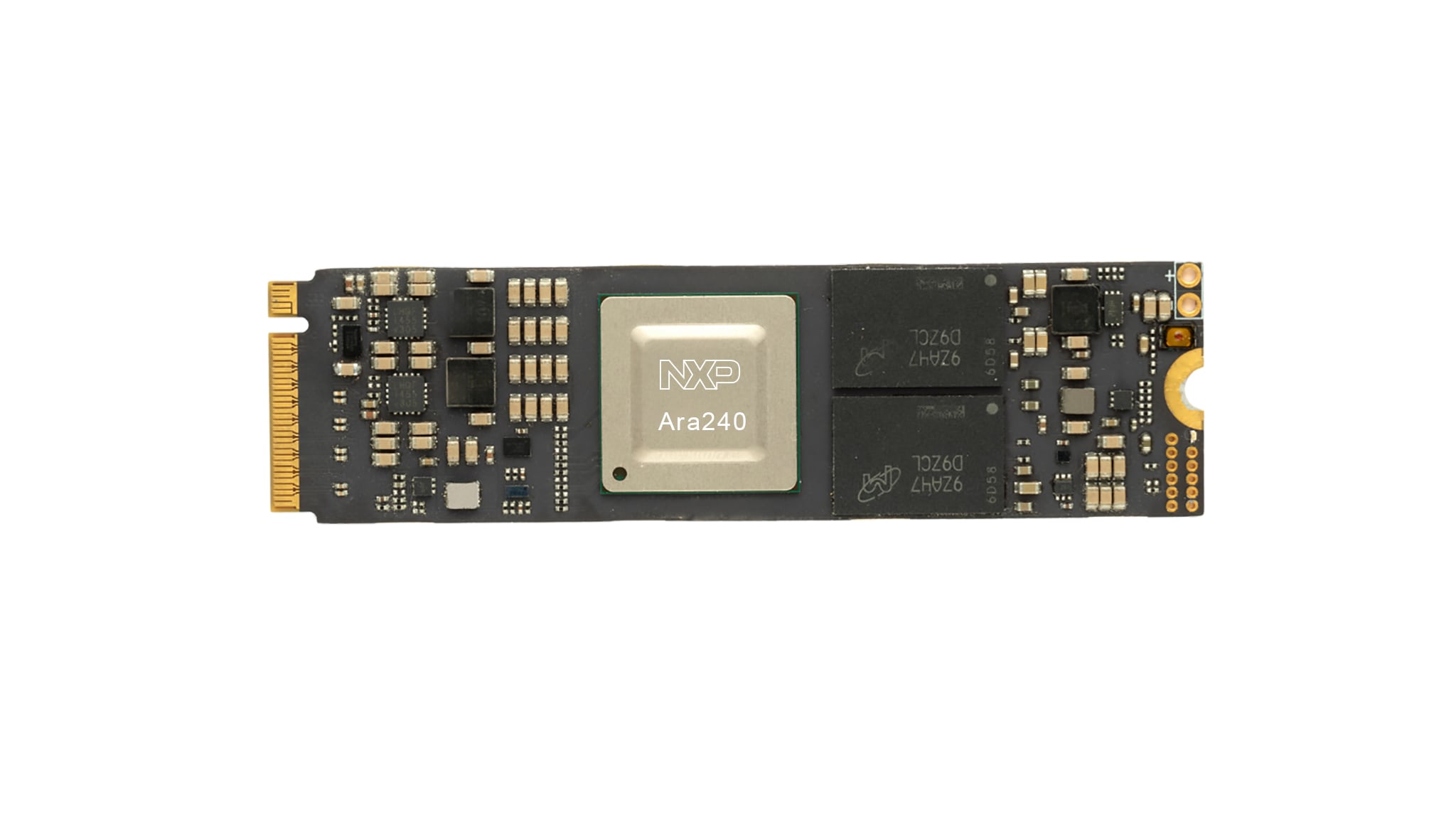

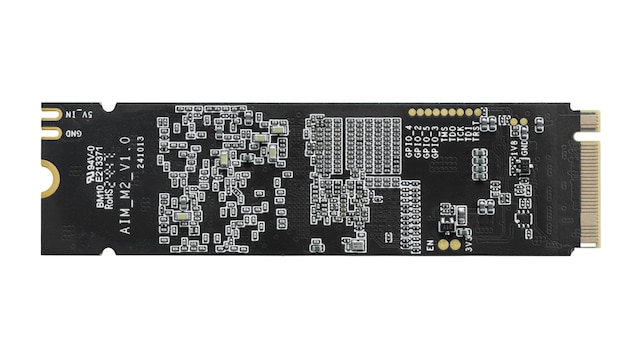

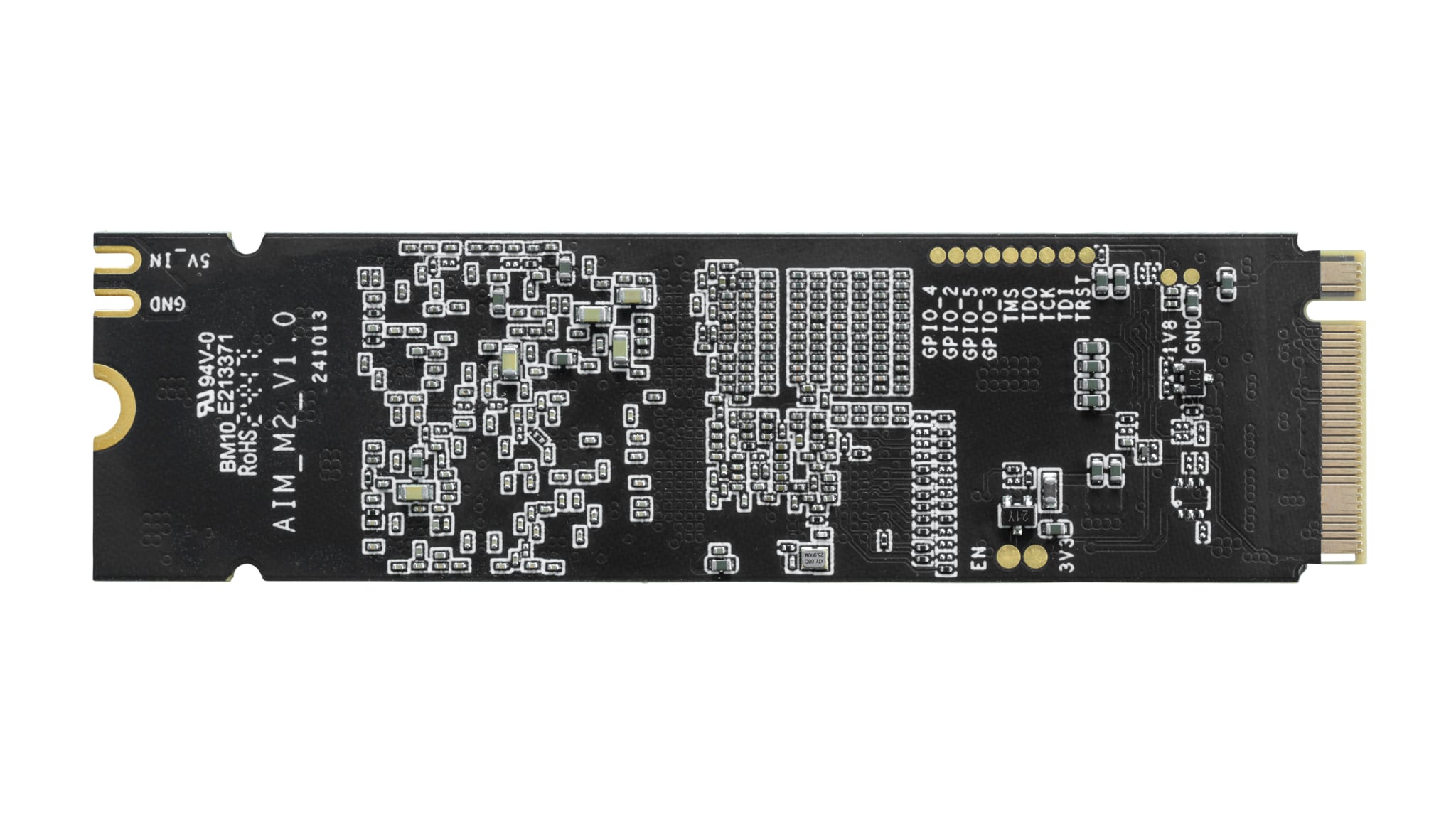

Ara240 16GB M.2 Module
The Ara240 16GB M.2 Module is an AI accelerator module based on the Ara240 AI processor. It can provide up to 40 eTOPs with flexible precision. It uses the M.2 M-Key and supports a maximum 4 lanes PCI Express 4.0 in x4 configuration. Designed with the commonly used NGFF 2280 form factor, it can be easily used as a companion processing unit on any NXP i.MX or S32 platform with M.2 M-Key PCI Express capability.
产品详情
支持的器件
处理器和微控制器
独立神经处理单元
- ARA240: Ara-2独立NPU：赋能实时生成式AI
i.MX 8应用处理器
- i.MX8MPLUS: i.MX 8M Plus – Arm® Cortex®-A53，机器学习，视觉，多媒体和工业物联网
i.MX 9处理器
- i.MX95: i.MX 95应用处理器系列：支持功能安全的高性能平台，带eIQ® Neutron NPU
Features
Processor
- Ara240 Discrete Neural Processing Unit (DNPU) delivering up to 40 eTOPs*
- Proprietary Neural Network Processor (NNP) operates up to 900 MHz
Memory
- 16 GB LPDDR4/4x
- 4 MB SPI NOR flash
- 8 kB I²C EEPROM
Connectivity
- M.2 M-Key Gold Fingers
- PCIE4.0 x1, x2, x4 configuration
