Customer evaluation kit for BGA7204, Variable gain amplifier

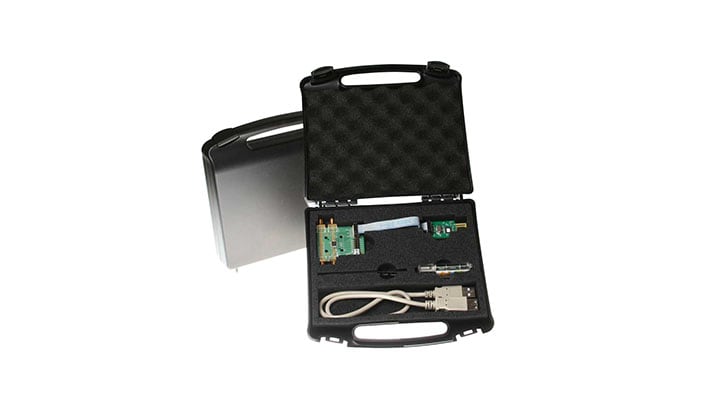

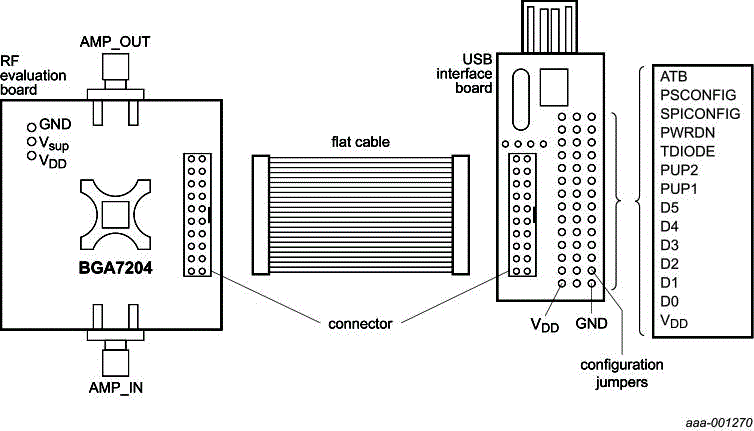

The BGA7204 customer evaluation kit enables the user to evaluate the performance of the variable gain amplifier BGA7204. The kit comes with a USB-interface board and customer software which allows you to use your PC to control the SPI interface of the BGA7204. You can set the attenuation state and advanced features as temperature read-out, reprogramming the gain curve and power down. The kit also provides BGA7204 samples for prototyping, a RF calibration-track for de-embedding of the RF board, product documentation and a USB extension cable to facilitate the work at the RF bench.
