BGU8L1 LTE LNA evaluation board

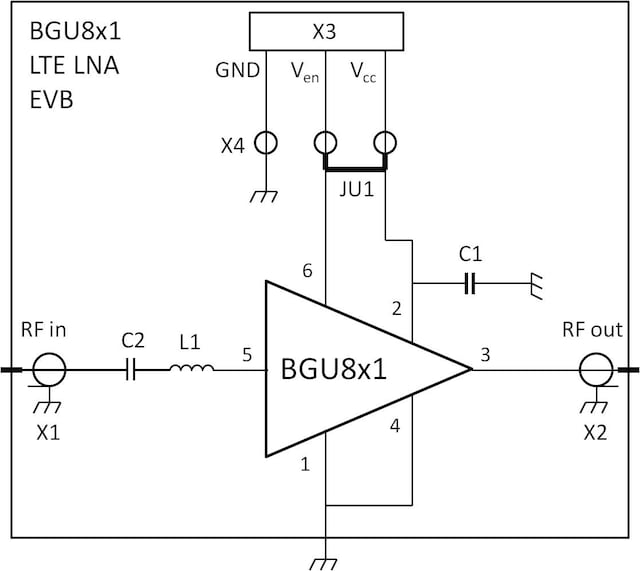

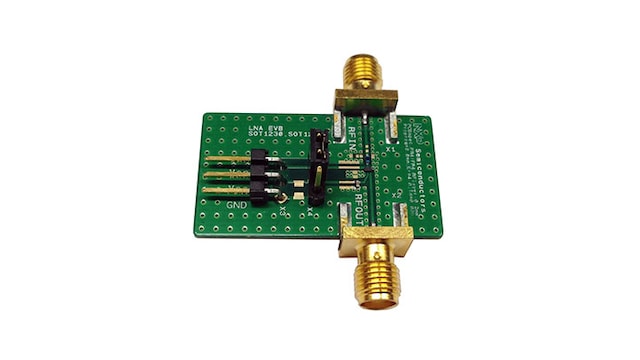

The BGU8L1 LTE LNA evaluation board simplifies the evaluation of the BGU8L1 LNA for the LTE application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8L1, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8L1 can operate from a 1.5 V to 3.1 V single supply and consumes about 4.6 mA.
