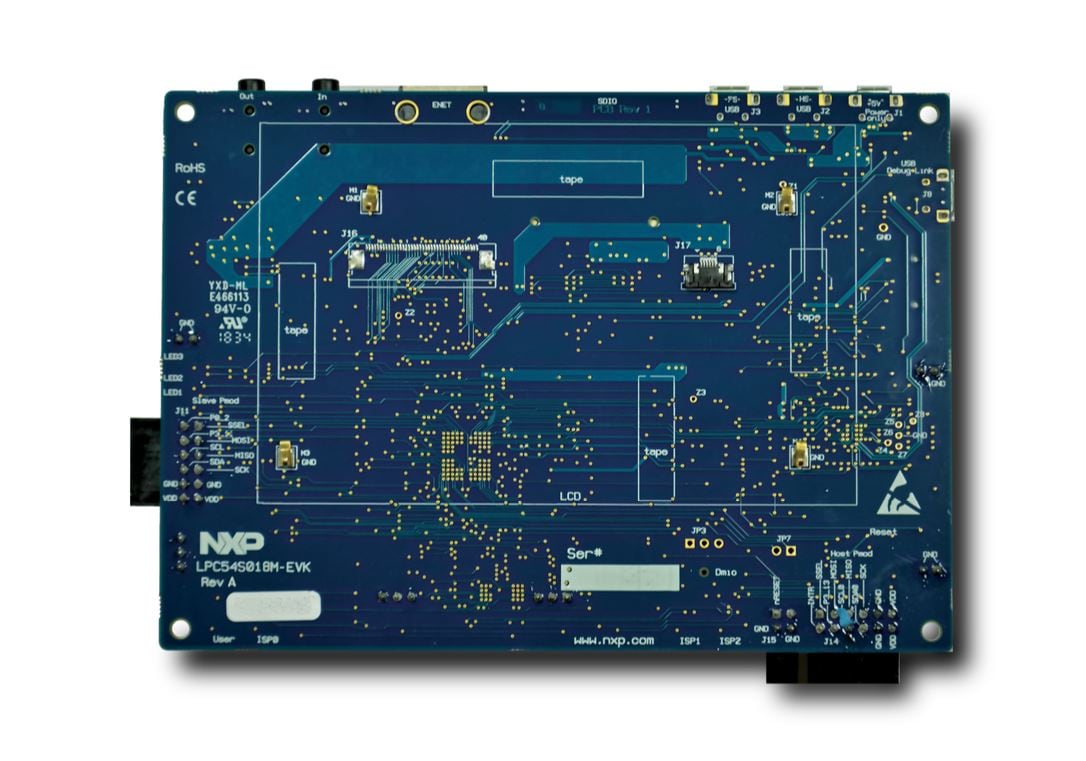

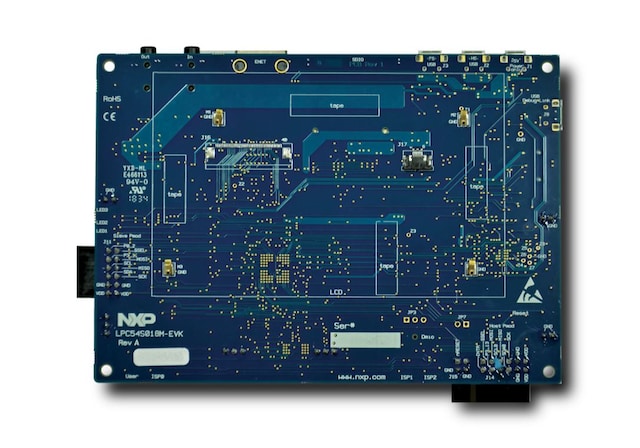

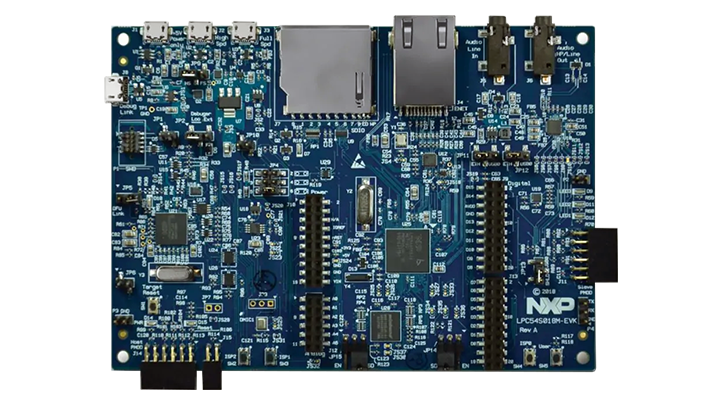

LPCXpresso54S018M开发板

LPC54S018M-EVK

滚动图片以放大

LPC54S018M-EVK开发板旨在通过LPC540xxJxM/LPC54S0xxJxM MCU器件进行评估和原型设计，这些器件充分利用高性能Arm® Cortex®-M4内核并提供LPC54S0xx MCU系列中的高级安全功能。该电路板由LPC540xxJxM/LPC54S0xxJxM目标器件和板载CMSIS-DAP / SEGGER® J-Link兼容的硬件调试器组成。

板载硬件调试器与MCUXpresso IDE及Keil™和IAR®等其他领先的工具链兼容。该开发板还配有一个标准的10引脚接头，可使用第三方硬件调试器。除了标准的LPCXpresso V3功能，该电路板还包括一套完整的外设接口，使开发人员能够充分了解LPC540xxJxM/LPC54S0xxJxM器件的功能。

MCUXpresso配置工具和扩展的SDK驱动程序/使用示例，包括LPC54S0xx MCU器件中支持的安全功能示例，都可用于mcuxpresso.nxp.com中所列的电路板。

产品详情

支持的器件

处理器和微控制器

LPC54000 Cortex-M4

  • LPC540XX: 基于Arm® Cortex®-M4内核的高效微控制器(MCU)，带先进外设

特征

微控制器

  • LPC540xxJxM/LPC54S0xxJxM微控制器

存储器

  • Winbond 128 Mb W25Q128JVFIM四通道SPI闪存
  • Winbond 128 Mb W9812G6JB-6I SDRAM
  • 全尺寸SD/MMC卡插槽

连接

  • 板载高速USB、Link2硬件调试器，支持CMSIS-DAP和SEGGER J-Link协议
  • UART和SPI端口通过板载硬件调试器将目标LPC54S018和USB桥接起来
  • 高速和全速USB端口，具有主机或设备功能可用的微型A/B连接器
  • 10/100 Mbps以太网(RJ45接头)

电源管理

  • 针对目标LPC54018 MCU的内置功耗测量

传感器

  • 恩智浦MMA8652FCR1加速度传感器

显示器

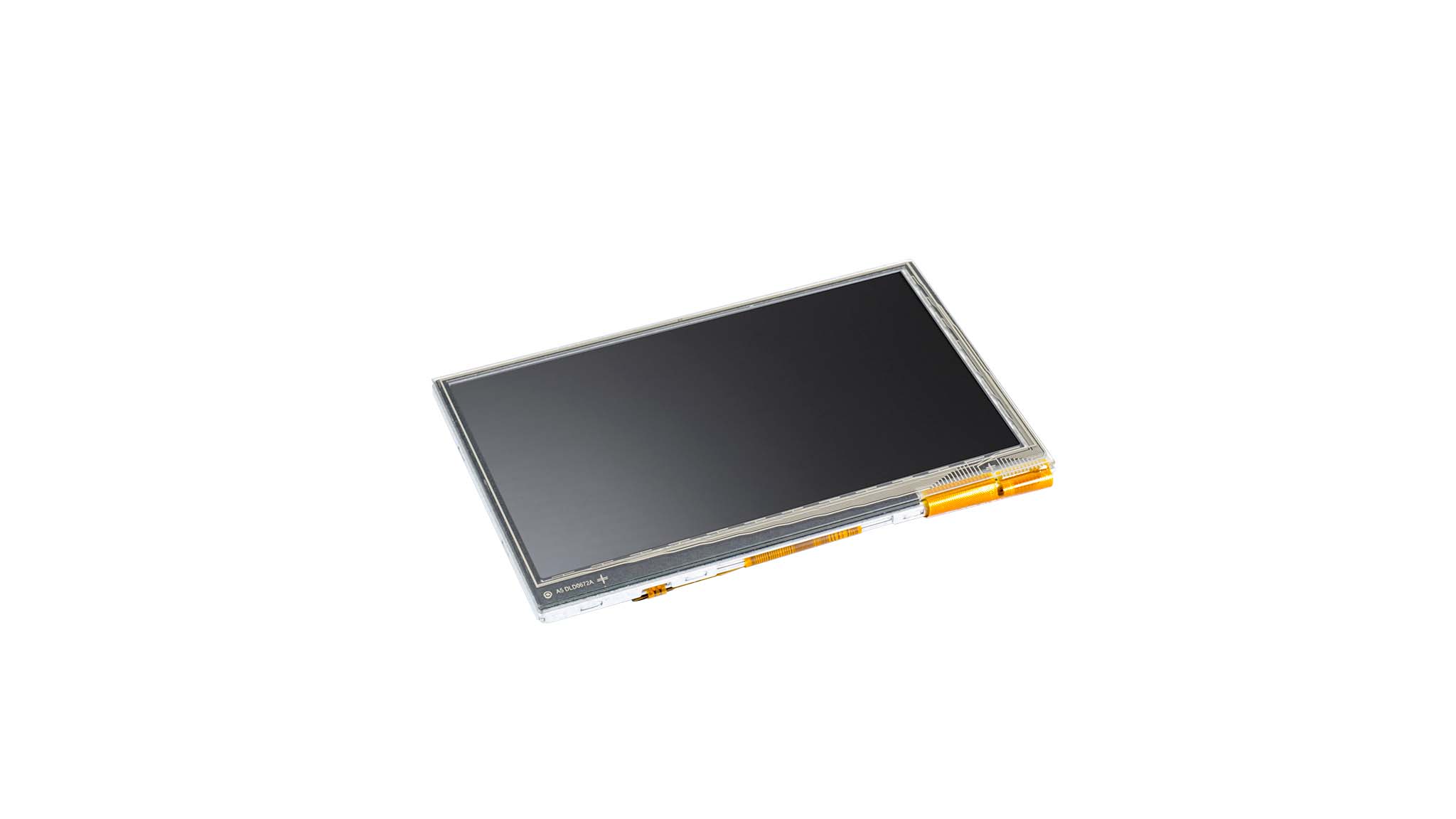

  • 可选的480x272电容式TFT LCD触摸屏(可单独购买)

音频

  • Knowles SPH0641LM4H数字麦克风
  • 立体声音频编解码器，带线路输入/输出

支持

  • 支持外部硬件调试器

扩展端口

  • 多个扩展选件，包括Arduino® UNO和PMod

用户组件

  • 3个用户LED，加上复位、ISP (3)和用户按钮

购买选项

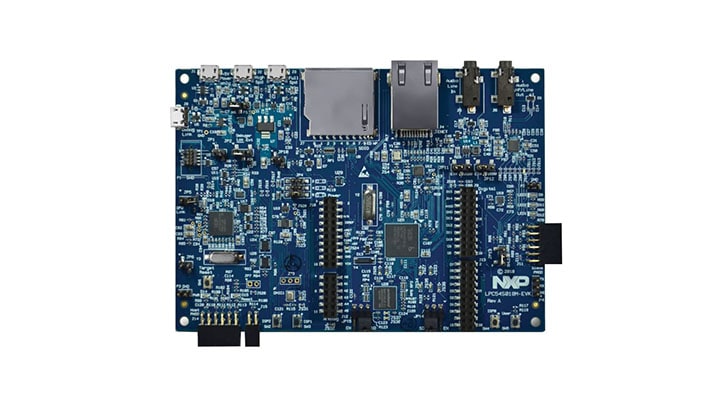

LPC54S018M-EVK-Image

点击展开

  • LPC54S018M-EVK
    正常供应

  • LPCXpresso54S018M Development Board.

    • 1个LPCXpresso54S018M开发板，预装载了spirit level示例和板诊断固件。
  • $115.50 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
