LPC1227FBD48_ARM Cortex-M0_32位MCU

LPC1227FBD48是一款适合嵌入式应用的ARM Cortex-M0微控制器，具有较高的整合度和低功耗。LPC1227FBD48可在高达30 MHz的CPU频率下运行，包含高达128 kB的闪存和8 kB的数据存储器。LPC1227FBD48的补充外设包括DMA控制器、CRC引擎、一个超快速模式I2C接口、一个RTC、一个SSP/SPI接口、两个UART、四个通用定时器、一个10位ADC、两个比较器和多达39个通用I/O (GPIO)引脚。LPC1227FBD48以LQFP48封装形式提供。

产品详情

框图

LPC122x Block Diagram

获取框图PDF

特征

ARM Cortex-M0处理器，工作频率高达30 MHz
ARM Cortex-M0内置可嵌套中断向量控制器(NVIC)
串行调试
系统节拍定时器
高达8 kB SRAM
带有128 kB片上闪存编程存储器
在系统编程(ISP)和在应用编程(IAP)
包括基于ROM的通用除法例程
工作范围从1 MHz到25 MHz的晶体振荡器
校准到1％精度的12 MHz内部RC(IRC)振荡器
PLL允许CPU以最大CPU速率运行
带分频的时钟输出功能
实时时钟(RTC)
带有21个通道的微DMA控制器
CRC引擎
串行接口：I2C、UART、SSP/SPI
四个引脚上可编程的大电流输出驱动器(16 mA)
多达39个通用I/O (GPIO)引脚，带可编程的上拉电阻
所有GPIO引脚均可用作边沿和电平触发中断源
4个通用计数/定时器
窗口化看门狗定时器(WWDT)
一个8通道10位ADC
2个高度灵活的模拟比较器
3种低功耗模式：睡眠模式、深度睡眠模式和深度掉电模式
处理器使用12个端口引脚通过启动逻辑从深度睡眠模式唤醒
使用三个单独的阈值进行掉电检测
上电复位(POR)
集成式PMU(电源管理单元)
3.3 V电源

目标应用

电子计量
照明
工业网络
报警系统
大型家电

文档

快速参考文档类别.

1-5 / 14 文件

^数据手册
32-bit ARM Cortex-M0 microcontroller; up to 128 kB flash and 8 kB SRAM

PDF版本 2.0492.5 KBLPC122X中文, 英语
^应用笔记
Quick Start Up Guide PNEV512B Board

PDF版本 2.5Sep 26, 20182.9 MBAN11308英语
^应用笔记
AES encryption and decryption software on LPC microcontrollers

ZIP版本 1.1Mar 17, 2014177.9 KBAN11241英语
^应用笔记
NXP LPC Cortex-M0 IEC60335 Class B library

ZIP版本 1.1Jan 24, 20142.6 MBAN11208英语
^应用笔记
LPC122x power modes

ZIP版本 1.0Aug 9, 2013412.1 KBAN11069英语
^应用笔记
Using LPC122x ROM division routines

ZIP版本 1.0Aug 9, 2013236.8 KBAN11074英语
^应用笔记
KNX evaluation board using LPC1227 and NCN5120

ZIP版本 2.0Jul 21, 2013735.9 KBAN11231英语
^应用笔记
UUencoding for UART ISP

PDF版本 1.0Jul 6, 2012142.1 KBAN11229英语
^用户指南
LPC1224/25/26/27 User manual

PDF版本 2.1May 28, 20143.6 MBUM10441英语
^手册
Low-cost Cortex-M0 USB solutions with Smart Card interface

PDF版本 1.0Mar 31, 2011564.2 KBLPC11U00英语
^手册
Low-cost development platform for 32-bit LPC microcontroller family; NXP LPCXpresso

PDF版本 1.0Jan 28, 2011230.0 KB75016842英语
^勘误表
Errata sheet LPC1224/25/26/27

PDF版本 1.3Sep 18, 201335.0 KBES_LPC122X英语
^封装信息
plastic low profile quad flat package; 48 leads; body 7 x 7 x 1.4 mm

PDF版本 1.0Feb 8, 2016505.8 KBSOT313-2英语
^支持信息
Footprint for wave soldering

PDF版本 1.0Oct 8, 200911.2 KBHTQFP-HLQFP-LQFP-MSQFP-WAVE英语

展开

设计资源

硬件

3 硬件

^{仿真器、探测器和编程器}
Universal Multilink开发接口

UMultilink
^{仿真器、探测器和编程器}
Universal Multilink FX高速开发接口

U-MULTILINK-FX
^{评估/开发板与系统}

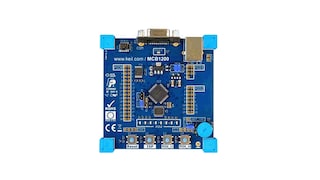

Keil LPC1227评估板
