面向汽车应用的双DSI3主收发器

SA0528 正常供应

滚动图片以放大

SA0528双DSI主收发器为安全关键型应用实现可靠、高速的主从通信。为多个拓扑进行寻址，支持点对点、菊花链和并行总线，每个通道只需要两线实施，与其他三线或四线协议相比，这是性价比更高的替代产品。SA0528的设计完全符合安全要求，是任务关键型汽车和工业应用的理想解决方案。

DSI3实现的功能包括主从双向通信的命令和响应模式、适用于高速多个从数据采集的定期数据采集模式以及面向从器件自动寻址和自编程的发现模式。

产品详情

框图

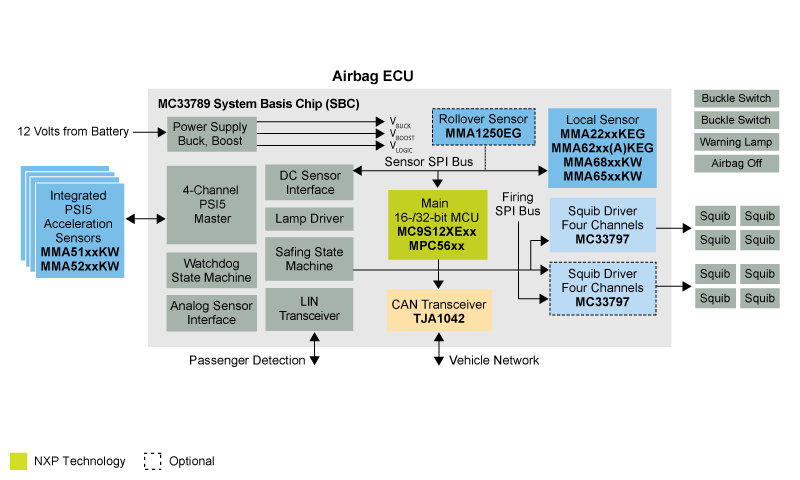

SA0528 Airbag System PSI5 Protocol

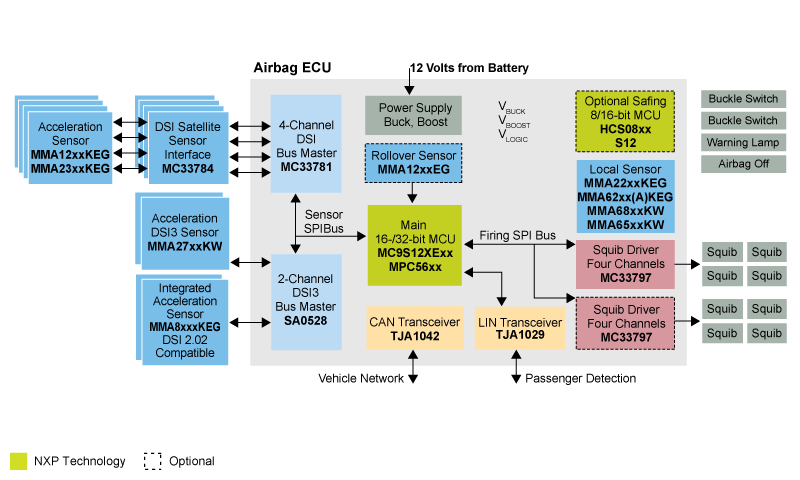

SA0528 Airbag System PSI5 Protocol
获取框图PDF

特征

  • 两个独立的DSI3主通道
  • 支持从配置的命令和响应模式
  • 支持定期数据采集模式，可定期传输从数据
  • 支持面向从物理地址自编程的发现模式
  • 10 MHz 32位双SPI
    • 用于器件配置和DSI3运行的主SPI
    • 安全的冗余SPI
  • 点对点、并行、菊花链总线拓扑
