USB-PD3.0 / QC4.0 Smart Charging Design Tool
The NXP® USB-PD3.0 / QC4.0 smart charging design tool helps you design a fast charging adapter supporting BC1.2, USB-PD3.0 and/or QC4.0 charging protocol. NXP's primary QR Flyback controller TEA1936x and secondary side synchronous rectifier controller TEA199x are very suited for a low-cost solution.

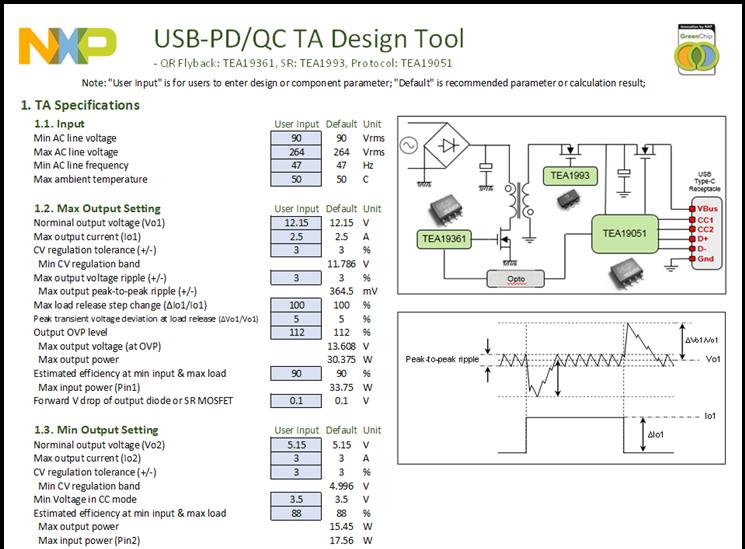

The design tool is downloadable and is able to save/print all design parameters, results and graphs automatically for post-processing or presentation purposes.
软件详情
Features
- The tool guides you step-by-step through the calculation process in order to obtain all relevant design parameters with minimum time and effort
- Once completed you will have a design overview including the summary of the calculated design parameters, the transformer winding proposal, detailed schematics, and waveforms
- The design tool calculates the complete schematics
- All results will be translated into a part list
- The tool includes knobs for fine-tuning/design optimization
