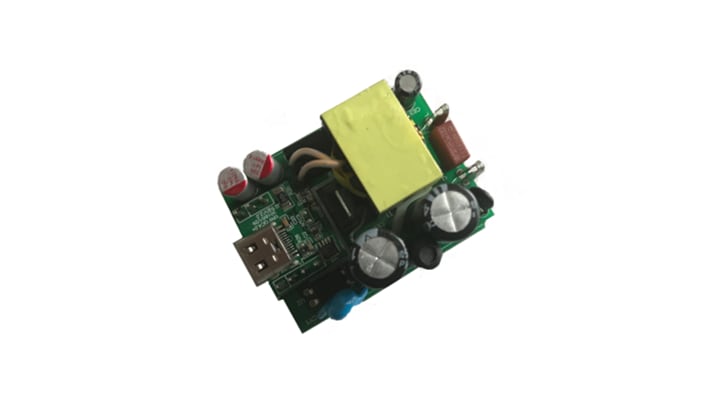

QC4.0/4.0+ 18W Mobile Charging
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。
The QC4.0/4.0+ 18W Mobile Charger enables the design of power supplies featuring low standby power with the output voltage in full regulation, very high-efficiency and high-reliability.
The NXP® chipset used is targeting mobile and notebook power supplies with power requirements up to 100W. Supplies can be designed easily and with a minimum number of external components.
产品详情
Features
The QC4.0/4.0+ 18 W Mobile Charger supports the following standards
- QC4.0 / QC4.0+
- USB PD3.0 / PPS
重要参数
| Symbol | Parameter | Value |
|---|---|---|
| Vi | Input voltage | 90 to 264 V |
| fi | Input frequency | 47 to 64 Hz |
| Vo | Output Voltages | QC4.0(+) : 3.3V... 11V / max. 3A or 18W
PD3.0: 5V/3A, 9V/2A and 12V/1.5A |
| Iout | Maximum output current | 3 A (@ 5 V), 2 A (@ 9 V), 1.5 A (@ 12 V) |
| Pout | Tput power [nominal] [peak] | 18.0 W |
| n | Efficiency [average] | > 90 % |
| Pi(noload) | No-load input power | < 30 mW |
| Tambient_adapt | Ambient temperature adapter inside casing | -40 °C to 85 °C |
| - | Energy standard | ENERGY STAR v6.0,
CoC. tier 2 |
| - | Electro Magnetic Interference (EMI) | CISPR22 compliant,
EN 55022 |
| L x B x H | Board dimensions | 48 mm x 435 mm x 20mm |
| TEA19361 | Primary Flyback Controller | |
| TEA1993 | Synchronous Rectification Controller | |
| TEA19051 | QC4.0/QC4.0+/PPS Controller |
