印刷电路板与电路图
PCB files for MC33493MOD315 and MC33493MOD434
-
印刷电路板与电路图
Schematics for MC33493MOD315 and MC33493MOD434

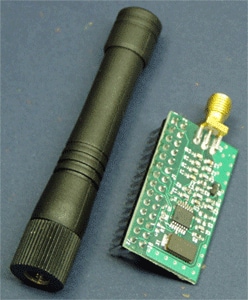

The MC33493MOD434 RF module allows a designer to develop and evaluate MC33493MOD434 receiver applications at 433.92 MHz.
To order your MC33493MOD434, please visit the Buy/Parametrics section tab. Alternatively you may purchase the board from your local NXP® distributor. For a listing of NXP distributors, please follow the Tech Support link at the top of this page.
This device has not been authorized as required by the rules of the Federal Communications Commission. This device is not, and may not be, offered for sale or lease to the public, or sold or leased to the public, until authorization is obtained. This device is available for sale only as a subassembly and only to a manufacturer who assumes responsible for obtaining any necessary FCC authorization prior to further marketing to a vendor or to a user.
Web Ref |
Frequency |
MC33493MOD315EV | 315MHz |
MC33493MOD434EV | 433.92MHz |
MC33493MOD868EV | 868.3MHz |
DEMO908AP64 | MCU Board for evaluation |
