设计文件
3 设计文件
-
模型
MCF5249 IBIS Model File
-
模型
Core Model For ColdFire Instruction Set Simulator
-
印刷电路板与电路图
USB OTG Schematics

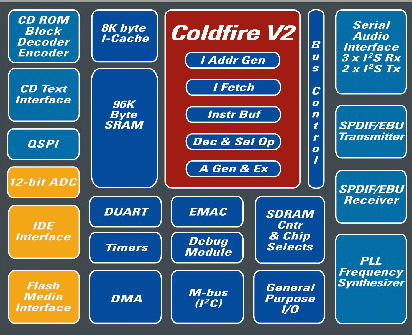

The SCF5249 microprocessor delivers a new level of performance on the popular Version 2 ColdFire® core with over 125 (Dhrystone 2.1) MIPS @ 140 MHz and the lowest ever power consumption (1.3 mW/MHz) on a ColdFire device. This highly integrated microprocessor builds upon the widely used ColdFire peripheral mix by adding new audio enhancements and analog functionality, in addition to an enhanced Multiply Accumulate Unit (eMAC), large on-chip memory (96K SRAM, 8K I-Cache), and a SDRAM controller. The device is ideal for applications requiring significant control processing for file management, data buffering, and user interface, as well as signal processing in a variety of key markets such as security, gaming, medical, and digital audio. This leading package of integration, high performance, and low power consumption allows fast time to market through access to high quality software modules, easy code reuse, and extensive third party tool support.
快速参考 文档类别.
1-5 / 14 文件
安全文件正在加载,请稍等
3 设计文件
安全文件正在加载,请稍等
3 软件文件
注意: 推荐在电脑端下载软件,体验更佳。
