带I2C总线接口的LCD直接/双工驱动器

PCF8577CT 停产
  • 建议不要在新设计中使用本页介绍的产品。

PCF8577C是一款LCD驱动器，可直接驱动最多32段或64段(双工配置)。

双线式I²C总线接口可大大降低远程显示应用中的布线开销。通过自动地址递增功能、硬件子地址和显示器内存切换(直接驱动模式)最小化多个IC应用中的I²C总线流量。为了允许部分关断VDD，SCL和SDA针脚的ESD保护系统未使用与VDD相连的二极管。

查看产品图片

产品详情

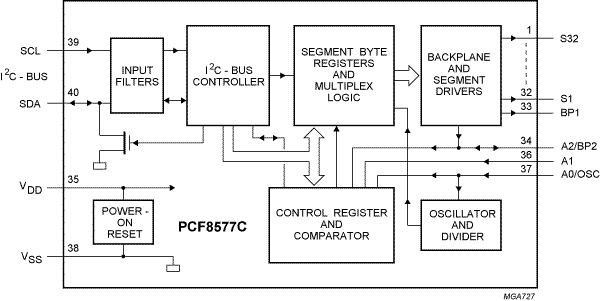

框图

PCF8577CT, PCF8577CU

获取框图PDF

特性

主要特性

  • 直接/双工驱动模式，每个器件最多有32/64个LCD段码驱动能力
  • 工作电源电压范围：2.5 V至6 V
  • 低功耗
  • I²C总线接口
  • 优化针脚配置，适合于单层接线
  • 单针脚内置振荡器
  • 器件子地址范围内自动递增加载
  • 显示存储在直接驱动模式下切换
  • 可用作I²C总线输出扩展器
  • 高达256段码的系统扩展
  • 显示上电复位消隐
  • I²C总线地址：0111 0100
