带复位功能的4通道I²C总线开关

PCA9546A 正常供应

PCA9546A是一款四路双向转换开关，通过I²C总线进行控制。SCL/SDA上游对会扇出四个下游对或通道。可选择任何单独的SCx/SDx通道或通道组合，由可编程控制寄存器的内容决定。

低电平有效的复位输入端允许PCA9546A从某个下游I²C总线停滞于低电平状态的情形中恢复过来。和内部上电复位(POR)功能一样，将RESET引脚拉至低电平也可将I²C总线状态机复位，并导致所有通道均处于未选定状态。

这些开关的传输门构造使得VDD引脚可用于限制PCA9546A传递的最大高压。这样就可以在每一对上使用不同的总线电压，从而使1.8V、2.5V或3.3V的部件无需额外保护即可与5V的部件进行通信。外部上拉电阻将总线上拉至各通道想要的电压电平。所有I/O引脚均可容许5V电压。

查看产品图片

产品详情

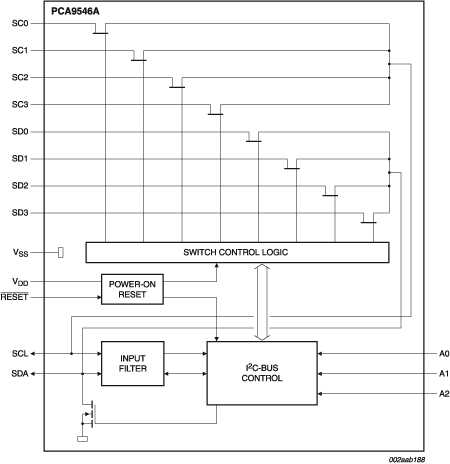

框图

选择框图:

PCA9546A

PCA9546A Block Diagram

PCA9546ABS, PCA9546AD, PCA9546APW

获取框图PDF

特性

主要特性

  • 4选1双向转换开关
  • I²C总线接口逻辑；兼容SMBus标准
  • 低电平有效的复位输入
  • 3个地址引脚，允许最多8个器件连接至I²C总线
  • 通过I²C总线以任意组合进行通道选择
  • 在所有开关通道均不选定的情况下上电
  • 低导通电阻开关
  • 允许在1.8V、2.5V、3.3V和5V总线之间进行电压电平转换
  • 上电时无脉冲干扰
  • 支持热插入
  • 低待机电流
  • 工作电源电压范围：2.3V至5.5V
  • 容许5V输入
  • 0Hz至400kHz的时钟频率
  • ESD保护：按JESD22-A114超过2000V HBM，按JESD22-C101超过1000V CDM
  • 根据JEDEC标准JESD78完成超过100mA的闭锁测试

封装方式

  • SO16、TSSOP16和HVQFN16
