SJA1110-EVM Evaluation Board

SJA1110-EVM

滚动图片以放大

The SJA1110-EVM is an evaluation board for the SJA1110 automotive Ethernet switch.

The board includes two SJA1110A switches and it enables the evaluation of all supported features including AVB, TSN and the control of two switches in cascaded configuration. It is compatible with the SJA1110 software development kit (SDK) and the optional AVB/gPTP middleware (available separately).

The board offers 13x 100BASE-T1 PHYs, all compatible with OPEN Alliance TC10 wake-up forwarding. It also offers 1x 100BASE-TX and 1x 1000BASE-T PHYs with RJ45 connector, as well as three generic SFP and SFP+ connectors for external multi-gig PHYs.

Finally, the SJA1110-EVM board supports the SABRE connector capable of mating with NXP® processors and controller motherboards such as i.MX and S32x processors families.

支持的器件

接口

汽车以太网交换机

  • SJA1110: 内置100BASE-T1 PHY的多Gig安全TSN以太网交换机

汽车以太网PHY

  • TJA1101: TJA1101B，符合IEEE 100BASE-T1的汽车以太网PHY收发器

电源管理

安全SBC

  • VR5510: 面向S32G处理器的多通道(9)PMIC - 8个高功率、1个低功率，适合ASIL D的安全等级

Features

General

  • Connects directly to PC via USB
  • Connects to i.MX and S32x processor evaluation boards
  • Enables fast prototyping of ECUs
  • Show all features of SJA1110 series
  • OPEN Alliance TC10 wake-up forwarding
  • Cascaded switch configuration
  • 3x SFI and SFI+ connectors for up to 2.5 Gbps PHYs

购买选项

SJA1110-EVM-V2-Image

点击展开

  • SJA1110-EVM-V2

  • SJA1110-EVM Evaluation Board.

  • The SJA1110-EVM is only available for purchase for approved customers.
    Each order will be reviewed prior to being fulfilled.
    We apologize for any experienced inconvenience as a result of this approval process.

    Evaluation board, SJA1110 Ethernet switch

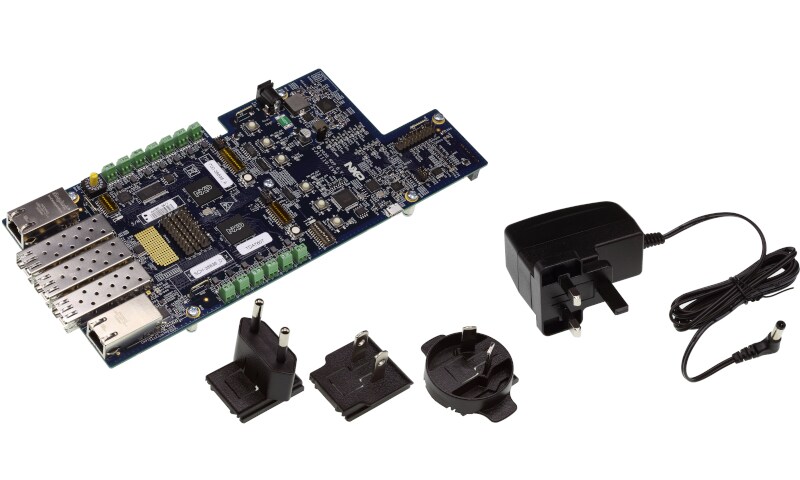

    • Assembled and tested SJA1110-EVM in an anti-static bag
    • Power AC-DC adapter, 12 VDC @ 1 A, 5.5 x 2.1 (mm) output connector, with four interchangeable plugs
    • Subscription card

    Note: An NDA is required in order to access the SJA1110-EVM documentation.
