多媒体应用处理器 - 电源管理单元，Arm9™内核

i.MX233 正常供应

i.MX233应用处理器具有充足的扩展空间，可容纳各种消费电子和嵌入式应用，但不影响电池使用时间

  • 不再需要外部组件，降低了整体系统的物料成本
  • 整合先进的电源管理技术，管理处理器本身所需的上电时序
  • 提供低功耗特性，可提升能效
  • 以强大的支持工具为后盾，在更短时间内设计出别具一格的产品

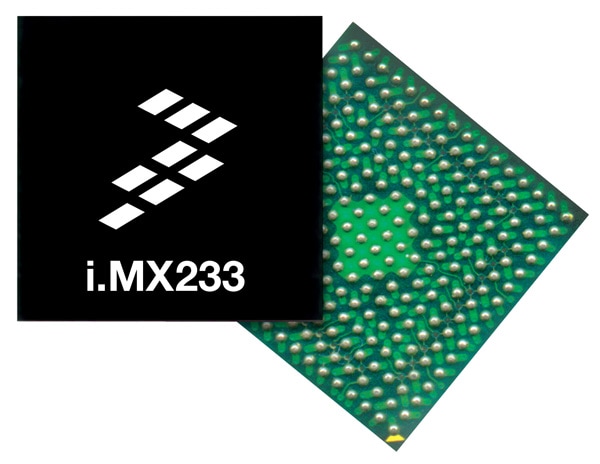

查看产品图片

产品详情

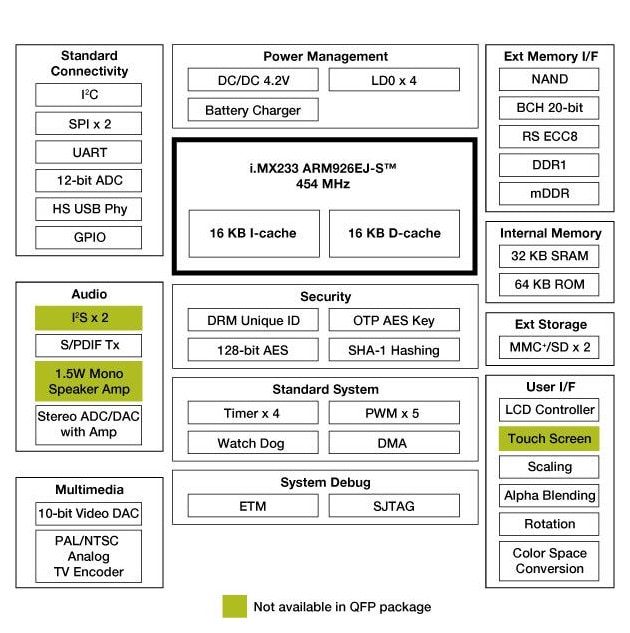

框图

i.MX233 Multimedia Applications Processor Block Diagram

i.MX233 Multimedia Applications Processor Block Diagram
获取框图PDF

特征

  • Arm926EJ-S™，最大速度为454 MHz
  • 16 KB I/D 缓存
  • 电源管理单元(PMU)
  • 混合信号音频
  • LCD控制器
  • HS 器件/主机 + PHY
  • 3个UART
  • 两个SSP
  • I2C控制器
  • 6通道12位低分辨率ADC(LRADC)
  • 2个串行音频IF
  • SPDIF
  • 外部存储器接口：
    • 1.8V mDDR，DDR1 带2.5V稳压器
    • 硬件BCH (高达20位校正)和RS ECC8
    • 用于SLC/MLC和可管理NAND的NAND闪存支持
  • 本产品包含在我们的产品长期供货计划中，自推出后至少保证10年供货
