产品详情

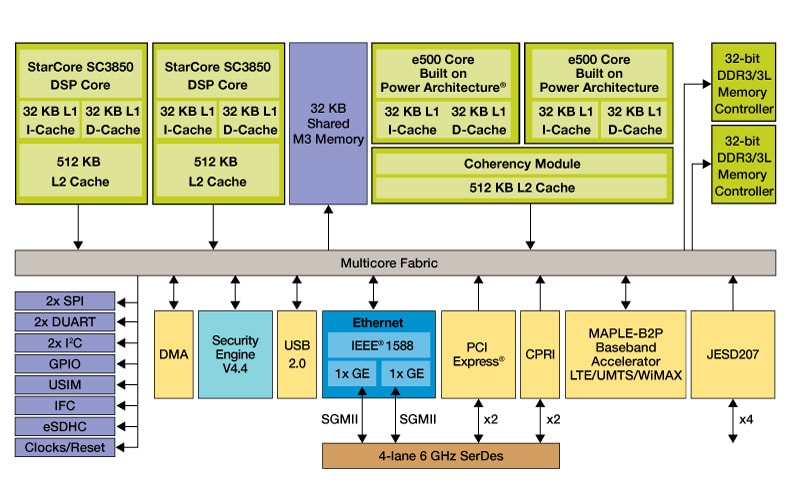

框图

BSC9132 BD

获取框图PDF

特征

Power Architecture子系统包括两个e500处理器，带512KB共享L2缓存
两个StarCore^® SC3850 DSP子系统，每个子系统具备512KB专用L2缓存
MAPLE-B2P多重加速器平台引擎所支持的功能可满足LTE-FDD/TDD、WiMAX、WCDMA/HSPA+无线标准，还支持包括FFT、DFT和Turbo Viterbi编码在内的常用DSP功能
两个DDR3/3L存储器接口，32位数据宽度(40位含ECC)，最高数据传输速率为1333MHz
集成安全加速(SEC)
可信架构安全引导
两个支持JESD207 (ADI)的射频接口
支持MaxPhy接口(Maxim)
两个具有网络加速功能的三速千兆以太网控制器，包括两个SGMII端口，从硬件上支持IEEE 1588^™ v2
USB 2.0主机和设备控制器
两个DUART，两个SPI和两个I2C控制器
四通道SerDes PHY支持以下多路复用：
- 两个通用公共无线接口(CPRI)控制器通道
- USIM接口
