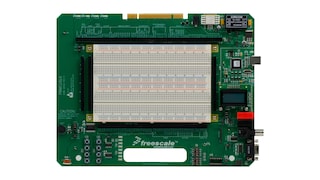

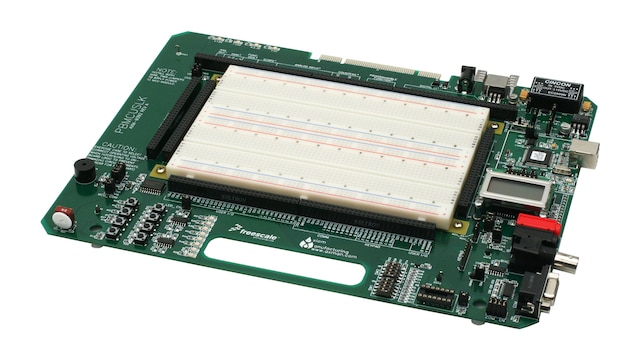

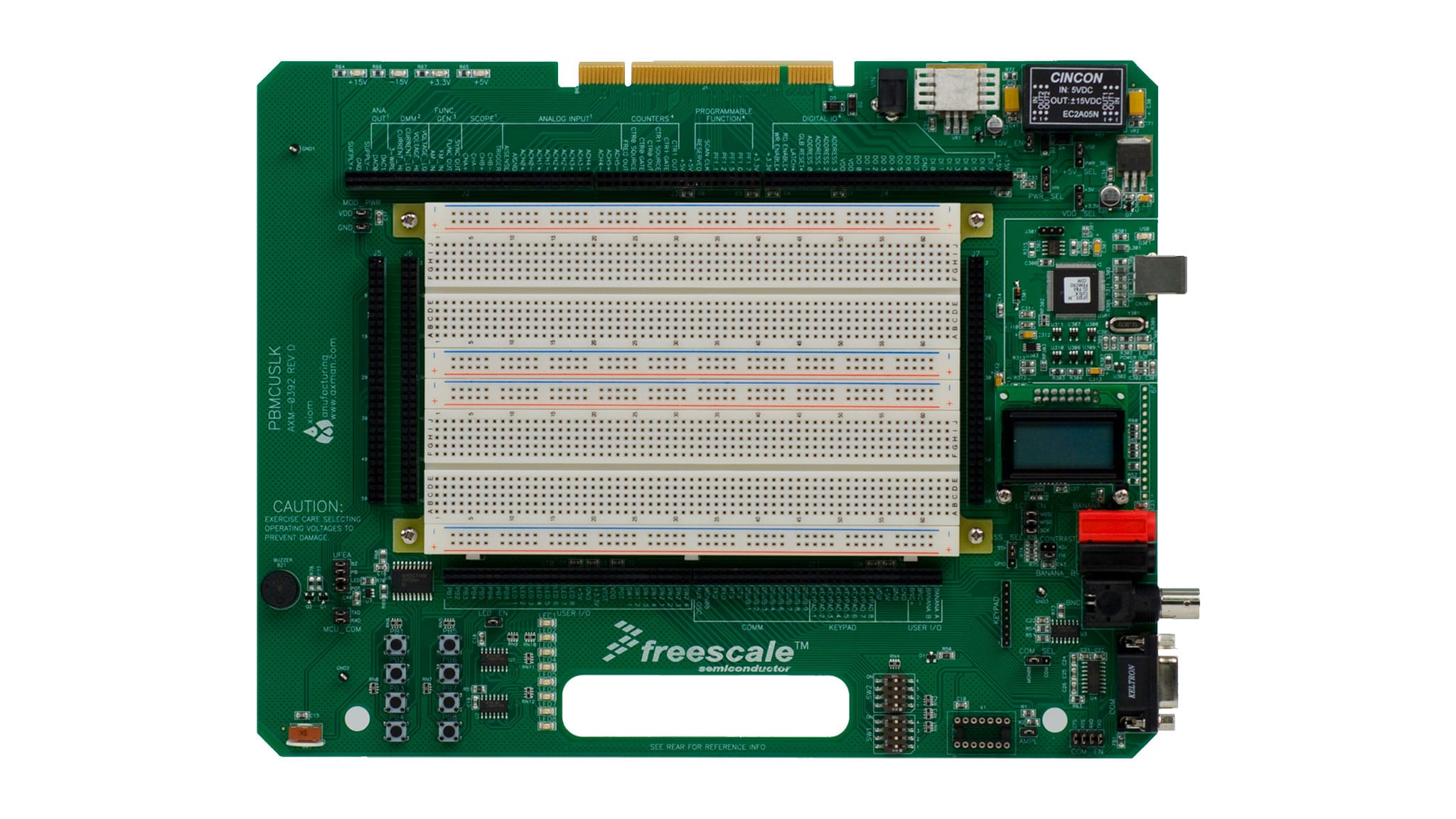

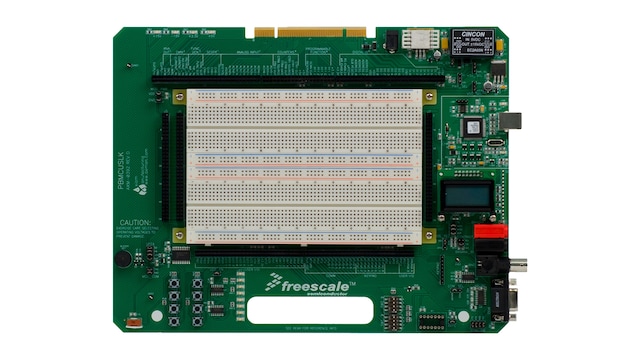

MCU Project Board

PBMCUSLK

滚动图片以放大

产品详情

选择区域:

Features

General

  • Large, solderless breadboard area with four power distribution strips
  • Integrated HCS12/HCS12X/S08 USB programmer
  • PCI style card-edge connector designed for use with National Instrument's NI-ELVIS platform
  • Signal and module breakout arranged logically around breadboard area

Connectivity

  • Full access to all I/O via breakout headers
  • 2 Banana Connectors
  • 1 BNC Connector
  • LCD Module interface with Serial to Parallel Shift Register
  • 8-pin Keypad connector
  • 9-pin DSUB connector
    • RS-232
    • MON08
  • Socket for Optional Crystal Oscillator
  • 8 Active-High DIP Switches
  • 1 Single-turn, 5k ohm, User Potentiometer
  • 8 Active-High Green LED's, Buffered
  • 8 Active-Low Push-Button Switches
  • 1 Buzzer

Power Management

  • Power Input: +9V @ 1.2A typical
  • Power input from included wall-plug transformer, integrated USB-BDM, or from NI-ELVIS workstation
  • On-board voltage regulators provide four different voltage levels:
    • 5VDC @ 500mA
    • 3.3VDC @ 500mA
    • +15VDC @ 50mA
    • -15VDC @ 50mA
  • (± 15V not available when powered from USBBDM)
  • Internal current limit prevents short-circuit damage
  • LED indicators for each voltage level
  • User selectable voltage to onboard logic devices
  • Option jumper to enable voltage output to MCU port connector

Size

  • Module Size: 8.5" x 11"
