Getting Started with the KITVR55-FSSKTEVM

2.1 Board features

• VBAT power supply connectors (Jack and Phoenix)
• VPRE output capability up to 1.0 A (socket limit) 3.3 V / 3.8 V / 4.1 V / 5.0 V
• VBUCK1/2 in Standalone mode (default) or Multiphase mode
• VBUCK3
• VBOOST 5.0 V or 5.74 V, up to 800 mA
• LDO1 and LDO2, from 1.1 V to 5.0 V, up to 400 mA
• Ignition key switch
• Embedded USB connection for easy connection to software GUI (access to I2C-bus, IOs, RSTB, INTB, Debug, MUX_OUT, regulators)
• LEDs that indicate signal or regulator status
• Support OTP fuse capabilities
• USB connection for register access, OTP emulation, and programming
• Voltage monitoring jumper setting

2.2 Board Description

The KITVR55-FSSKTEVM provides flexibility to play with all the features of the device and make measurements on the main part of the application. The KL25Z MCU installed on the board, combined with the FlexGUI software allows access to the registers in read and write mode. All regulators are accessible through connectors. Nonuser signal, like DC-to-DC switcher node is mapped on test points. Digital signals (SPI, I²C, RSTB, etc.) are accessible through connectors. Pin WAKE1 has a switch to control (ignition) them. A VBAT switch is available to power on or off the device.

The main purpose of this kit is to burn the OTP configuration. This kit can be operated in Emulation mode or in OTP mode. In Emulation mode, as long as the power is supplied, the board configuration stays valid. The OTP mode uses the fused configuration. The device can be fused three times. In OTP mode, the device always starts with the fused configuration, except if the user wants to overwrite OTP configuration using Emulation mode. This board is able to fuse the OTP without any extra tools or board.

Note: Due to the socket, this kit is not optimized for performance measurement or current higher than 1.0 A.

2.3 Board Components

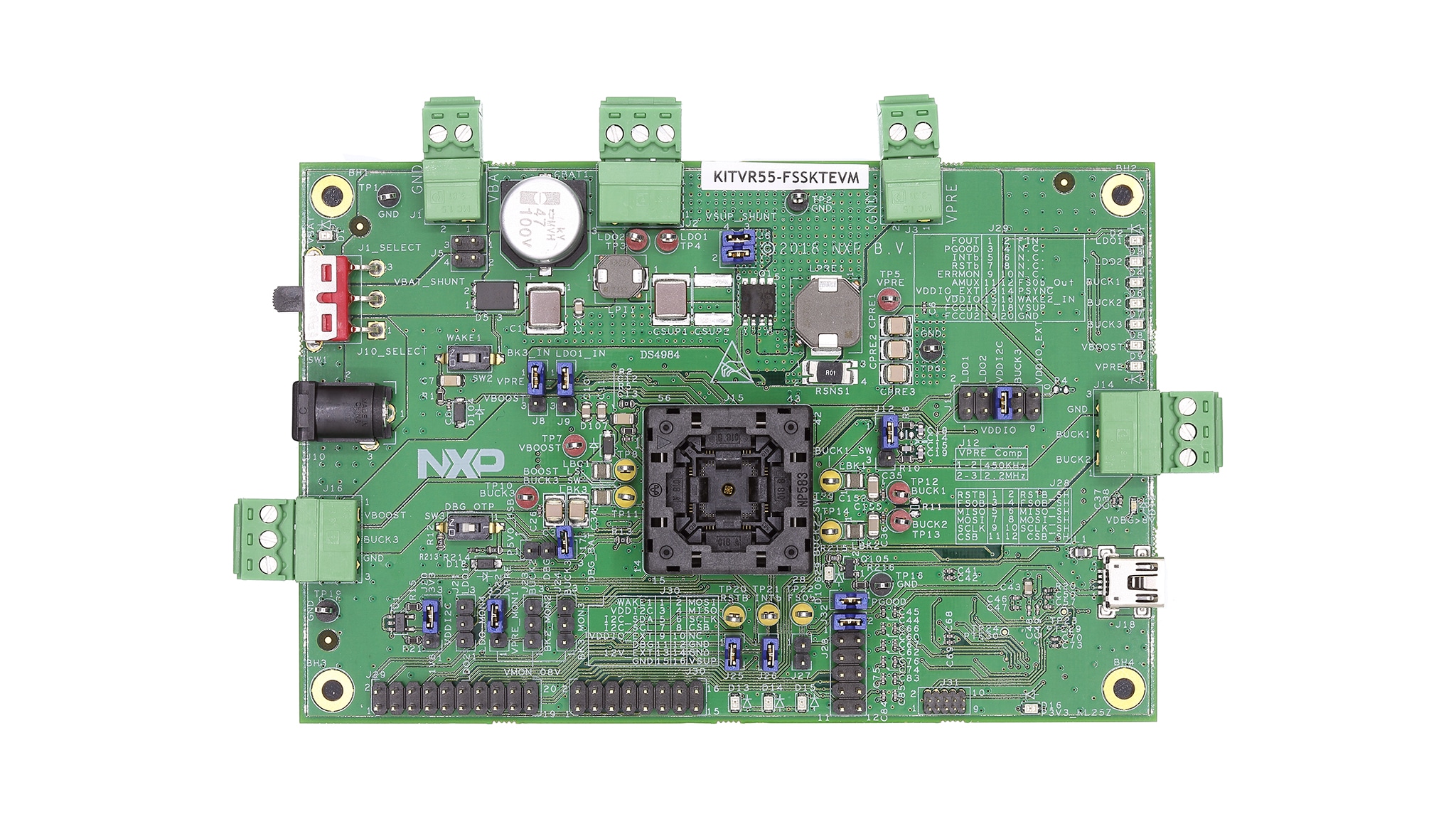

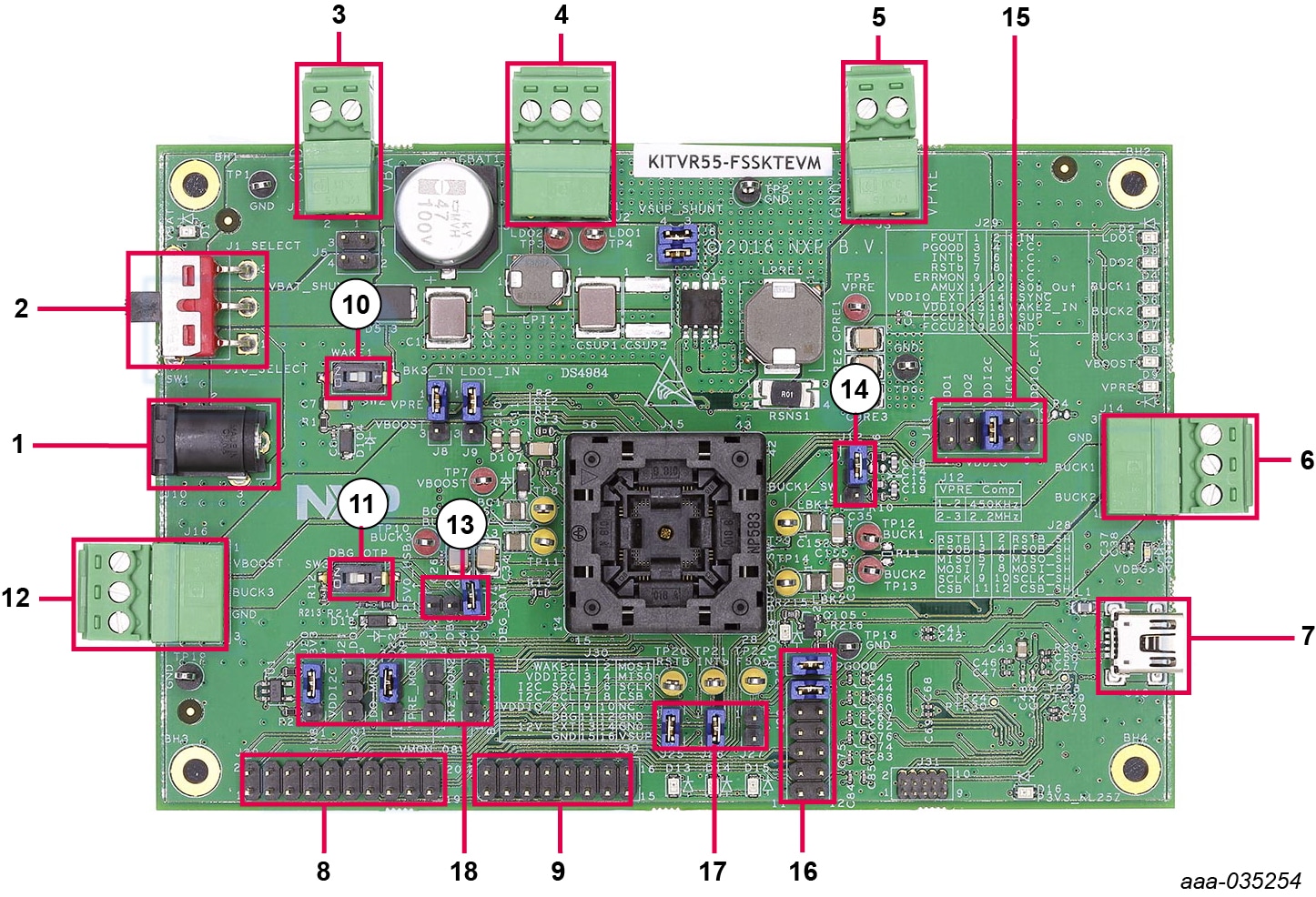

Overview of the KITVR55-FSSKTEVM evaluation board

1. VBAT Jack connector
2. VBAT three position switch
3. VBAT Phoenix connector
4. LDO1/LDO2 power supplies
5. VPRE power supply
6. BUCK1/BUCK2 power supply
7. USB connector (for FlexGUI control)
8. Debug connectivity
9. Programming
10. WAKE1 switch
11. OTP burning voltage switch
12. VBOOST and BUCK3 power supply
13. Debug voltage source
14. Compensation network selection
15. VDDIO selection
16. RSTB connection to MCU
17. RSTB and INTB signals
18. VMON1 and VDDI2C selection

To configure the hardware, complete the following procedure:

1. Install jumpers for the configuration

   Table 1. Jumper configuration

   Jumper	Configuration
   J17	connect 1-2 (connect 5.0 V on DBG pin from the USB)

2. Configure switches

   Table 2. Switch configuration

   Switch	Configuration
   SW1	middle position (VBAT off)
   SW2	open (WAKE1)
   SW3	open (OTP programming off)

3. Connect the Windows PC USB port to the KITVR55-FSSKTEVM development board using the provided USB 2.0 cable
4. Set the DC power supply to 12 V and current limit to 1.0 A. With power turned Off, attach the DC power supply positive and negative output to KITVR55-FSSKTEVM VBAT Phoenix connector (J1)
5. Turn on the power supply
6. Close SW2

Note: At this step, the product is in debug mode and all regulators are turned Off. The user can then power up with OTP configuration or configure the mirror registers before power up. Power up is effective as soon as J17 jumper is removed.

4.1 Prepare Graphical User Interface Operating Environment

Download and run the software .

4.2 Install FlexGUI Software Package

The FlexGUI software does not require any installation. Unzip the folder contents to a desired location on your computer.

1. If necessary, install the Java JRE (Java SE Runtime Environment) available at JRE8 downloads and Windows 7 FlexGUI driver
2. Download the latest FlexGUI (32-bit or 64-bit) version, available at VR5500 Safety SBC Programming Board
3. Run the flexgui-app-vr5500-fs5502.exe file
4. Restart the computer after successful download
