Get Started with the ADTJA1101-RMII

This page will help guide you through the process of learning about your ADTJA1101-RMII board.

2. Get to know the hardware

2.1 Board features

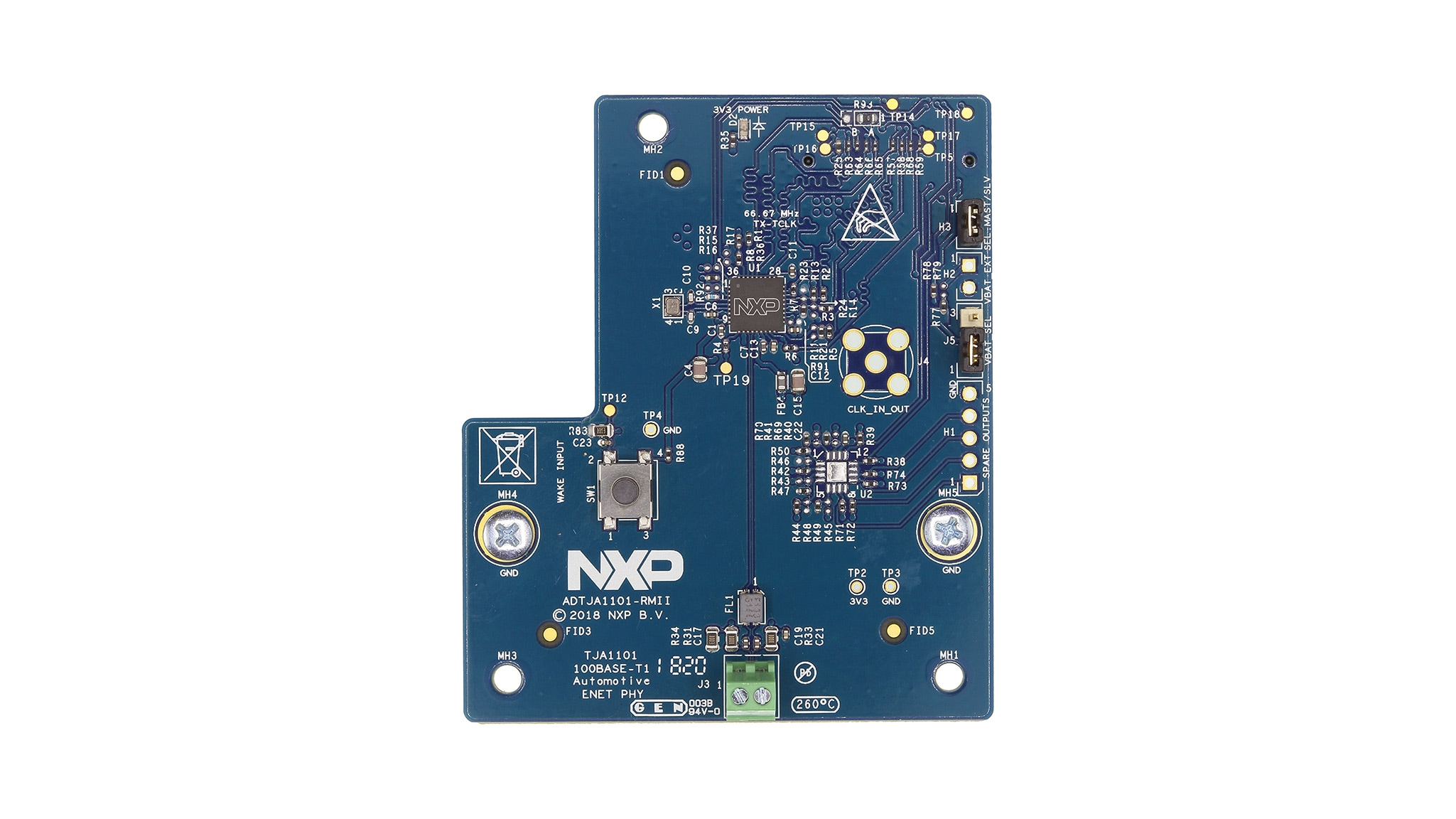

The ADTJA1101-RMII adapter board evaluates the NXP part TJA1101, including all functions. The board features the following:

  • Adapter for example, S32K148 and i.MX8
  • Simple automotive Ethernet system setup for prototype applications
  • Quick functional evaluation of TJA1101
  • 100BASE-T1 connectivity at ECU prototyping stage
  • Simple chip configuration
  • Chip status report via onboard LEDs
  • Unshielded twisted-pair cable provided in the box
  • Screw connector for simple cable assembly
  • Config pin strapping by jumper settings
  • SABRE connector to host controller MII

2.2 Board description

The ADTJA1101-RMII board is an easy-to-use adapter board, allowing the user to add 100BASE-T1 automotive Ethernet connectivity to host controllers on compatible controller cards. The TJA1101 PHY transceiver is mounted to the adapter card and connects to the RMII interface of the host controller via SABRE connector.

Power supply and component configuration are provided and managed by the microcontroller (MCU) on the host evaluation board. The ADTJA1101-RMII connects to link partners via an automotive grade unshielded twisted-pair cable.

2.3 Board components

The ADTJA1101-RMII adapter board features the TJA1101, an IEEE 100BASE-T1 compliant Ethernet PHY. This adapter board is used with a host controller board, like SK32148EVB, or other optional support boards.


2.4 Additional board support

Refer to ADTJA1101-RMII - User Guide user manual for additional details on the featured components.

3. Configure the hardware

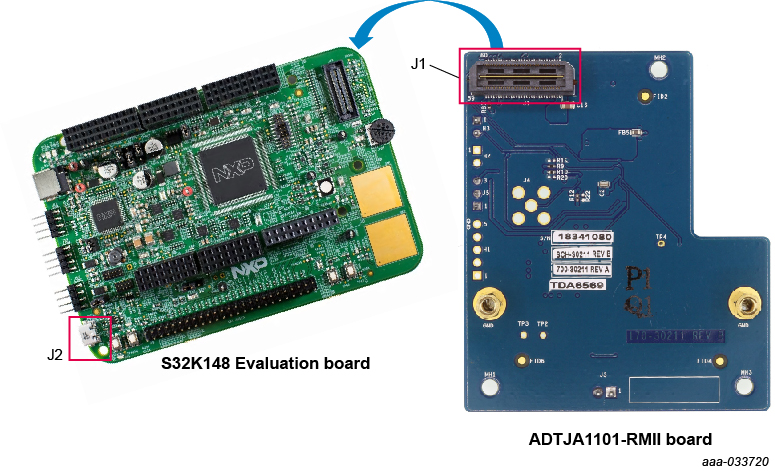

The ADTJA1101-RMII connects to the S32K148 evaluation board using the SABRE connector J1 on the bottom of the board.

The S32K148 evaluation board was chosen specifically to work with the ADTJA1101- RMII kit because it is a low-cost evaluation platform and development system for quick application prototyping and demonstration of the S32K148 MCU belonging to the S32K series of ultra-reliable microcontrollers.

Additional configurations for the ADTJA1101-RMII connected to the SJA1105Q-EVB and the SJA1105SMBEVM are illustrated in the ADTJA1101-RMII User Manual.


To configure the ADTJA1101-RMII for use with the S32K148, complete the following procedure:

  1. Connect the ADTJA1101-RMII to the S32K148 using the SABRE connectors on each board.
  2. Connect the USB cable (not supplied with the kit) between the PC and the S32K USB port on the S32K148 board.
  3. The S32K148-EVB evaluation board powers from a USB or external 12 V power supply. By default USB power is enabled with J8.
  4. Connect the USB cable to a PC using supplied USB cable.
  5. Connect other end of USB cable (microUSB) to mini-B port on S32K148EVB at J24.
  6. Allow the PC to automatically configure the USB drivers if needed.
  7. Debug is done using OpenSDA through J2.

3.1 Additional board support

Refer to ADTJA1101-RMII - User Guide user manual for additional details on the hardware configuration.

3.2 TC10 starter kit configuration

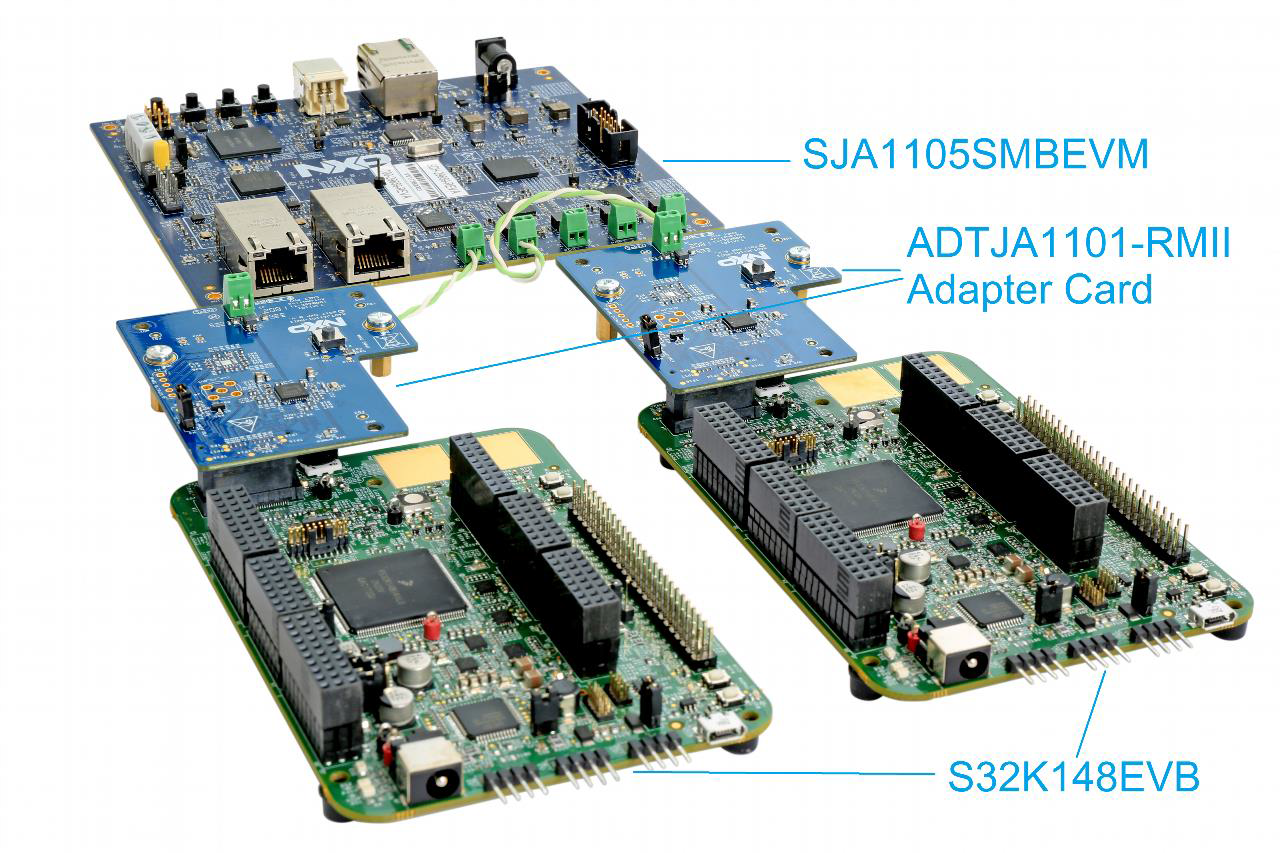

To use the card in the context of TC10 starter kit configuration, the following components are required: up to four satellite nodes, consisting of S32K148EVB and ADTJA1101-RMII adapter card, can be connected to a central node: the SJA1105SMBEVM Gateway Prototyping Platform. These components, allow the user to quickly bring up system level sleep and wake-up forwarding scenarios, which are predefined and ready to load from the software development kit of S32K148EVB.

The TC10 starter kit demonstrates the OPEN Alliance TC-10 compliant wake-up and sleep capabilities of the 100BASE-T1 PHY products TJA1101 and TJA1102. It also provides different ways to exploit these capabilities in own implementations and provides the hardware test bed for prototypical implementations.

starter kit

3.3 Additional TC10 starter kit support

When using the TC10 starter kit configuration, refer to the AH1805TC10 Starter Kit Application Hint. The application hint explains how to setup a system to evaluate the TJA1101 and TJA1102 product features in a system context.

AH1805 also explains the usage for predefined software examples, which are available with the Software Development Kit (SDK) of the respective host controller.

4. Install software

4.1 Preparing graphical user interface operating environment

The configuration of ADTJA1101-RMII is handled by the host controller on the mated evaluation board.

First, download and run the SDK for the selected host controller (for example, S32K148EVB SDK).

The full TJA110x driver set is supported by the S32K148EVB Software Development Kit (SDK).


4.1.1 TJA110x driver pre-integration with S32K SDK

This section describes the driver selection for TJA110x.

  • Single driver for TJA110x supports TJA1100, TJA1101, and TJA1102(S)
  • Support for generic PHY devices using IEEE registers
  • Extended with automotive features
    • Support for managed and autonomous mode
    • Leader/follower configuration
    • Cable test
    • LED, loopback, and test modes
    • Sleep and wake-up
  • Implements polling of interrupt status register
    • Warning about and reaction to failure conditions

4.2 Additional board support

4.3 Ready to use

Start embedded application development.

5. Learn more

5.1 Product summary page

The product summary page for TJA1101 is at

5.2 Tool summary page

The tool summary page for ADTJA1101-RMII adapter board is at ADTJA1101-RMII.

The page provides overview information, technical and functional specifications, ordering information, documentation, and software. The Get Started provides quick- reference information applicable to using the ADTJA1101-RMII board, including the downloadable assets.

5.3 References

In addition to our TJA1101: Ethernet PHY Transceivers page, you may also want to visit:

Product pages:

Tool pages:

Support pages:

Application pages:

Hardware pages:

Software pages:

5.4 BUY the board

ADTJA1101-RMII: Automotive Ethernet Adapter for S32K148EVB
