产品详情

特征

用户组件

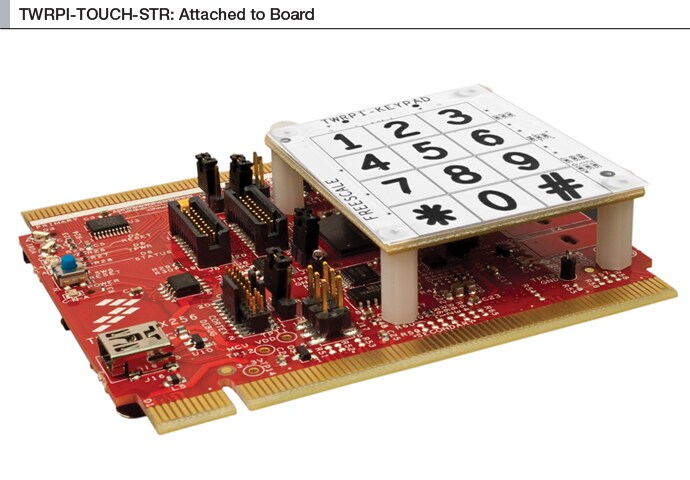

TWRPI-TOUCH-STR包括一个独立的非复用转轮触摸板接口、一个传统的12键键盘接口、一个通过I2C管理触摸板接口并与主机MCU进行通信的MPR121以及与MCU配套使用的带有上拉电阻器的TSS电路板

TWRPITSS-Sliders提供一个线性模拟滑块，该滑块由两个电极构成，并辅以提供其他功能的单个电极，第二个电路板是由4个电极构成的圆形模拟滑块。提供一个中心电极，支持额外的功能。
TWRITSS-SHIELD包含两个带不同屏蔽布局的电路板。
Compatible with the Tower^® System modules with touch sense andtouch pad tower plug-in (TWRPI) sockets
提供三套不同的插件套件：TWRPI-TOUCH-STR、TWRPITSS-Sliders和TWRPITSS-SHIELD

购买选项

TWRPI-TOUCH-STR
Tower System, Plug-In, Capacitive Touch Starter Kit, use w/Tower System Modules w/TWRPI Sockets.
- TWRPI-MPR121
- TWRPI-TSS
- TWRPI-ROTARY
- TWRPI-KEYPAD
- 快速入门指南文档

CNY567.42
数量为 1

从分销商处购买

Distributor Name	地区	库存	库存日期

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

TWRPITSS-SLIDERS
TWRPITSS-Sliders.

CNY652.53
数量为 1

从分销商处购买

Distributor Name	地区	库存	库存日期

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

TWRPITSS-SHIELD
TWR PI FOR MCU SHIELD.

CNY569.93
数量为 1
- 供货情况: 缺货

从恩智浦处购买从分销商处购买

Distributor Name	地区	库存	库存日期

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

文档

快速参考文档类别.

1 文件

^{快速参考指南}
TWRPI-TOUCH-STR Quick Start Guide亮点

PDF版本 0Aug 11, 2011561.9 KBTWRPISTRQSG英语

设计资源

设计文件

1 设计文件

^{印刷电路板与电路图}
TWRPI-TSS Schematics

PDF版本 AAug 11, 2011 00:00:0049.2 KBTWRPITSS_SCH

下载

软件

1 软件文件

^库
Touch Sensing Software Suite installer 2.6

EXE版本 2.6Apr 2, 2012 00:00:0034.0 MBFSLTSSLIB_2_6_0

下载

注意: 推荐在电脑端下载软件，体验更佳。
