PF09 Power Management IC Evaluation Board

KITPF09FRDMEVB
正常供应

滚动图片以放大

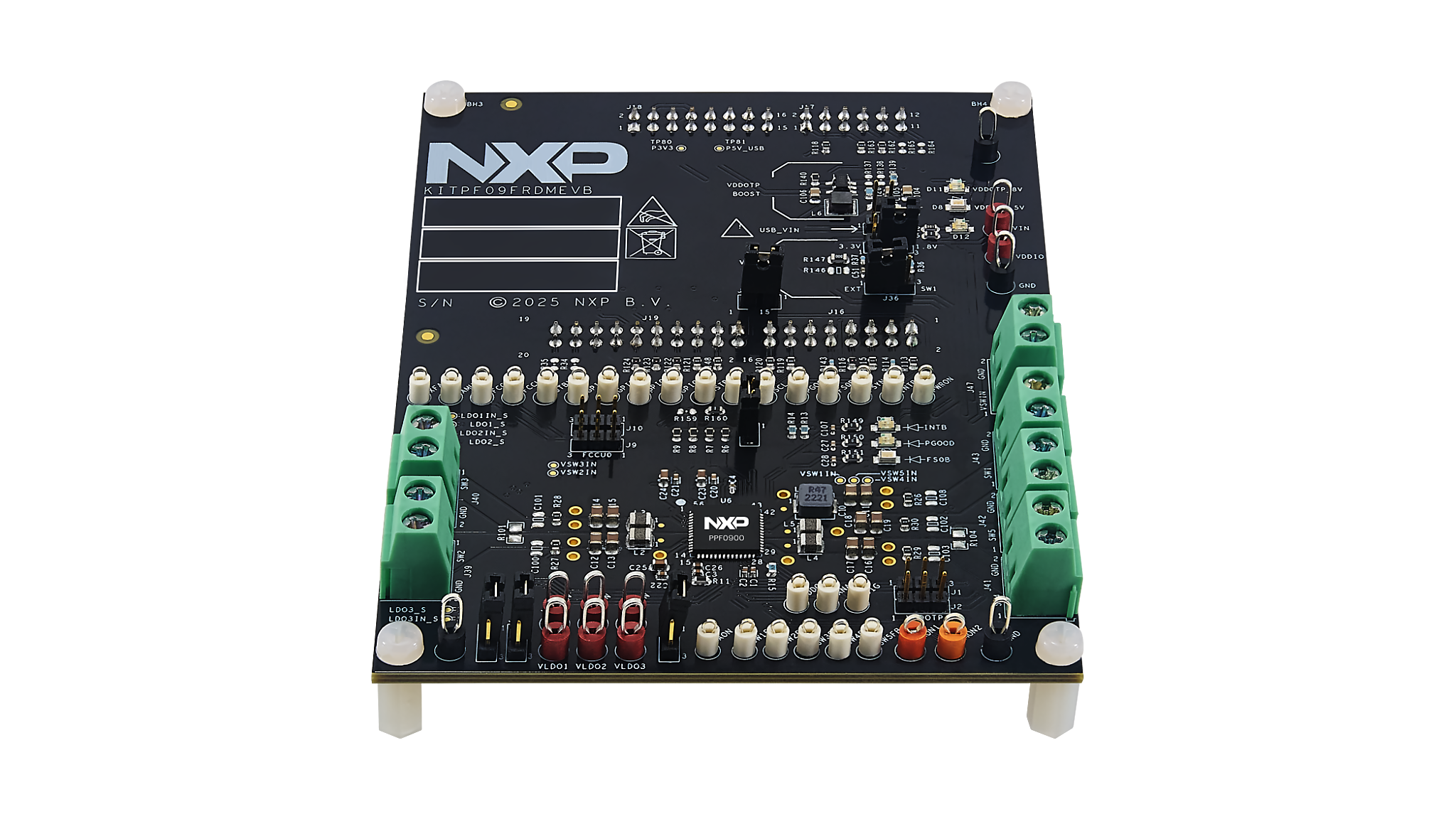

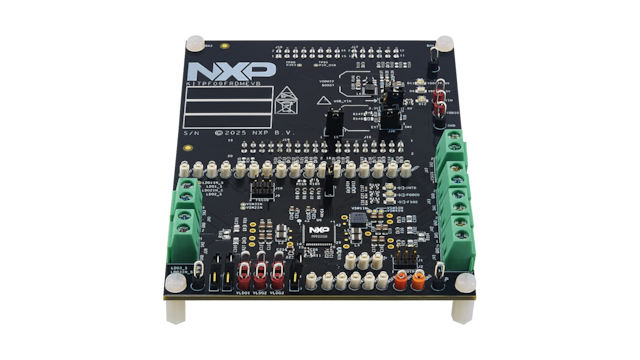

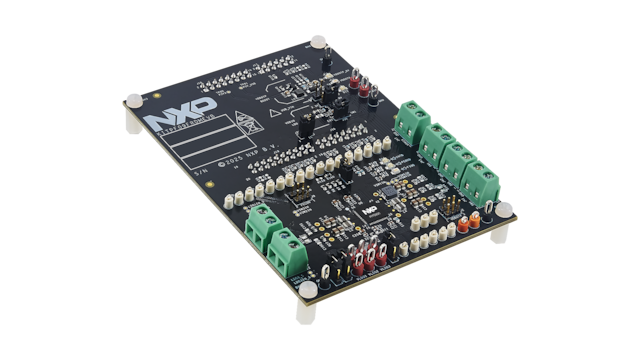

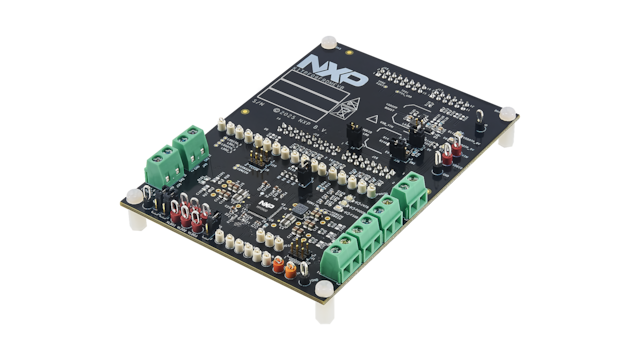

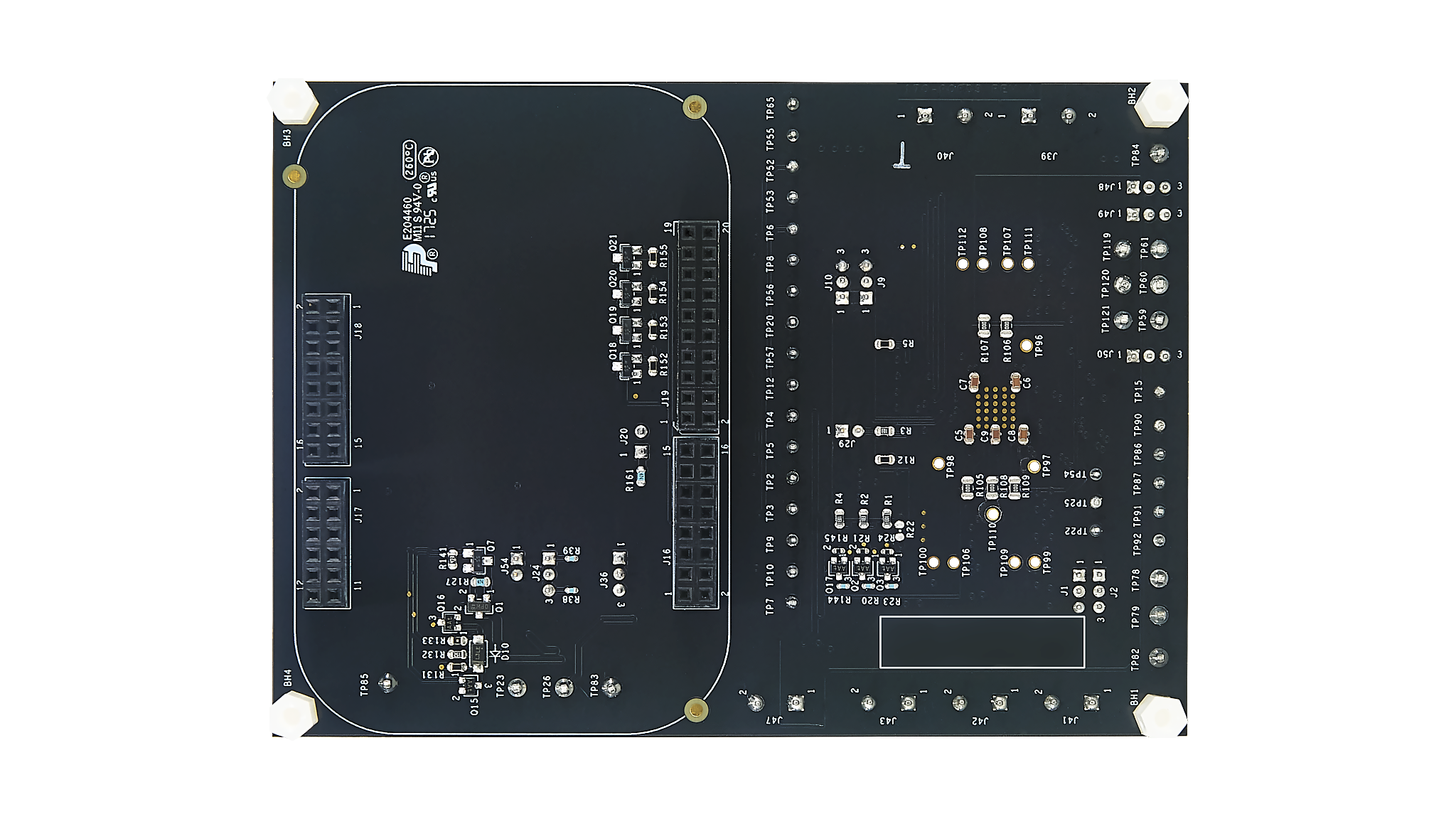

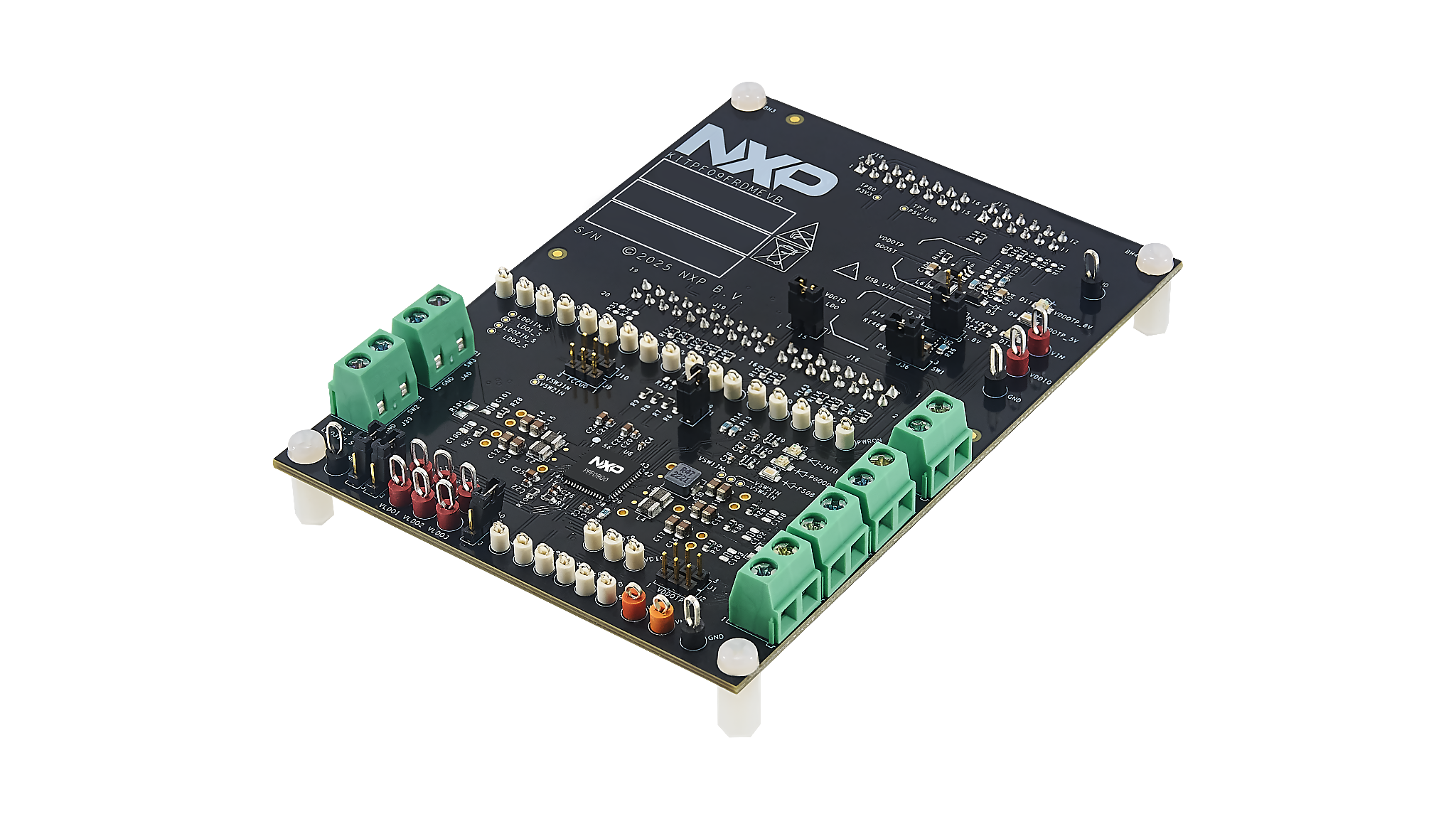

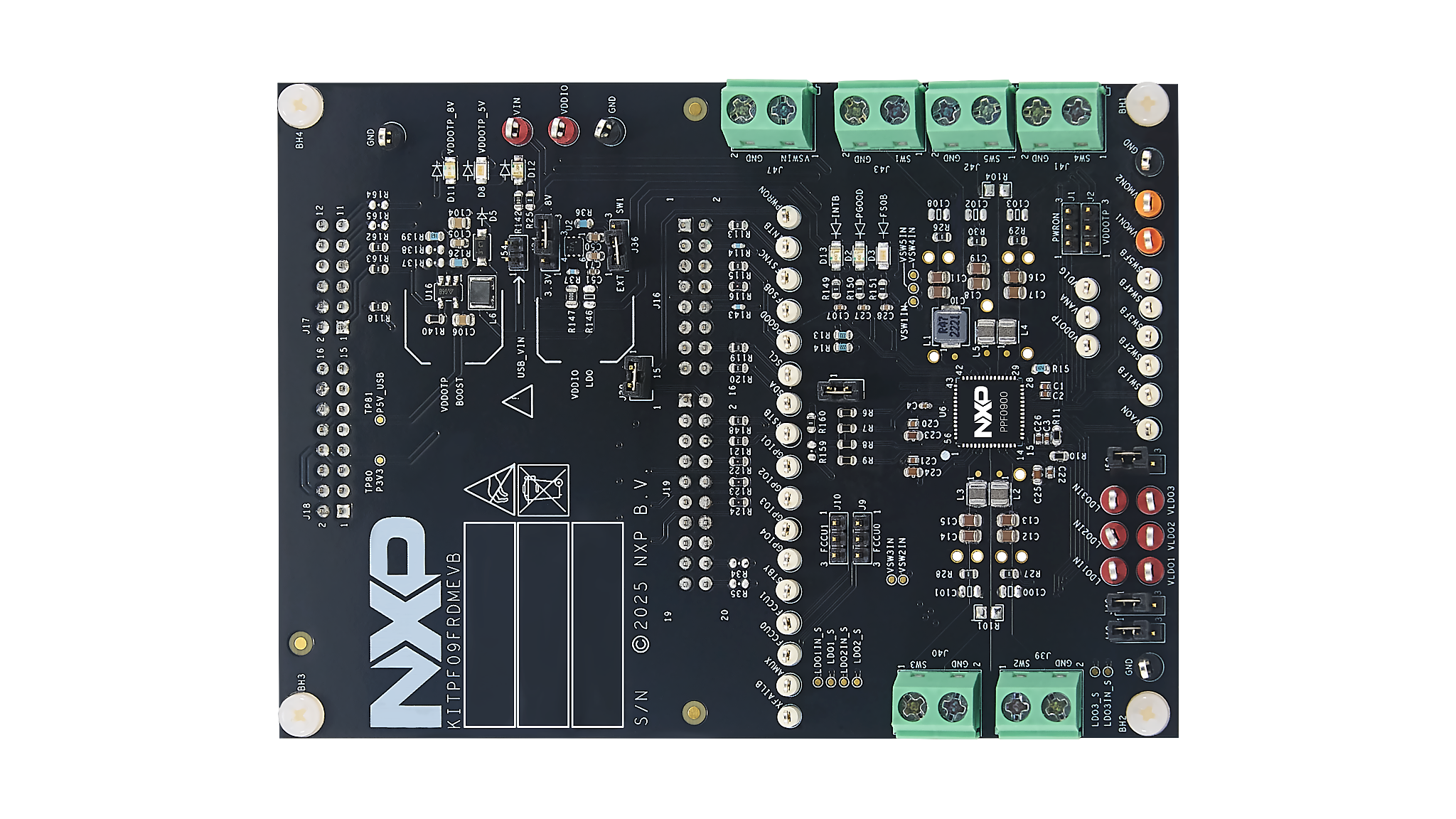

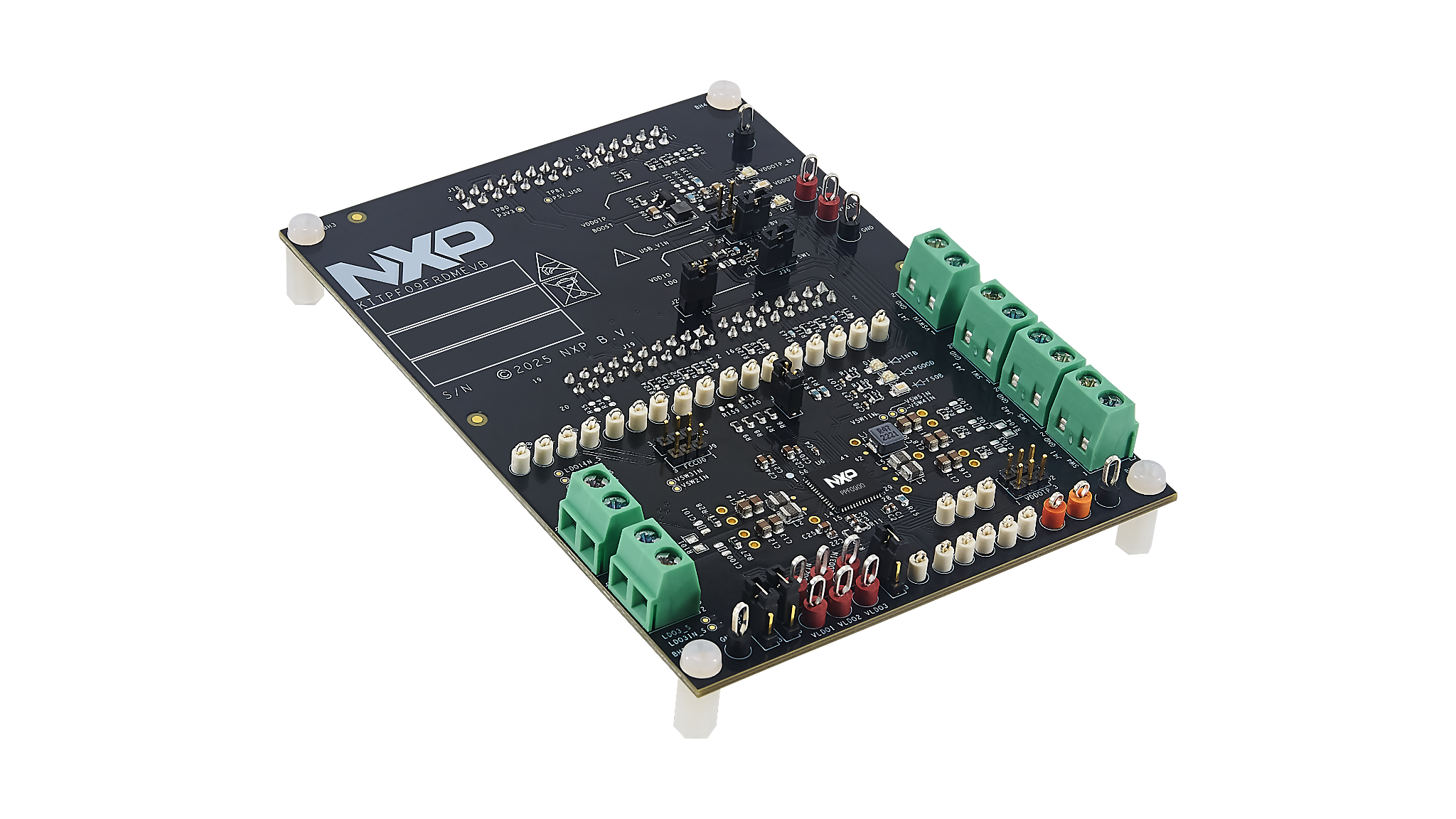

The KITPF09FRDMEVB is a customer evaluation board featuring the PF09, a Nine-channel power management IC with advanced system safety monitoring. The kits integrate all hardware needed to fully evaluate the featured power management-integrated circuit. It integrates a communication bridge based on the FRDM-KL25Z development board to interface with the GUI software interface to fully configure and control the PF09 PMIC.

框图

KITPF09FRDMEVB

KITPF09FRDMEVB Block Diagram
获取框图PDF

支持的器件

电源管理

5V PMIC解决方案

  • PF09: 面向高性能应用的9通道PMIC，符合ASIL D和SIL 2安全等级

Features

System Features

  • 2.7 V to 5.5 V operating input voltage range
  • USB to I²C communication via the FRDM-KL25Z interface
  • High Speed I²C communication up to 3.4 MHz
  • Selectable hardwire default PMIC configuration and OTP operation
  • Multi-channel analog multiplexer for system voltage monitoring
  • Advanced frequency management with frequency spread spectrum
  • Advanced thermal monitoring and thermal shutdown protection
  • Functional safety architecture to target up to ASIL D automotive applications
  • Functional safety architecture to target up to SIL 2 industrial applications

PMIC Features

  • Up to five switching regulators, four with multiphase capability
  • Three low-dropout linear regulators with load switch operation
  • One Always-On regulator with selectable operation output voltage
  • Programmable output voltage and current limits
  • Programmable switching frequency with selectable frequency spread spectrum
  • Two external voltage monitoring inputs
  • Programmable I/O interfacing pins
  • System watchdog monitoring

购买选项

KITPF09FRDMEVB-Image

点击展开

KITPF09FRDMEVB
正常供应

PF09 Power Management IC Evaluation Board.

    $155.00 USD
    现货 :22

    正常情况下 1-2个工作日内发货
