PF09 Development Socket Board

KITPF09FRDMPGM
正常供应

滚动图片以放大

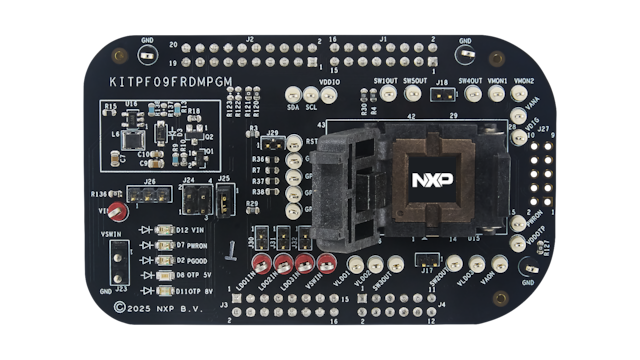

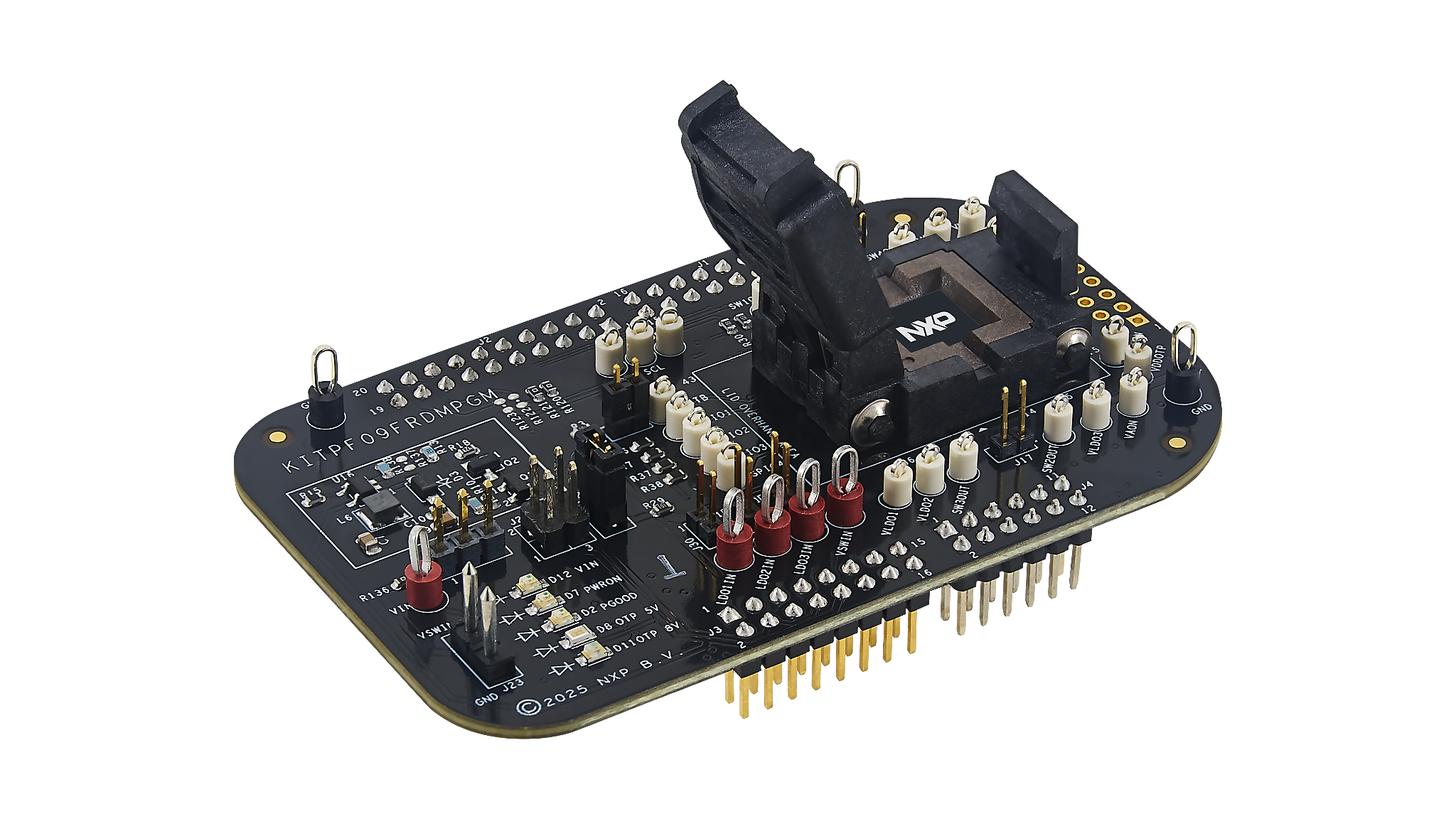

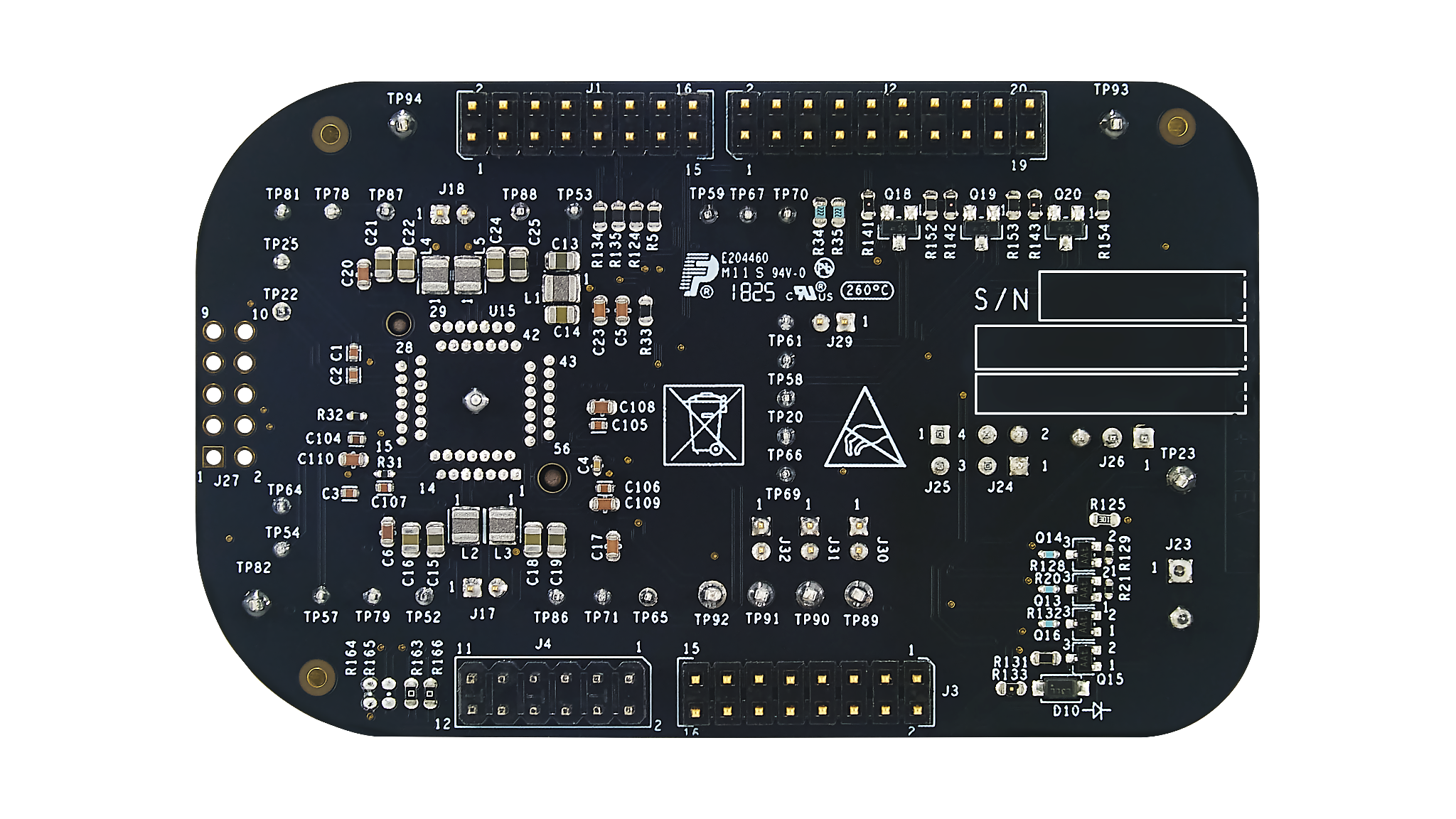

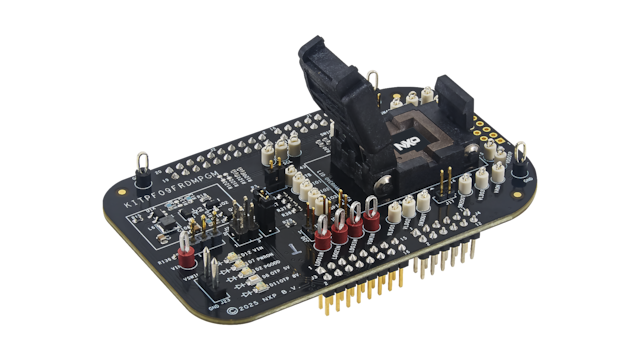

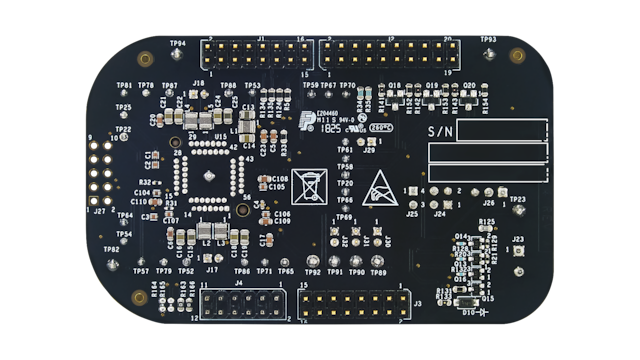

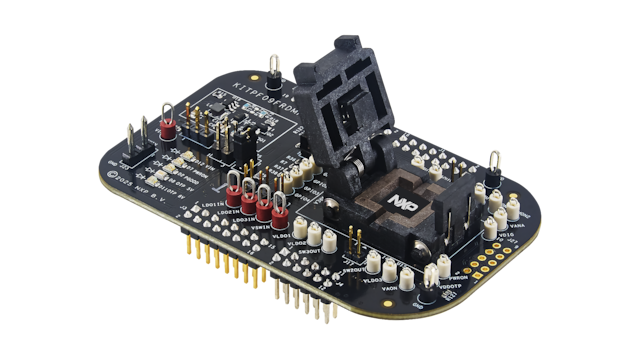

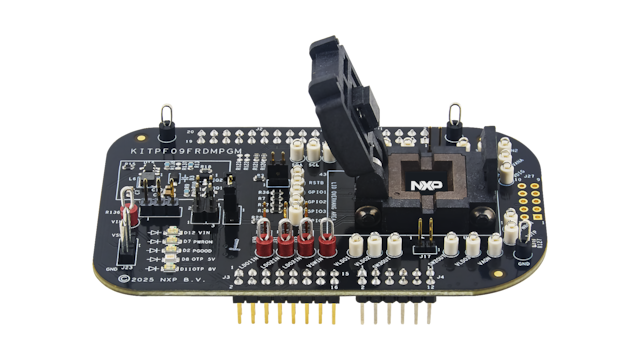

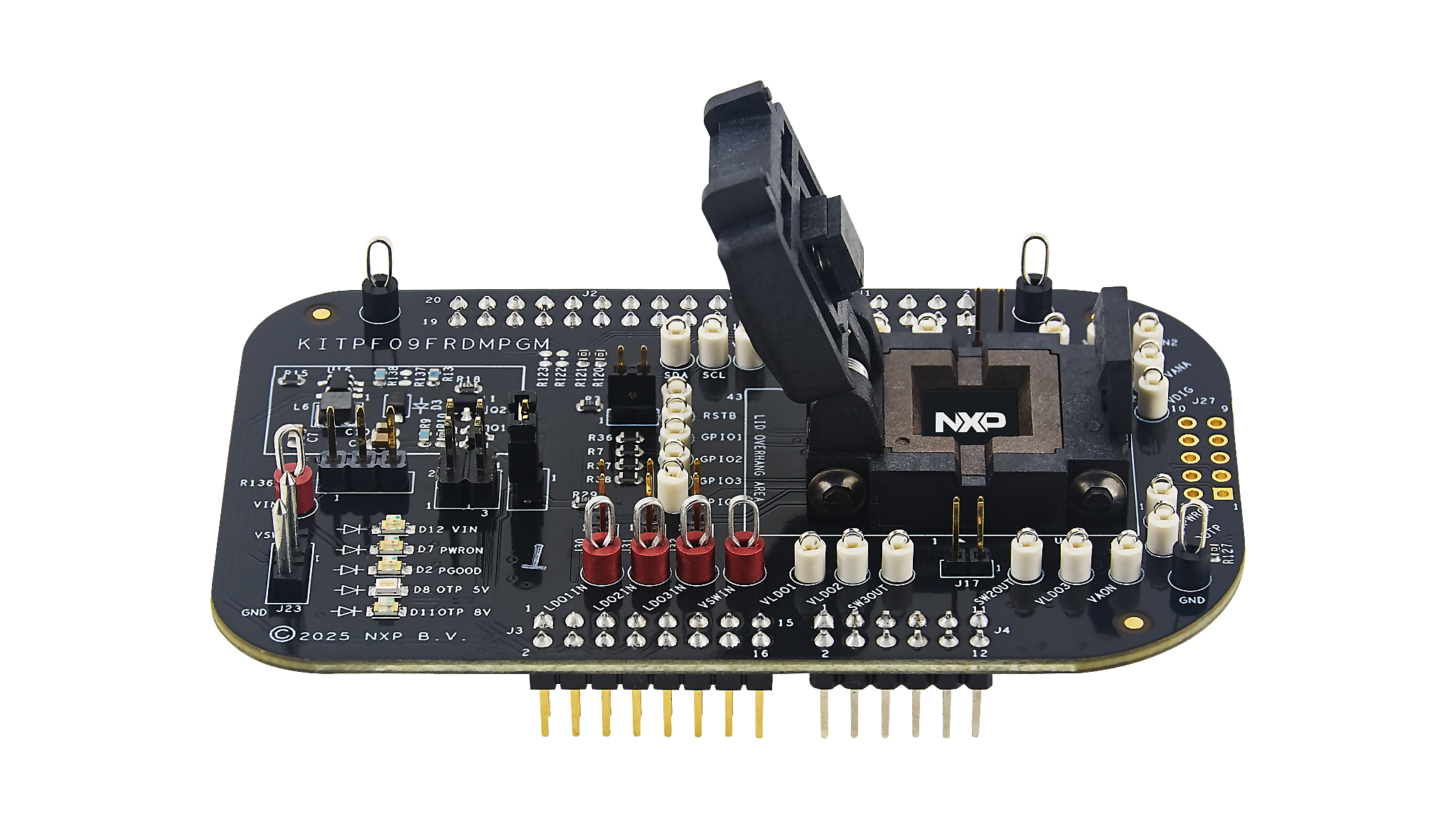

The KITPF09FRDMPGM is a customer programing board featuring the PF09, a Nine-channel power management IC with advanced system safety monitoring. The kits integrate all hardware needed to configure completely the featured power management integrated circuit. It integrates a communication bridge based on the FRDM-KL25Z development board to interface with the GUI software interface to fully configure and control the PF09 PMIC. This board is only intended for configuring the device.

框图

KITPF09FRDMPGM

KITPF09FRDMPGM Block Diagram
获取框图PDF

支持的器件

电源管理

5V PMIC解决方案

  • PF09: 面向高性能应用的9通道PMIC，符合ASIL D和SIL 2安全等级

Features

System Features

  • 2.7 V to 5.5 V operating input voltage range
  • USB to I²C communication via the FRDM-KL25Z interface
  • High Speed I²C communication up to 3.4 MHz
  • Selectable hardwire default PMIC configuration and OTP operation
  • Multichannel analog multiplexer for system voltage monitoring
  • Advanced frequency management with frequency spread spectrum
  • Advanced thermal monitoring and thermal shutdown protection
  • Functional safety architecture to target up to ASIL D automotive applications
  • Functional safety architecture to target up to SIL 2 industrial applications

PMIC Features

  • Up to five switching regulators, four with multiphase capability
  • Three low-dropout linear regulators with load switch operation
  • One Always On regulator with selectable operation output voltage
  • Programmable output voltage and current limits
  • Programmable switching frequency with selectable frequency spread spectrum
  • Two external voltage monitoring inputs
  • Programmable I/O interfacing pins
  • System watchdog monitoring
