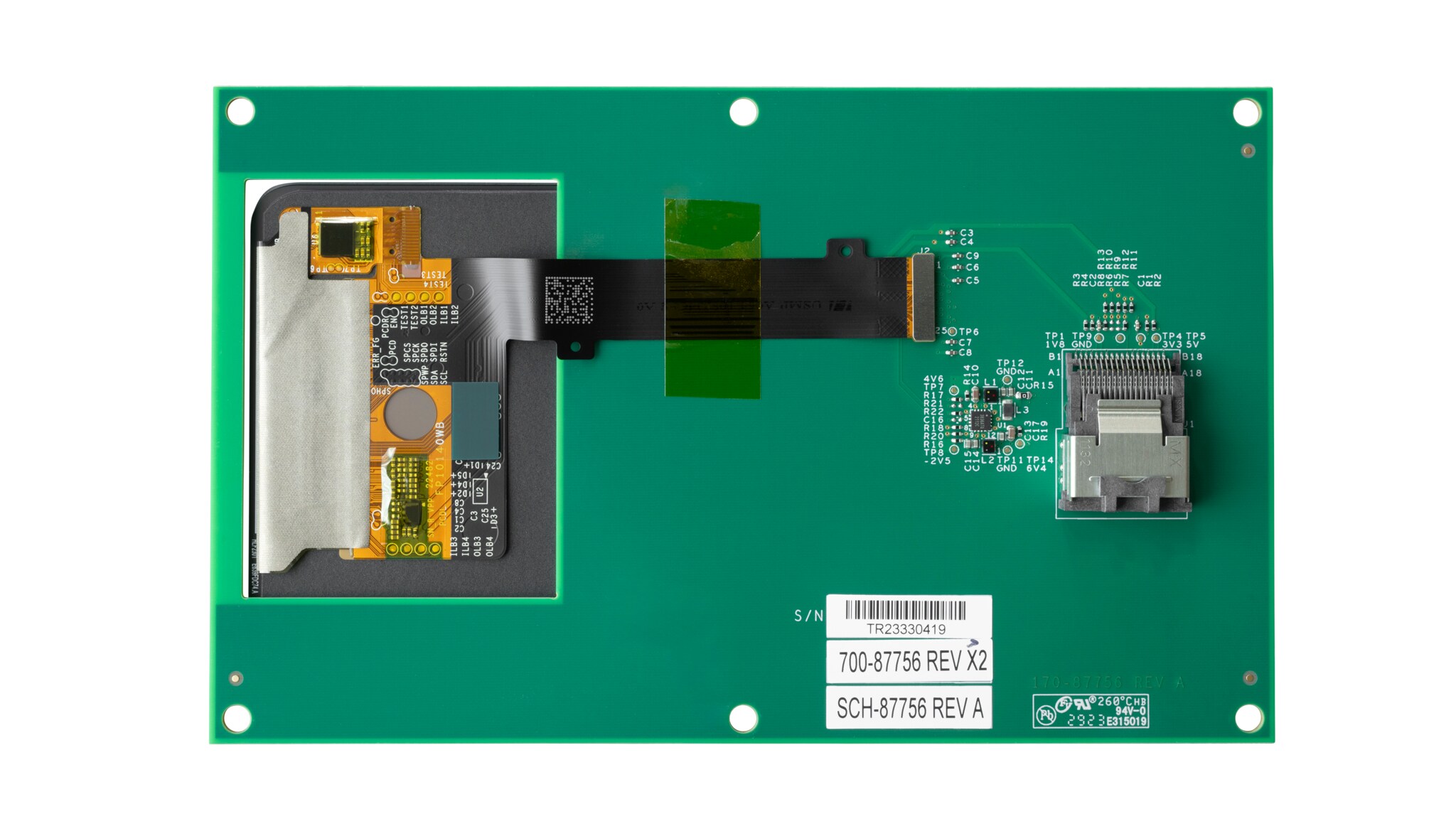

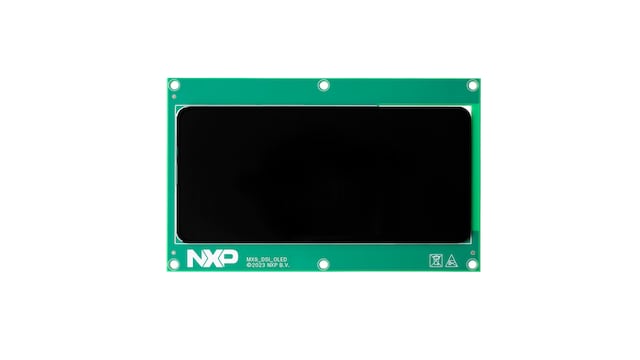

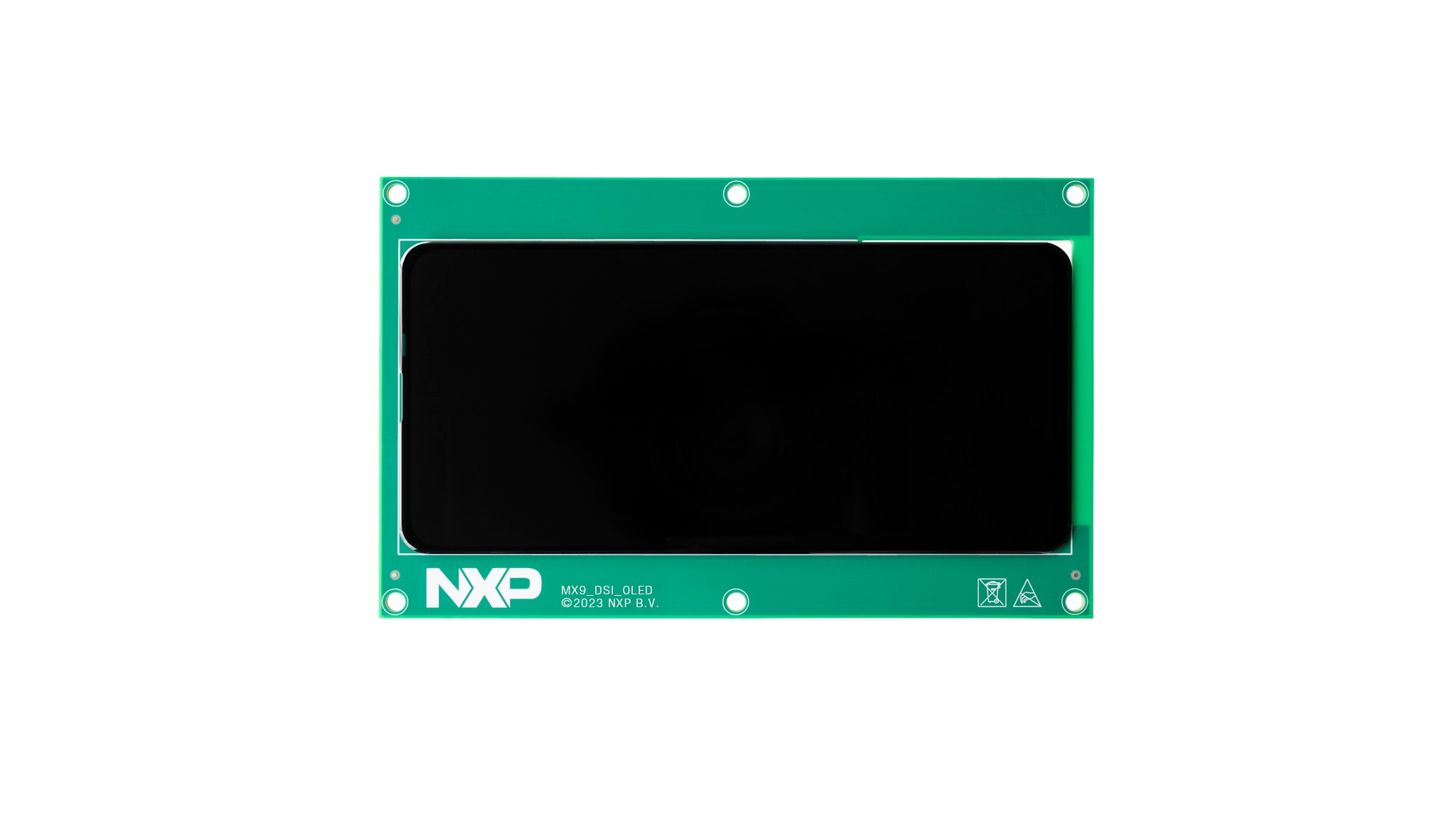

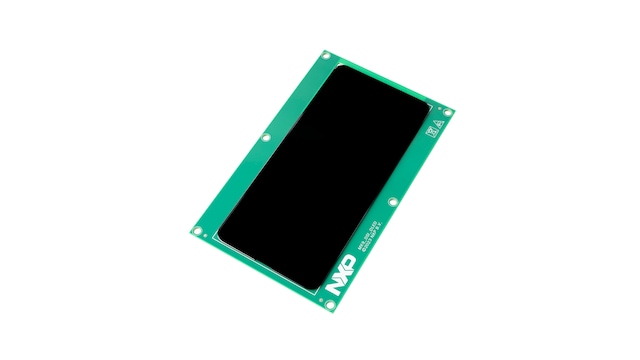

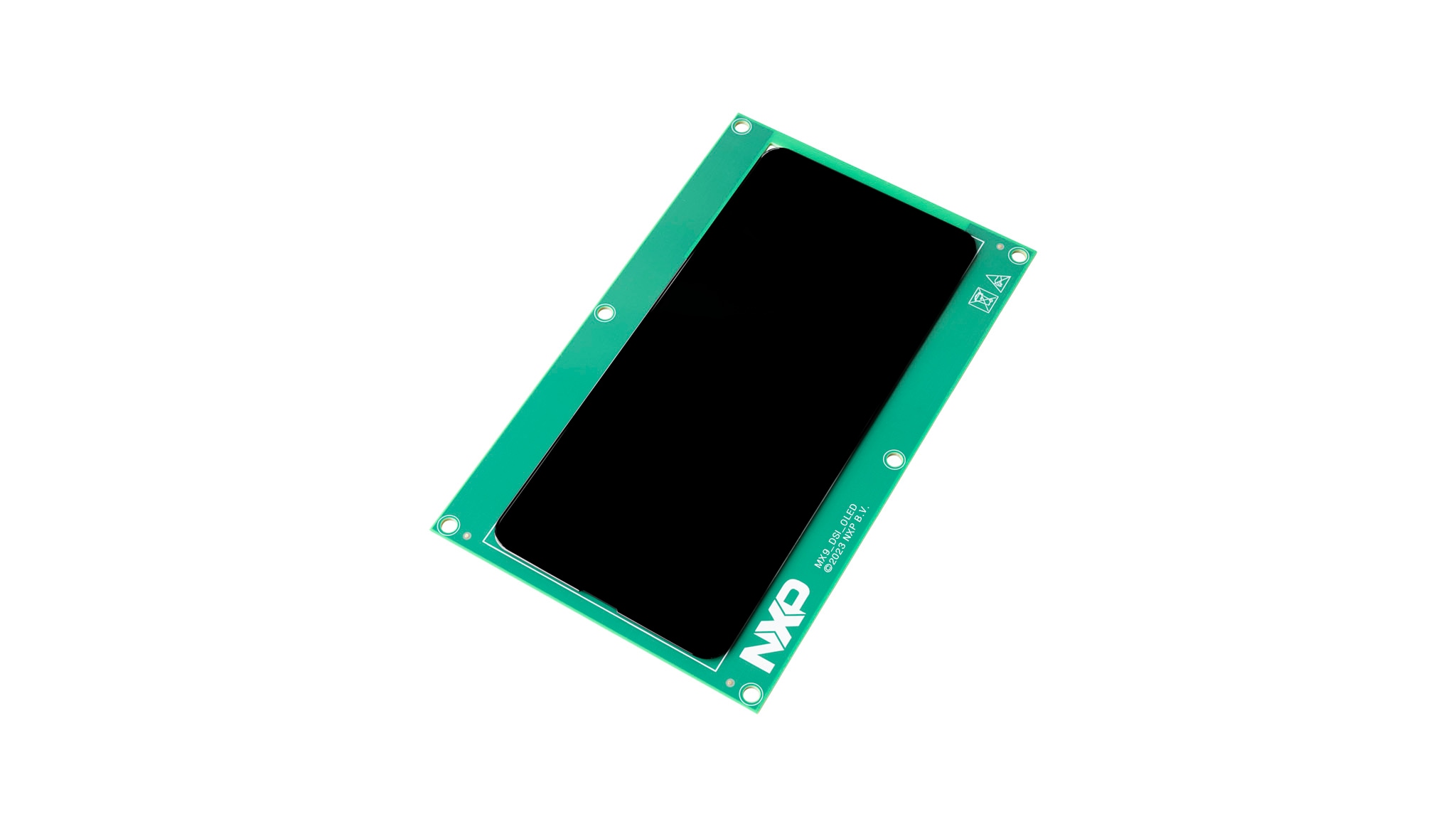

The MX9-DSI-OLED is a MIPI-DSI interface OLED display kit with touch screen support. This accessory can be used with the i.MX 9 series and i.MX 8M family EVKs through Mini-SAS connector. However, only the display functionality is supported on i.MX 8M family EVKs (which lack the required reset signal for touch functionality).

设计文件

产品详情

Features

Display type

6.39" FHD AMOLED display

Resolution

2340 x 1080 pixels

Color depth

16.7 million colors (24-bit, 8 bits per color channel)

Pixel pitch

31.5 μm x 63.0 μm

购买选项

点击展开

MX9-DSI-OLED
正常供应

MX9-DSI-OLED Display Panel.

套件包含

Kit contains:

1 x Cable assembly ipass(mini-sas) nternal cable 36 ckt 4x w/ sidebands

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

文档

快速参考恩智浦文档类别

1 文件

紧凑列表

MX9-DSI-OLED User Guide on i.MX 95 19 mm x 19 mm EVK[UG10317]

HTML | PDFMar 5, 2026版本更新 1.1

设计资源

Related Hardware

快速参考恩智浦板类型.

1 硬件产品

评估板和开发板
i.MX 95 19mm x 19mm Evaluation Kit
正常供应

IMX95LPD5EVK-19类似

设计文件

快速参考恩智浦设计文件类型.

1 设计文件

设计文件-其他
MX9-DSI-OLED Design Files

ZIP版本 0Feb 24, 2026 15:54:003.06 MBMX9-DSI-OLED-DESIGN-FILES
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队

MX9-DSI-OLED Display Panel
