FRDMGD3130HB2EVM Half-Bridge Evaluation Kit for GD3130 Gate Drive Devices.
紧凑列表
FRDMGD3130HB2EVM Half-Bridge Evaluation Kit for GD3130 Gate Drive Devices

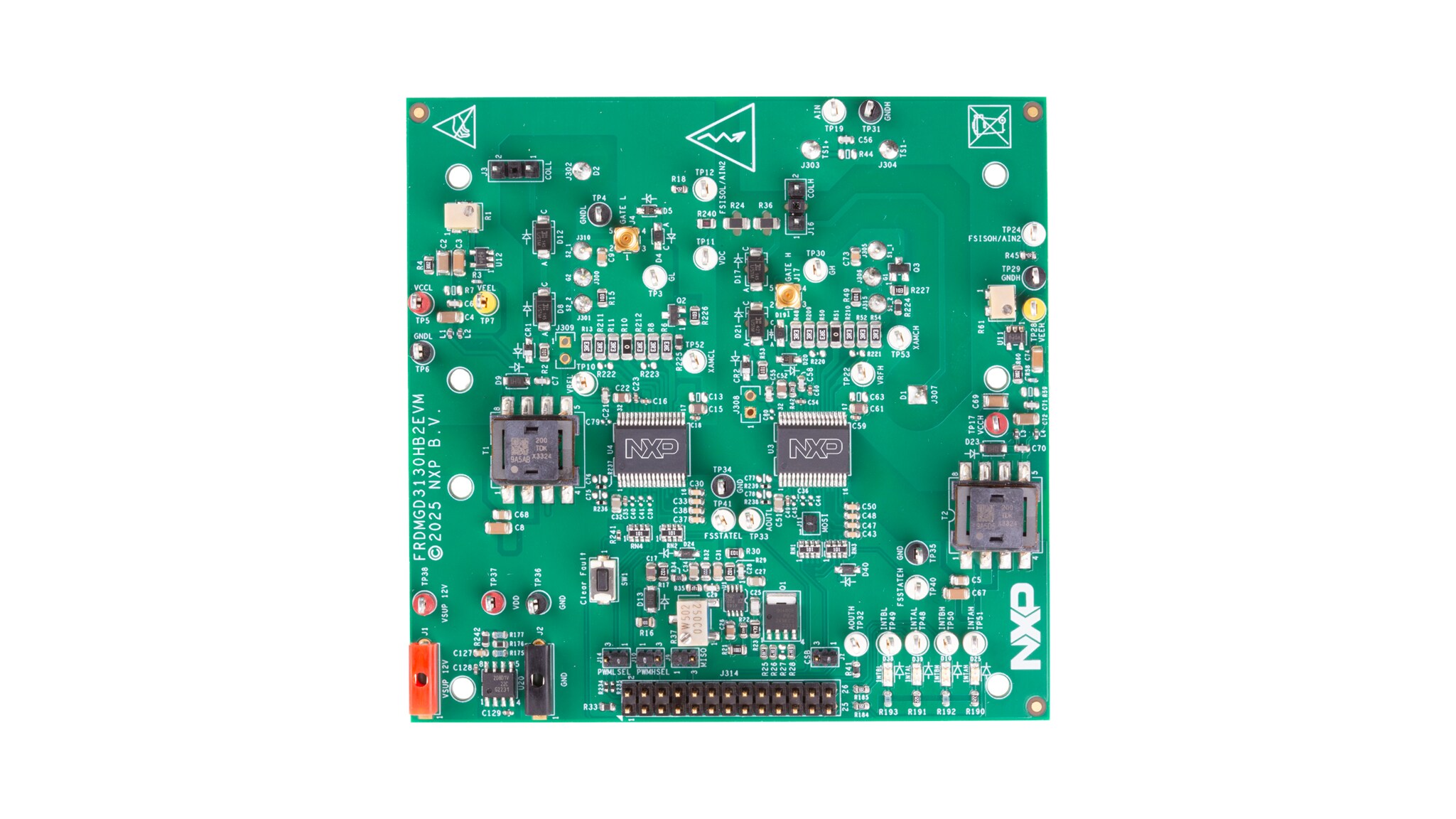

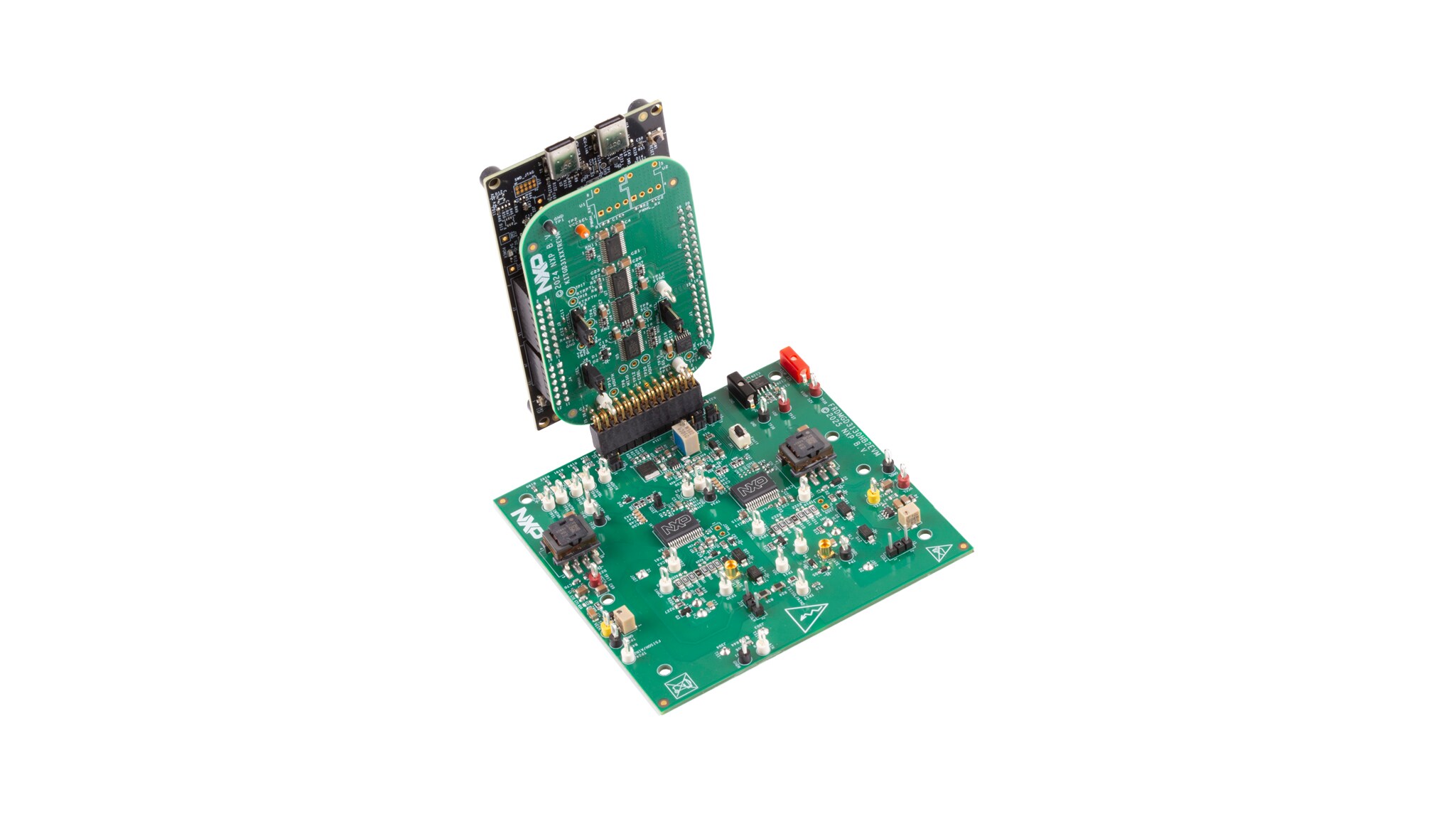

The FRDMGD3130HB2EVM is a half-bridge evaluation kit featuring two GD3130 single-channel gate drivers for evaluating and developing IGBT and SiC power applications. The kit includes the FRDM-MCXA153 microcontroller platform and FlexGUI 2 software for SPI communication with the GD3130 devices in standalone or daisy-chain configurations. A KITGD31XXTREVB translator board enables signal-level translation between the MCU and gate drivers, providing a flexible platform for half-bridge evaluation, validation, and application development.
产品详情
Features
System Features
- HybridPACK™ Drive G2 power module interface
- Adjustable VEE gate-drive voltage (0 V to -10 V)
- Adjustable VCC gate-drive voltage (10 V to 25 V)
- Configurable dead-time fault protection bypass
- Power, ground and signal test points
- SPI interface through FlexGUI 2 software
- Double-pulse and short-circuit test support
- DC-link bus voltage monitoring (AIN/AOUT)
- Power-module temperature monitoring interface
- Configurable temperature-sense connection
