Bluetooth Low Energy/IEEE® 802.15.4数据包嗅探器/USB Dongle

USB-KW41Z 正常供应

滚动图片以放大

USB-KW41Z是一款采用基于便捷式USB dongle型号Arm® Cortex®-M0+处理器的Kinetis®W系列KW41Z/31Z/21Z (KW41Z)系列的开发平台。

USB-KW41Z可用作Bluetooth® Smart/Bluetooth® Low Energy和/或IEEE® 802.15.4数据包嗅探器或开发板。

USB Dongle用作无线数据包嗅探器，可监控无线通信。或者，USB Dongle可用作无线网络节点，提供与PC或其他支持USB器件的简单连接。

支持的器件

无线连接

Zigbee

  • KW21Z: Kinetis® KW21Z-2.4 GHz 802.15.4无线连接微控制器(MCU)，基于Arm® Cortex®M0+内核

低功耗蓝牙

  • KW31Z: Kinetis® KW31Z-2.4 GHz Bluetooth Low Energy (BLE) 无线连接微控制器(MCU)，基于Arm® Cortex®-M0+内核

多协议MCU

  • KW41Z: Kinetis® KW41Z-2.4 GHz双模式：BLE和802.15.4无线连接微控制器(MCU)，基于Arm® Cortex®-M0+内核

特征

调试

  • OpenSDA调试接口

数据连接

  • 弯曲的PCB天线
  • USB A型连接器
  • 非常适合BLE/Generic FSK/802.15.4数据包嗅探器或与PC/平板电脑连接
  • 获得射频监管认证

购买选项

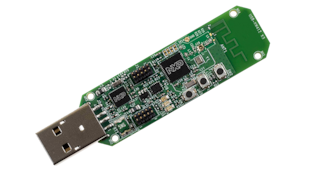

USB-KW41Z-Image

点击展开

  • USB-KW41Z
    正常供应

  • Part Description: USB-KW41Z Bluetooth Low Energy/IEEE® 802.15.4 Packet Sniffer/USB Dongle. 1 board per order..

    • USB-KW41Z数据包嗅探器/Dongle
    • 快速入门指南
  • $69.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
