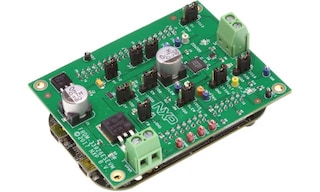

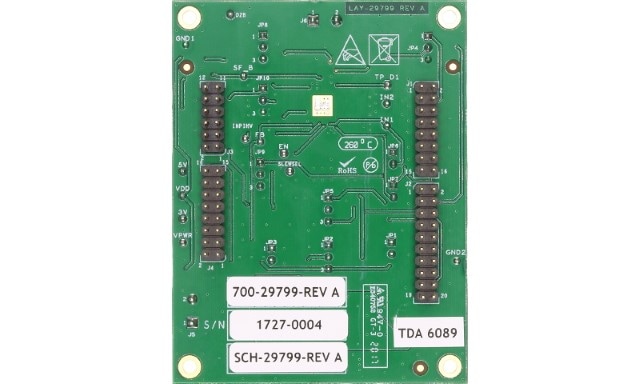

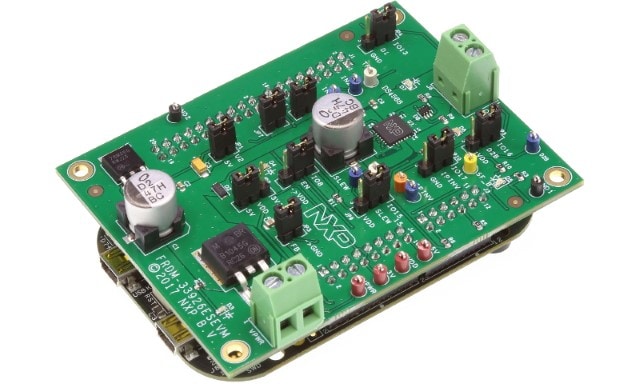

FRDM-33926ESEVM: Freedom Kit - MC33926, 5.0 A Throttle H-B QFN

The Evaluation Kit features the 33926, which is a monolithic H-Bridge Power IC designed primarily for automotive electronic throttle control, but is applicable to any low-voltage DC servo motor control application within the current and voltage limits stated in this specification.

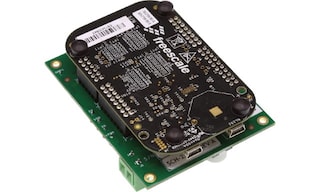

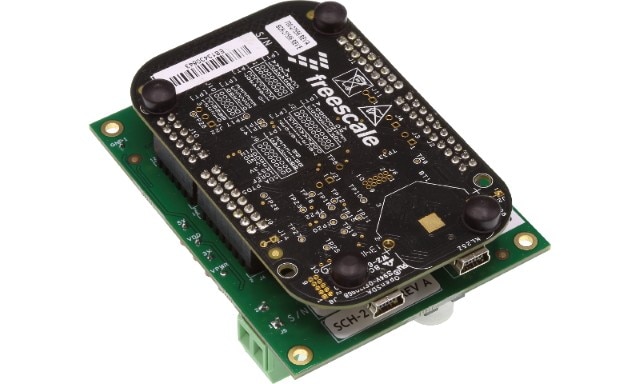

The 33926 is able to control inductive loads with currents up to 5.0 A peak. RMS current capability is subject to the degree of heatsinking provided to the device package. Internal peak-current limiting (regulation) is activated at load currents above 6.5 A ± 1.5 A output loads can be pulse width modulated (PWM’ed) at frequencies up to 20 kHz supported with FRDM-KL25Z
