MCXW236AHN-RDM Board User Manual[UM12387]
用户指南 (1)
-
Getting Started with MCXW236AHN-RDM[GS-MCXW236AHN-RDM]快速入门
紧凑列表
MCXW236AHN-Radio Device Module
- 本页面包含试生产产品的信息。页面中的规格和信息如有更改，恕不另行通知。如需更多信息，请联系销售代表。
The MCXW236AHN-RDM are highly configurable, low-power and cost-effective evaluation and development board for application prototyping and demonstration of the MCXW236AHN device. The MCXW236AHN constitutes a highly integrated, single chip ultralow power Bluetooth Low Energy 5.3 wireless transceiver with embedded microcontroller and flash, targeted at internet of things (IoT) application.
产品详情
Features
Connectivity
- NXP's ultra-low-power MCXW236AHN Wireless microcontroller unit (MCU) supporting Bluetooth LE
- Fully compliant with Bluetooth 5.3 LE
Reference Design with Small-Footprint, Low-Cost RF Node
- Single-ended input/output port
- Low-count of external components
- Maximum output power can reach up to +6 dBm at the SubMiniature version A (SMA) connector
Selectable Power Source
- Configuration is done through solder jumpers
- DC/DC converter
- MCXW236AHN: boost capability for operation on the 1.5 V battery
- 32 MHz reference oscillator for radio frequency (RF) operation
- 32.768 kHz reference oscillator used for low power operation
Flexible RF Transmitter Level Configuration
- TX Mode 1 (TXM1): Range from -31 dBm to +2 dBm when VDD_RF exceeds 1.1 V (default-configured mode)
- TX Mode 2 (TXM2): Range from -28 dBm to +6 dBm when VDD_RF exceeds 1.7 V
Packaging

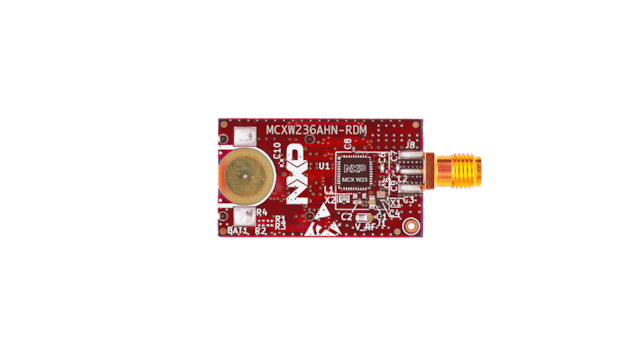

- Printed-circuit board (PCB) Marking: MCXW236AHN-RDM
- A 2-layer printed circuit board (PCB) with through-hole (TH) vias only
- PCB color: Red
