IW610 Wi-Fi 6 M.2 Module with Bluetooth LE and 802.15.4

IW610G-M2 全新
试生产
  • 本页面包含试生产产品的信息。页面中的规格和信息如有更改，恕不另行通知。如需更多信息，请联系销售代表。

点击图片以展开

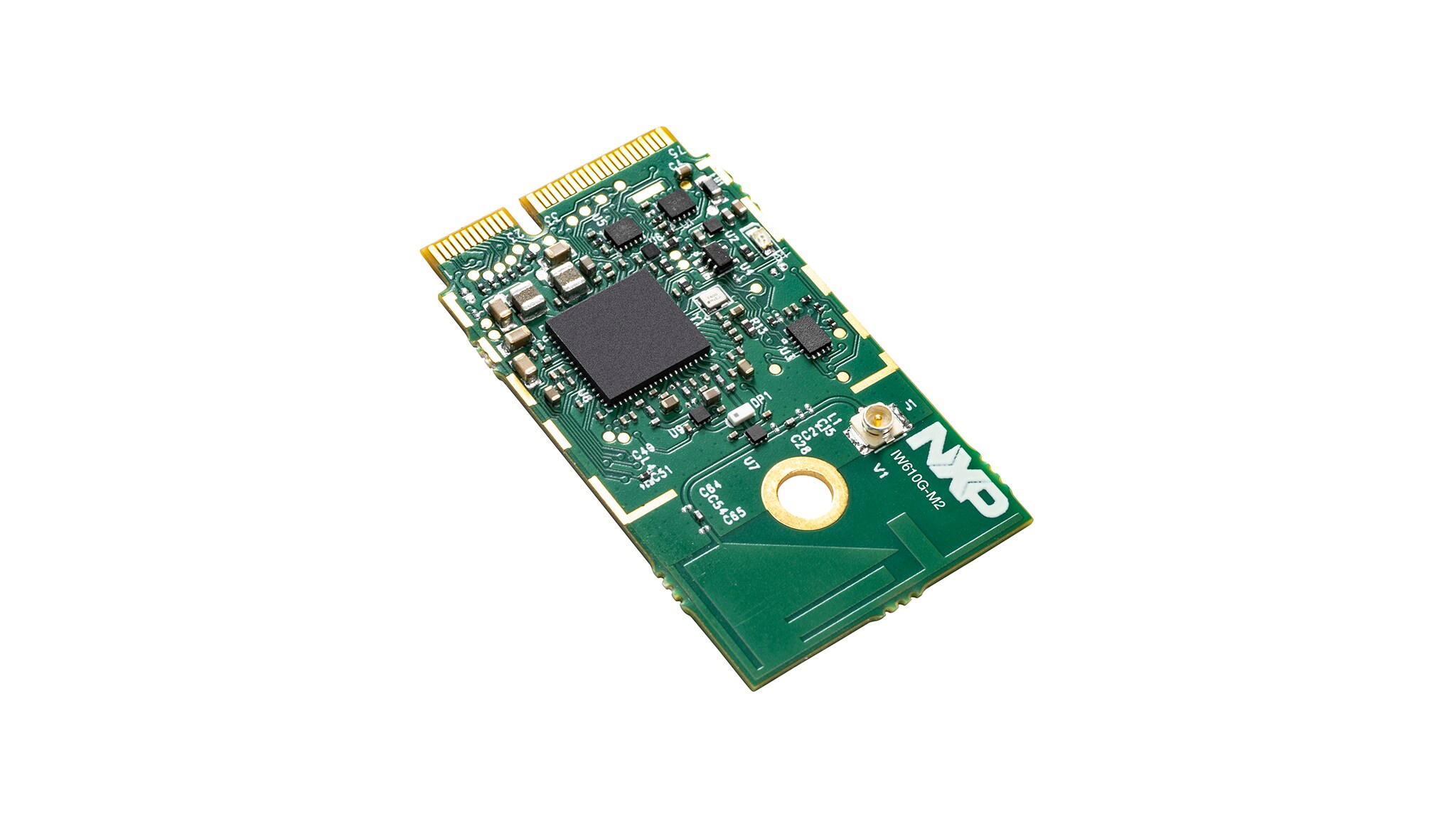

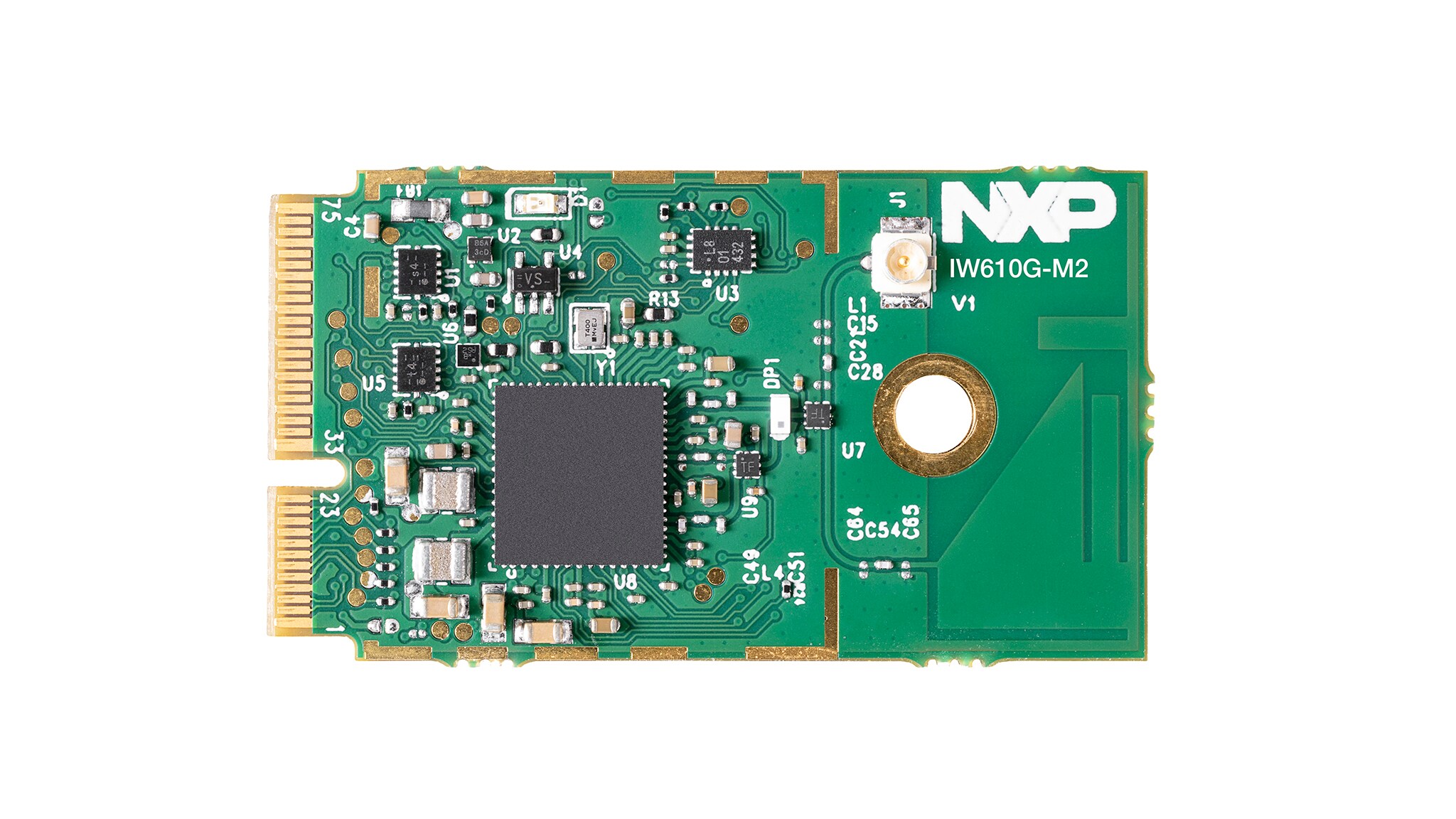

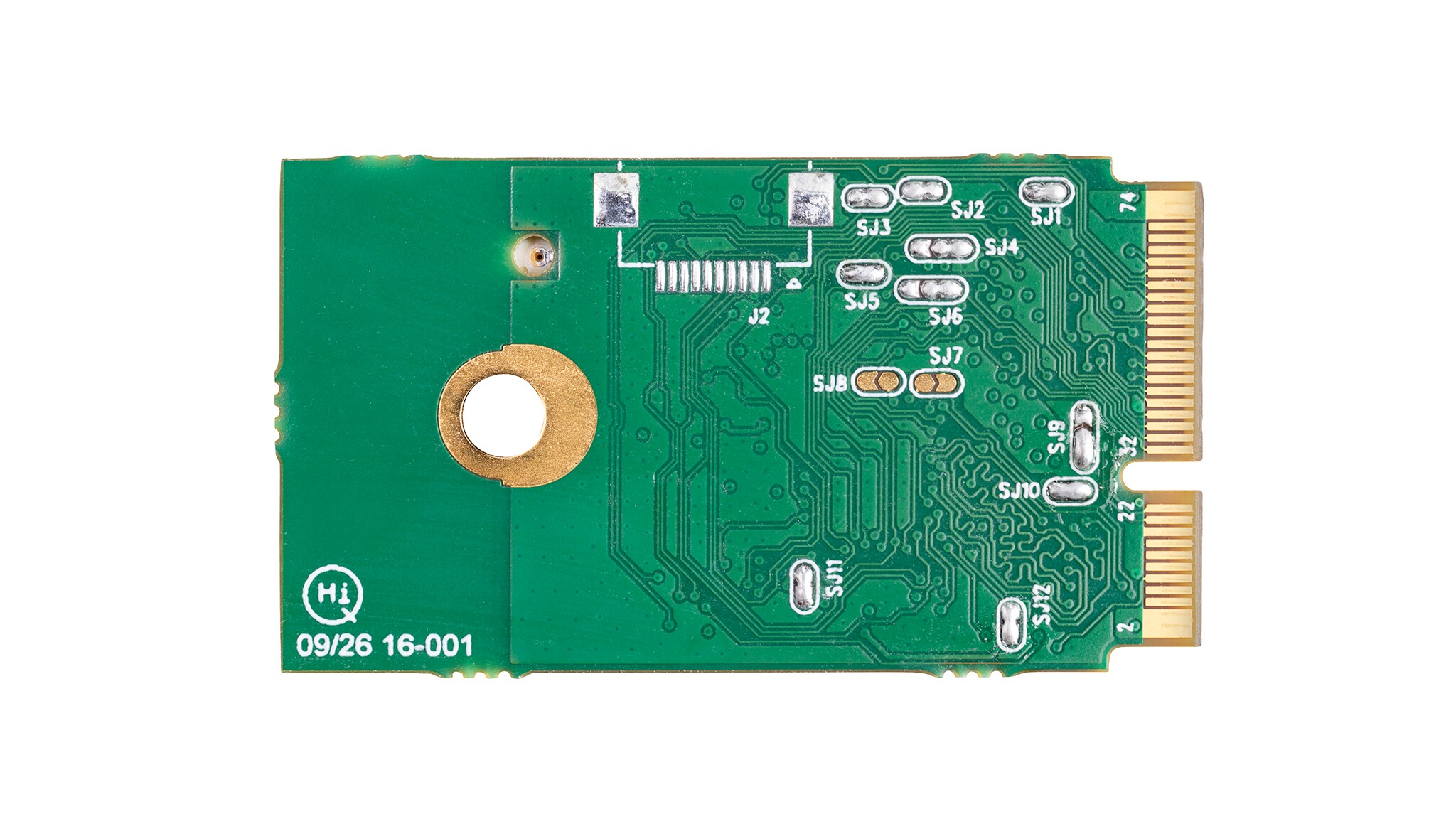

The IW610G-M2 is an M.2 card based on the IW610 Wi-Fi 6, Bluetooth Low Energy (LE) and 802.15.4 tri-radio solution, designed to bring wireless connectivity to the MCX N947 and i.MX 91 evaluation kits.

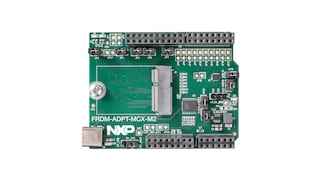

The module can be stacked on the FRDM-MCXN947 using a compatible FRDM adapter board for MCX, unlocking wireless connectivity for MCX N947-based prototyping. It can also be used directly with the i.MX 91 evaluation kit (EVK) to support Wi-Fi 6, Bluetooth LE and 802.15.4 connectivity.

框图

IW610 Wi-Fi 6 M.2

IW610 Wi-Fi 6 M.2 Module with Bluetooth LE and 802.15.4 Block Diagram
获取框图PDF

支持的器件

无线连接

Wi-Fi® +蓝牙® + 802.15.4

  • IW610: 2.4/5GHz双频1x1 Wi-Fi® 6+BLE 5.4+802.15.4三频解决方案

Features

  • IW610 inside
  • Wi-Fi 6 + Bluetooth LE + 802.15.4
  • 1x1 Dual Band 2.4 GHz / 5 GHz 802.11 a/b/g/n/ax
  • 256 QAM, 20 MHz bandwidth, Peak Throughput: 114.7 Mbit/s
  • Wi-Fi Tx output power up to +23 dBm
  • Wi-Fi 6 Extended Range (ER), Dual Carrier Modulation (DCM), Target Wait Time (TWT)
  • Low-power Wi-Fi idle, standby and sleep modes
  • WPA2/WPA3 security
  • Support for Matter over Wi-Fi
  • Switchable Bluetooth LE/802.15.4 operation
  • Integrated PA / LNA / Switch with up to +15 dBm TX output
  • High-speed 2 Mbit/s, long range, advertising extensions
  • PCB trace antenna on module
