IMX95OV-CONVERT
IMX95OV-CONVERT.
套件包含
Kit contains:
- 1x IMX95OV-CONVERT
- 1x SHUNT -- 0.1IN SP JMPR -- AU BLACK
- 4x FASTENER, NUT,HEX, NYLON,M3
- 4x STANDOFF, FEMALE/MALE, M3*20MM NYLON
紧凑列表
IMX95OV-CONVERT
The camera module can be used for consumer applications requiring high-resolution image capture.

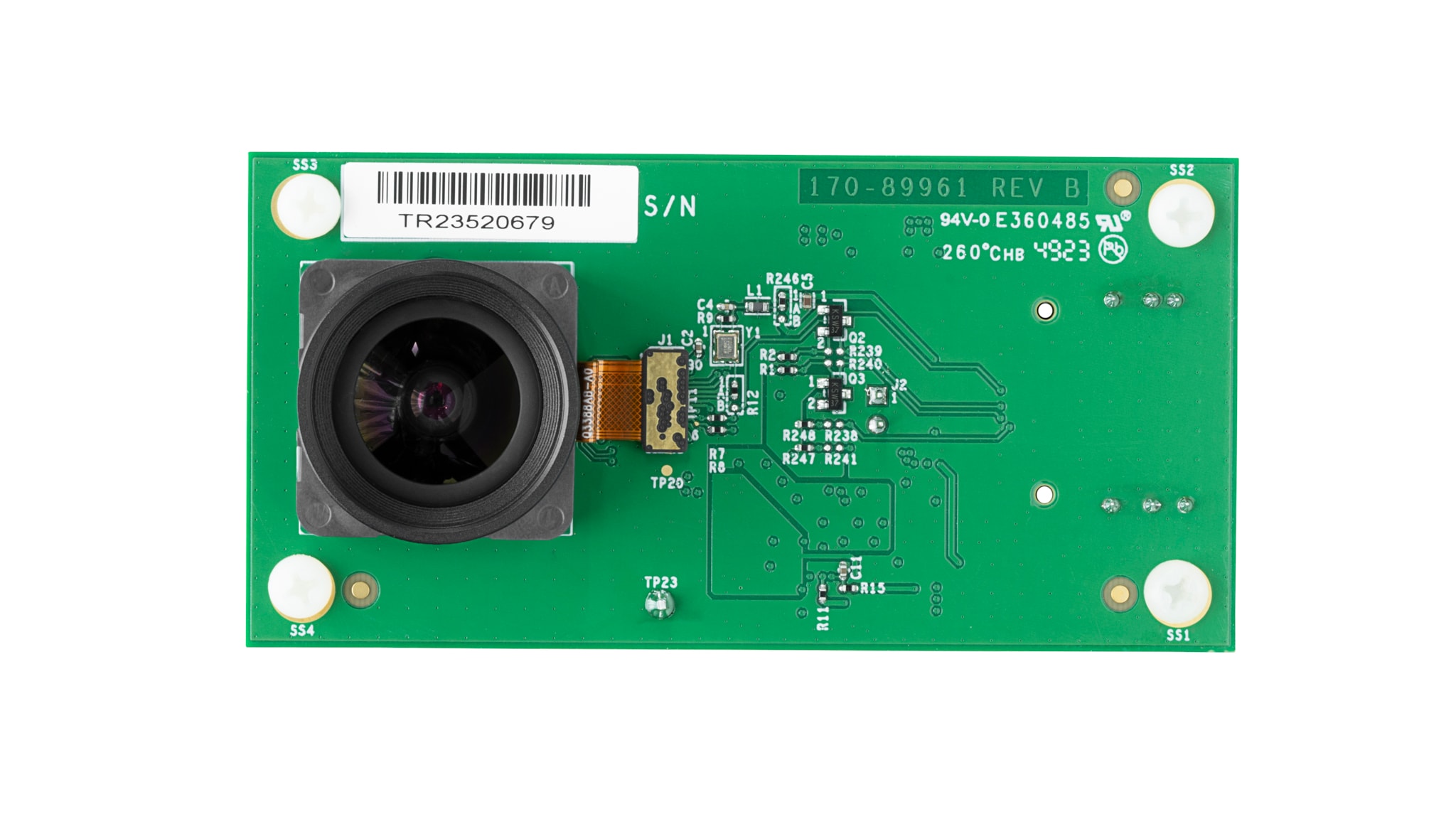

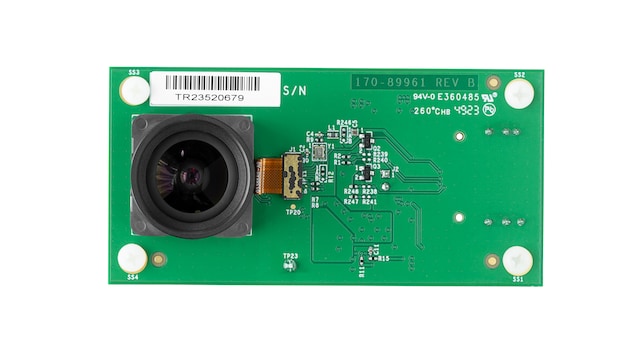

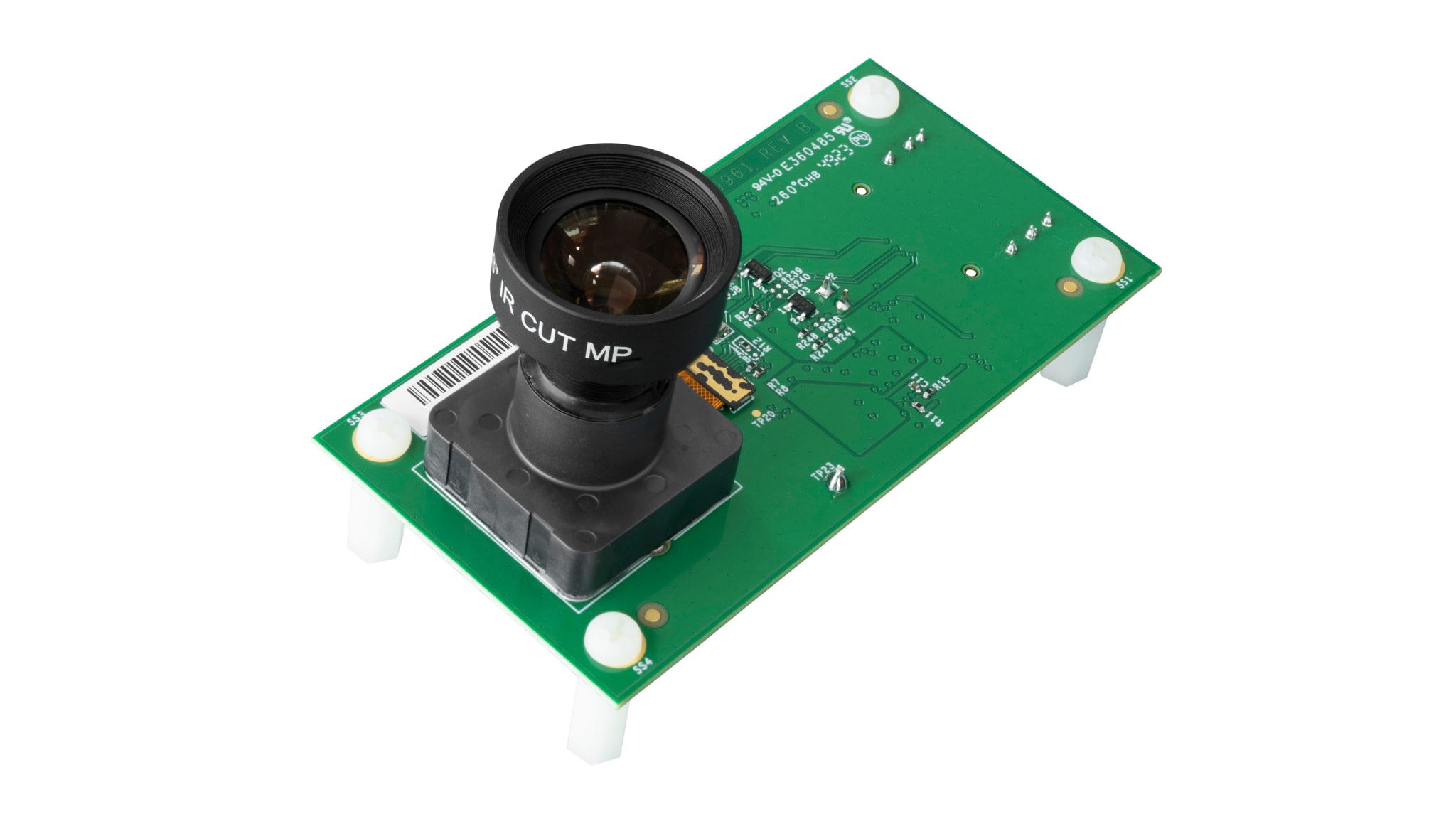

The 4K CMOS camera module uses the OS08A20 sensor from OmniVision. It is a high performance, 1/2", 8 megapixel (8MP), CMOS image sensor that captures 3840x2160 pixels at 60 fps. The camera provides full-frame and windowed 10/12-bit MIPI/LVDS images in various formats and can be enabled easily using the i.MX 95 applications processor evaluation kit (EVK). This kit includes an 8MP image sensor, a MINI-SAS cable and an adapter board to connect the EVK board and the sensor by MINI-SAS connectors.
产品详情
Features
Image Sensor
- OmniVision Color CMOS OS08A20 8-Megapixel PureCel Image Sensor with Nyxel Technology
- 8.3M (3840*2160) resolution, 2.0um pixel size, 1/1.8-inch image sensor
- Supports output formats: 10/12-bit RAW RGB
- Supports images sizes: 4K (3840x2160), 2560x1440, 1080p (1920x1080), 720p (1280x720)
- 2-exposure staggered high dynamic range (HDR) support
- Light Sensing Mode (LSM)
- Phase-locked loop (PLL) with spread-spectrum clocking (SSC) support
Image Transfer Rate
- 4K @ 30FPS
Max S/N ratio
- 39 dB
Dynamic Range
- 74 dB @ 16x gain
