C29x PCI Express®适配器平台

C29XPCIE 正常供应

滚动图片以放大

C29x PCI Express (PCIe)适配器平台是一个理想的硬件和软件开发环境，面向高性能网络应用，如统一威胁管理、应用交付控制器和硬件安全模块。

  • 该平台基于恩智浦C29x加密协处理器系列，并采用小型高效的半长x4 PCIe规格
  • 这个可扩展的解决方案包含3个器件，即C291、C292和C293协处理器，可提供每秒8至32k次2048位RSA事务的处理能力。
  • C29x PCIe适配器平台为开发人员带来了更高的灵活性，既可以集成至托管开发环境，也可以作为独立的台式嵌入式系统。

产品详情

支持的器件

处理器和微控制器

T系列

  • T2080: QorIQ® T2080和T2081多核通信处理器

加密协处理器

  • C29x: 加密协处理器

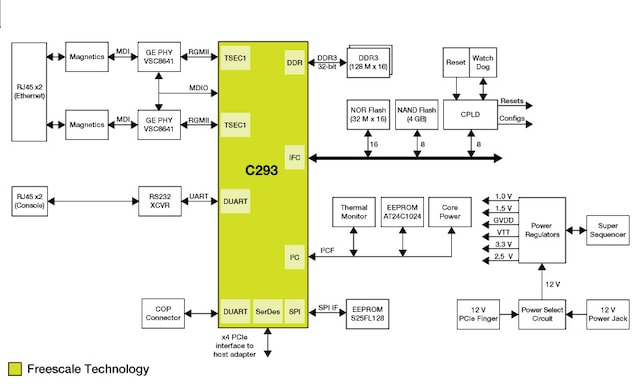

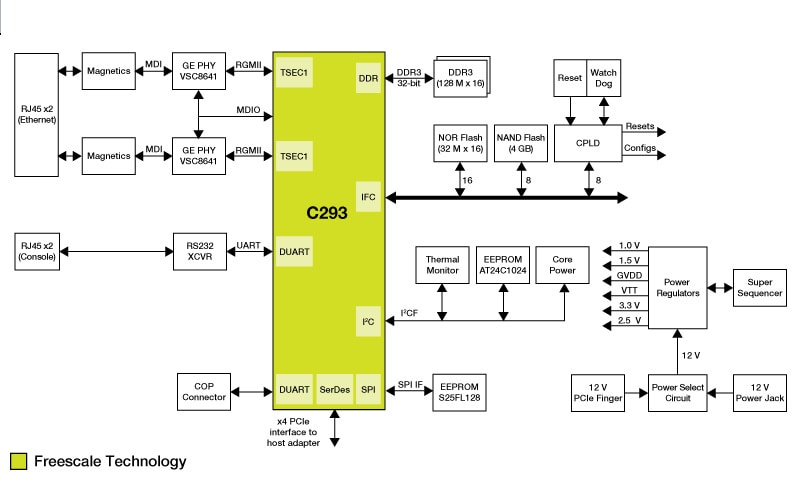

特征

加密协处理器

  • 32位DDR3/3L存储控制器
  • 64 MB NOR闪存，16位
  • 4 GB NAND闪存，8位
  • 16 MB SPI EEPROM

PCI Express

  • PCIe x4接口

以太网

  • Two 1 GbE RGMII ports

UART

  • 高达115200 bp/s、用于控制台显示的UART接口和一个RJ45连接器

其他

  • RJ45串行控制台端口
  • 用于调试的JTAG
  • CPLD controlling reset, watchdog timer, and power-on config
  • 用于ADM1069(上电控制芯片组)编程的连接器
  • 用于CPLD编程的连接器
  • 用于ZL6105(数字电源)编程的连接器

购买选项

C29XPCIE-RDB-Image

点击展开

  • C29XPCIE-RDB
    正常供应

  • C29x Crypto Coprocessor PCI Express?? Adapter Platform.

  • $1144.25 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
N true 0 TSPC29XPCIEzh 4 用户指南 User Guide t792 3 简介 Fact Sheet t523 1 zh zh 3 1 1 English C29xPCIeQS: This C29x PCIe Card Quick Start Guide explains NXP C29x crypto coprocessor board settings and physical connections needed to boot the board. 1382106475932709723149 TSP 1.3 MB Registration without Disclaimer None documents Y Extended 1382106475932709723149 /secured/assets/documents/en/user-guide/C29xPCIE_Quick_Start_Guide.pdf 1348208 /secured/assets/documents/en/user-guide/C29xPCIE_Quick_Start_Guide.pdf C29XPCIEQS Y N 2013-10-29 C29x PCIe Card Quick Start Guide /webapp/Download?colCode=C29XPCIEQS&docLang=en /secured/assets/documents/en/user-guide/C29xPCIE_Quick_Start_Guide.pdf User Guide N 132339537837198660 2022-12-07 pdf Y en Mar 31, 2014 User Guide t792 用户指南 User Guide D N C29x PCIe Card Quick Start Guide 2 1 English C29xPCIeUG: The C29x PCIe is a PCIe card with an NXP C29x crypto coprocessor system-on-chip (SoC)/processor. 1382108085805749319609 TSP 2.2 MB Registration without Disclaimer None documents Y Extended 1382108085805749319609 /secured/assets/documents/en/user-guide/C29x_PCIe_Card_User_Guide.pdf 2231343 /secured/assets/documents/en/user-guide/C29x_PCIe_Card_User_Guide.pdf C29XPCIEUG Y N 2013-10-29 C29x PCIe Card User Guide /webapp/Download?colCode=C29XPCIEUG&docLang=en /secured/assets/documents/en/user-guide/C29x_PCIe_Card_User_Guide.pdf User Guide N 132339537837198660 2022-12-07 pdf Y en Mar 26, 2014 User Guide t792 用户指南 User Guide D N C29x PCIe Card User Guide 3 1 English C29xPKCalcUG: This document explains the procedure to build, configure, and use different software components for the NXP C29x crypto coprocessor device. 1386055591844717312452 TSP 842.6 KB Registration without Disclaimer None documents Y Extended 1386055591844717312452 /secured/assets/documents/en/user-guide/C29xPKCalcUG.pdf 842634 /secured/assets/documents/en/user-guide/C29xPKCalcUG.pdf C29XPKCALCUG Y N 2013-12-03 C29x PK Calculator User Guide /webapp/Download?colCode=C29XPKCALCUG&docLang=en /secured/assets/documents/en/user-guide/C29xPKCalcUG.pdf User Guide N 132339537837198660 2022-12-07 pdf Y en Dec 3, 2013 User Guide t792 用户指南 User Guide D N C29x PK Calculator User Guide false zh 简介 Fact Sheet 1 4 0 English The C29x PCI Express® (PCIe) Adapter Platform is an ideal hardware and software development platform for high-performance networking applications, such as, Unified Threat Management, Application Delivery Controllers and Hardware Security Modules. It is based upon NXP’s C29x crypto coprocessor family and is fabricated in a small and efficient half length x4 PCI Express form factor. 1380123953163721881214 TSP 688.4 KB None None documents None 1380123953163721881214 /docs/en/fact-sheet/C29XPCIFS.pdf 688406 /docs/en/fact-sheet/C29XPCIFS.pdf C29XPCIFS documents N N 2013-10-28 C29x PCI Express Adapter Platform - Fact Sheet /docs/en/fact-sheet/C29XPCIFS.pdf /docs/en/fact-sheet/C29XPCIFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Sep 25, 2013 736675474163315314 Fact Sheet N N C29x PCI Express Adapter Platform - Fact Sheet false 0 C29XPCIE downloads zh-Hans true 0 Y TSP 用户指南 3 /secured/assets/documents/en/user-guide/C29xPCIE_Quick_Start_Guide.pdf 2013-10-29 1382106475932709723149 TSP 1 Mar 31, 2014 User Guide 用户指南 C29xPCIeQS: This C29x PCIe Card Quick Start Guide explains NXP C29x crypto coprocessor board settings and physical connections needed to boot the board. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/C29xPCIE_Quick_Start_Guide.pdf English 1348208 None User Guide 2022-12-07 Y /webapp/Download?colCode=C29XPCIEQS&docLang=en C29x PCIe Card Quick Start Guide /secured/assets/documents/en/user-guide/C29xPCIE_Quick_Start_Guide.pdf documents 132339537837198660 User Guide N en Extended D t792 pdf 1 Y N C29x PCIe Card Quick Start Guide 1.3 MB C29XPCIEQS N 1382106475932709723149 /secured/assets/documents/en/user-guide/C29x_PCIe_Card_User_Guide.pdf 2013-10-29 1382108085805749319609 TSP 2 Mar 26, 2014 User Guide 用户指南 C29xPCIeUG: The C29x PCIe is a PCIe card with an NXP C29x crypto coprocessor system-on-chip (SoC)/processor. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/C29x_PCIe_Card_User_Guide.pdf English 2231343 None User Guide 2022-12-07 Y /webapp/Download?colCode=C29XPCIEUG&docLang=en C29x PCIe Card User Guide /secured/assets/documents/en/user-guide/C29x_PCIe_Card_User_Guide.pdf documents 132339537837198660 User Guide N en Extended D t792 pdf 1 Y N C29x PCIe Card User Guide 2.2 MB C29XPCIEUG N 1382108085805749319609 /secured/assets/documents/en/user-guide/C29xPKCalcUG.pdf 2013-12-03 1386055591844717312452 TSP 3 Dec 3, 2013 User Guide 用户指南 C29xPKCalcUG: This document explains the procedure to build, configure, and use different software components for the NXP C29x crypto coprocessor device. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/C29xPKCalcUG.pdf English 842634 None User Guide 2022-12-07 Y /webapp/Download?colCode=C29XPKCALCUG&docLang=en C29x PK Calculator User Guide /secured/assets/documents/en/user-guide/C29xPKCalcUG.pdf documents 132339537837198660 User Guide N en Extended D t792 pdf 1 Y N C29x PK Calculator User Guide 842.6 KB C29XPKCALCUG N 1386055591844717312452 简介 1 /docs/en/fact-sheet/C29XPCIFS.pdf 2013-10-28 1380123953163721881214 TSP 4 Sep 25, 2013 Fact Sheet The C29x PCI Express® (PCIe) Adapter Platform is an ideal hardware and software development platform for high-performance networking applications, such as, Unified Threat Management, Application Delivery Controllers and Hardware Security Modules. It is based upon NXP’s C29x crypto coprocessor family and is fabricated in a small and efficient half length x4 PCI Express form factor. None /docs/en/fact-sheet/C29XPCIFS.pdf English documents 688406 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/C29XPCIFS.pdf C29x PCI Express Adapter Platform - Fact Sheet /docs/en/fact-sheet/C29XPCIFS.pdf documents 736675474163315314 Fact Sheet N en None N pdf 0 N N C29x PCI Express Adapter Platform - Fact Sheet 688.4 KB C29XPCIFS N 1380123953163721881214 true Y Tools
