These high ruggedness devices, MMRF1320N and MMRF1320GN, are designed for use in high VSWR defense and commercial radio communications and HF, VHF and UHF radar applications. The unmatched input and output designs allow wide frequency range utilization from 1.8 to 600 MHz.

应用笔记

产品详情

Features

Wide operating frequency range
Ruggedness
Input and output allowing wide frequency range utilization
Integrated stability enhancements
Low thermal resistance
Integrated ESD protection circuitry
RoHS compliant

RF Performance Tables

Typical Performance

V_DD = 50 Vdc

Frequency (MHz)	Signal Type	Pout (W)	G_ps (dB)	η_D (%)
230	CW	150	26.3	72.0
230	Pulse (100 µsec, 20% Duty Cycle)	150 Peak	26.1	70.3

Load Mismatch/Ruggedness

Frequency (MHz)	Signal Type	VSWR	Pin (W)	Test Voltage	Result
230	Pulse (100 µsec, 20% Duty Cycle)	> 65:1 at all Phase Angles	0.62 Peak (3 dB Overdrive)	50	No Device Degradation

文档

快速参考恩智浦文档类别

4 文件

紧凑列表

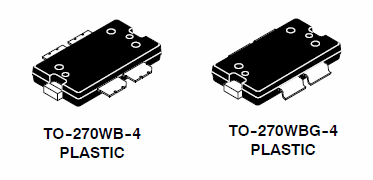

98ASA10578D, TO, 17.0x9.0x2.59, Pitch 0.21, 4 Pins[SOT1736-2]

PDFMar 17, 2016版本更新 E
98ASA10577D, TO, 17.53x9.02x2.59, Pitch 5.38, 5 Pins[SOT1736-1]

PDFJan 18, 2016版本更新 F

Thermal Characterization Methodology of RF Power Amplifiers - Application Note[AN1955]

PDFJul 11, 2024版本更新 2

1.8-600 MHz, 150 W CW, 50 V RF Power LDMOS Transistor Data Sheet[MMRF1320N]

PDFJul 30, 2015版本更新 0

1.8-600 MHz, 150 W CW, 50 V RF Power LDMOS Transistor
