DSPAUDIOEVMMB1E
-
DSP563XX MOTHERBOARD.
软件
2 软件文件
-
代码片段
Equate file for the DSP56720 and DSP56721
-
开发IDE和生成工具
Symphony™ Studio Development Tools
注意: 推荐在电脑端下载软件，体验更佳。
DSPAUDIOEVM评估模块
DSPAUDIOEVM 接收通知

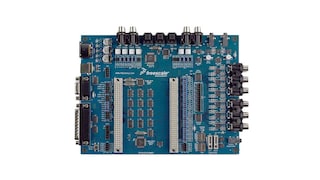

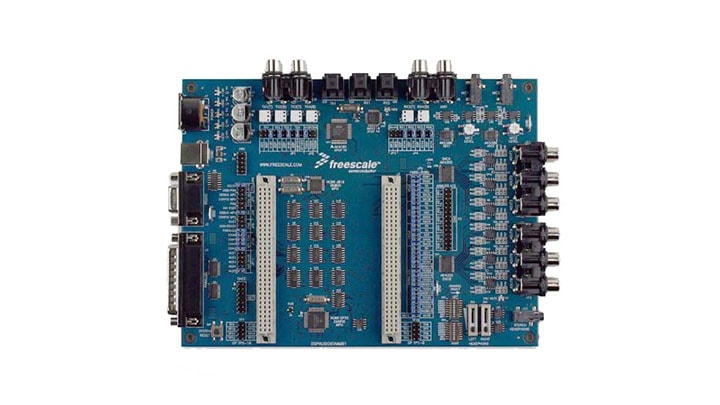

The DSPAUDIOEVM Evaluation Module is used to demonstrate the abilities of the NXP® Symphony® DSP family and provide a hardware tool to allow development of applications that use these devices.

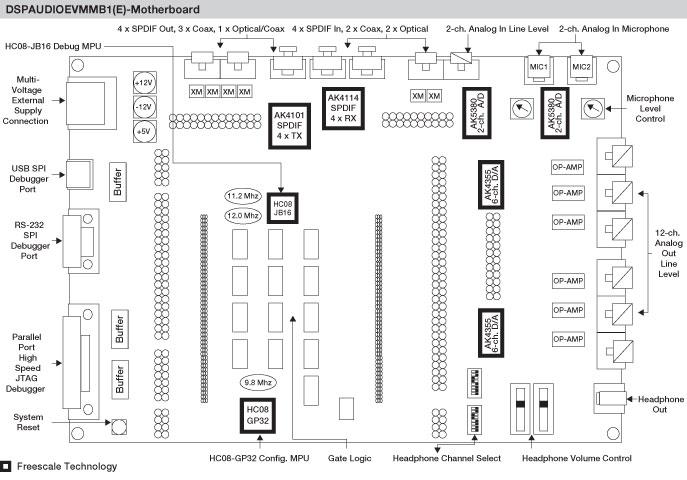

- 包括常规主板(DSPAUDIOEVMMB1E)和符合您DSP需要的特定子板
- 所有主板均都随附可与Symphony Studio软件配合使用的并行线缆
- 此外还提供了第三方USB转JTAG/OnCE适配器
- 每个DSP器件均提供单独的子卡
产品详情
特征
- To allow new users to familiarize themselves with the features of the DSPB563xx/DSPB5672x family architecture by exercising the product feature set
- To serve as a platform for real-time software development, software download to on-chip or on-board RAM, software running and debug with full speed operation and breakpoint capability, and the ability to modify all user-accessible registers, memory, and peripherals though the JTAG/OnCE port
- To allow users to test and evaluate any audio decoders which may be contained in specific ROMs in the Symphony® DSP family
DSPAUDIOEVM针对以下用途而设计：
| 部件名称 | 支持的子卡 | 描述 |
| DSPB56364 | DSPB364DB1 | DSP56364 “B”通用ROM子卡 |
| DSPB56366 | DSPB366DB1 | DSP56366 “B”通用ROM子卡 |
| DSPB56367 | DSPB367DB1 | DSP56367 “B”通用ROM子卡 |
| DSPB56371 | DSPB371DB1E | DSP56371 “B”通用ROM子卡 |
| DSPB56374 | DSPB374DB1 | DSP56374 “B”通用ROM子卡 |
| DSPB56720 | DSPB720DB1E | DSP56720 “B”通用ROM子卡 |
| DSPB56721 | DSPB721DB1E DSPB721DB2E |
采用144LQFP封装的DSP56721 “B”通用ROM子卡 采用80LQFP的DSP56721 “B”通用ROM子卡 |
| DSPB56724 | DSPB724DB1E | DSP56724 “B”通用ROM子卡 |
| DSPB56725 | DSPB725DB2E | DSP56725 “B”通用ROM子卡 |
购买选项
-
DSPB371DB1E
-
DAUGHTER CARD B 56371.
-
DSPB720DB1E
-
B VERSION 720 DAUGHTER CARD - ROHS COMPL.
-
DSPB721DB1E
-
B VERSION 721 DAUGHTER C.
-
DSPB721DB2E
-
B VERSION 721 DAUGHTER CARD.
-
DSPB724DB1E
-
B VERSION 724 DAUGHTER CARD.
-
DSPD374DB1
-
D VERSION 374 DB.
