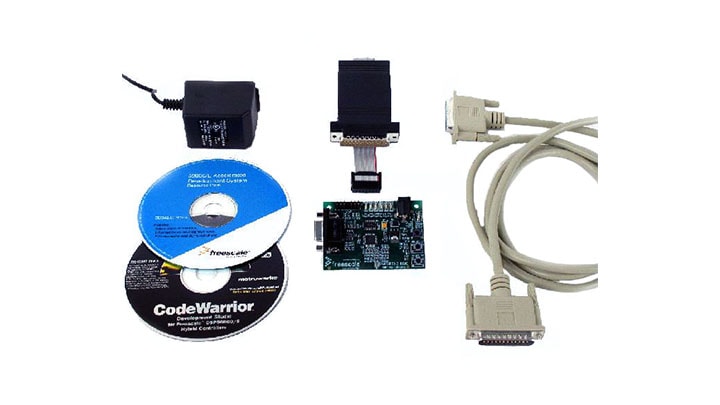

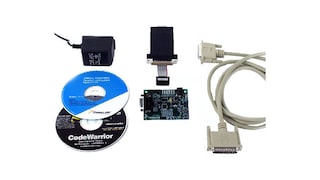

56F8013数字信号控制器的演示板

DEMO56F8013

滚动图片以放大

产品详情

选择区域:

支持的器件

处理器和微控制器

16位56800E DSC内核

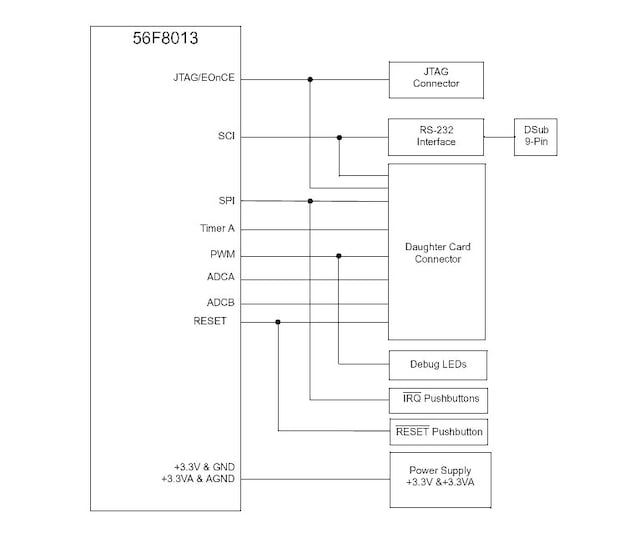

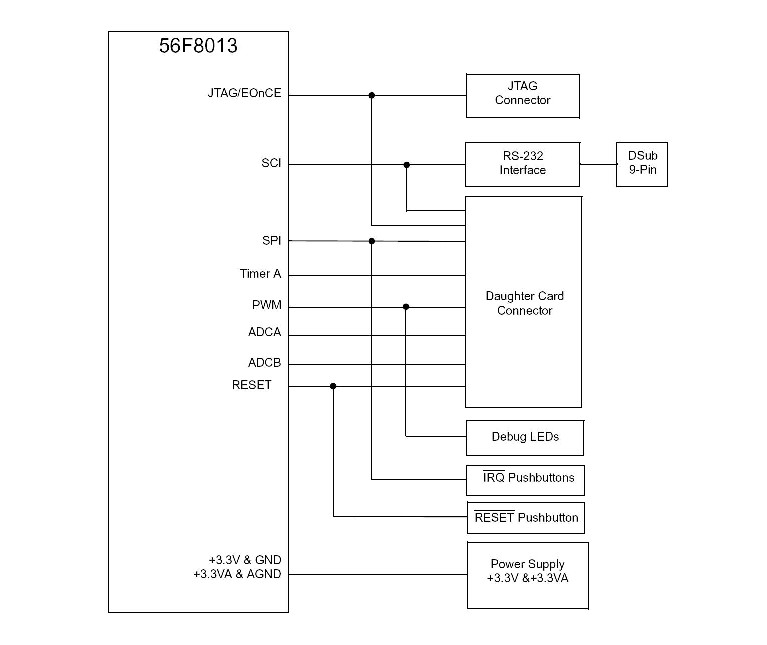

特征

  • 56F8013, a 16-bit +3.3 V hybrid controller operating at 32 MHz

数据连接

  • RS-232接口,用于方便地连接到主处理器 [U2和P3]
  • Daughter card connector, to allow the user to connect his own PWM, ADC, SCI, SPI, or GPIO-compatible peripheral to the digital signal controller

电源管理

  • On-board power regulation provided from an external +9 VDC-supplied power input
  • 发光二极管(LED)电源指示灯

调试

  • 联合测试行动小组(JTAG)端口接口连接器,用于外部调试主机目标接口
  • Six onboard real-time user debugging LEDs

组件

  • Manual RESET push button
  • Manual interrupt #1 push button
  • Manual interrupt #2 push button

购买选项

  • DEMO56F8013-EE

  • MC56F8013 BD W/UNIV PS.

  • CNY619.06
  • 数量为 1
从分销商处购买

文档

快速参考 文档类别.

1-5 / 6 文件

展开

设计资源

选择区域:

设计文件

1-5 / 10 设计文件

  • 印刷电路板与电路图

    PADS PCB Layout Design file for the MC56F8013DEMO board

  • 印刷电路板与电路图

    Netlist for the MC56F8013DEMO board

  • 印刷电路板与电路图

    Fabrication and Assembly GERBER files used to create the MC56F8013DEMO board (modified)

  • 印刷电路板与电路图

    Fabrication and Assembly GERBER files for the MC56F8013DEMO board

  • 印刷电路板与电路图

    GERBER files used to assemble the MC56F8013DEMO board

展开

软件

3 软件文件

  • 代码片段

    Peripheral Example Applications for 56800/E, supporting: ADC, Decoder, ESSI/SSI, EMI, Flash, GPIO, HPI, INTC, I2C, PLL, PWM, Timer, SCI/LIN, SIM, SPI, TOD, EEPROM, Terminal, Button, Codec, LED, Switch.

  • 代码片段

    3-Phase BLDC Motor Control with Hall Sensor Example Application for 56F8013

  • 调试及视觉化工具

    Real-Time Control and Debugging Tool
