评估套件 - MC06XS3517，五通道高边开关

KIT06XS3517EVBE 正常供应

滚动图片以放大

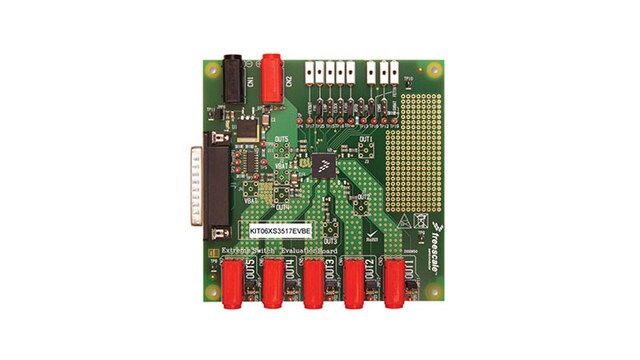

该评估板演示MC06XS3517的功能。MC06XS3517是一款12 V双通道高边开关产品，带有集成式控制功能和大量的保护与诊断功能。它适用于卡车、公共汽车和轻型汽车应用。控制、设备配置和诊断通过一个16位SPI接口执行，可以轻松集成至现有应用。

MC06XS3517专为低压汽车和工业照明应用而设计。其5个低导通电阻MOSFET可以控制5个独立的电阻负载(灯泡、氙灯模块和LED)的高边。编程、控制和诊断通过一个16位串行外设接口(SPI) (3.3 V或5.0 V)完成。每个输出都通过SPI实现其自己的PWM控制。MC06XS3517具有高度周密的故障模式处理，使输出具有高可用性。其多相控制和输出边沿调整改善了电磁兼容性(EMC)性能。

产品详情

特征

主要特性

  • 带预分频器等多相功能的PWM模块
  • 故障模式功能，包括自动重启功能

数据连接

  • 16位SPI，带有菊花链功能
  • Overcurrent shut down detection
  • 电网和极性反接保护
  • 低功耗模式
  • 带有SPI可编程的多路复用开关和板级温度反馈的电流传感输出

用户组件

  • 5个高边开关
  • 完全受保护的开关
  • LEDs control including accurate current sensing and low duty cycle capability
  • 包含电流重新复制的外部智能电源开关控制

工具和操作系统支持

  • 数字诊断功能

购买选项

KIT06XS3517EVBE-Image

点击展开

  • KIT06XS3517EVBE
    正常供应

  • Evaluation Kit - MC06XS3517, Smart High Side Switch Module (Triple 6.0 mOhm and Dual 17 mOhm).

    • KIT06XS3517EVBE硬件
    • 快速参考指南
  • 数量为 1
从分销商处购买
