7A 2:1单芯电池开关电容充电器

PCA9482 正常供应

滚动图片以放大

PCA9482UK是一款高度集成的开关电容转换器，具有嵌入式OVPFET，可为使用单芯电池的快速充电应用提供两倍的输出电流。该器件可采用2:1的开关操作模式，效率非常高（>96.5%，在VVOUT=4V，IVOUT=5A），以1:2的开关操作模式或者采用正反向的1:1模式来运行。

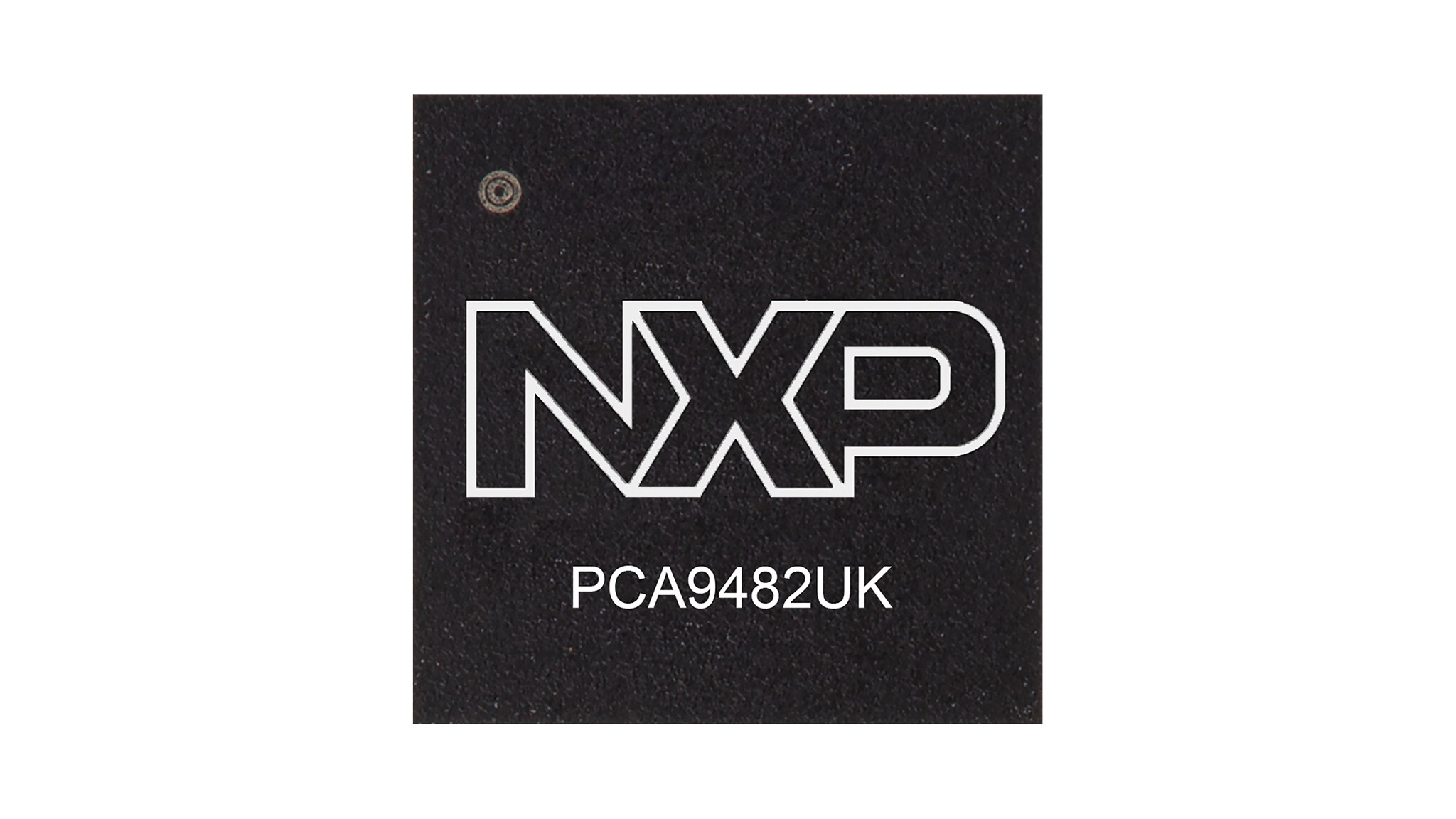

此芯片采用 3.02mm x 2.72mm尺寸、6 x 7凸点和0.4mm间距的WLCSP封装。

产品详情

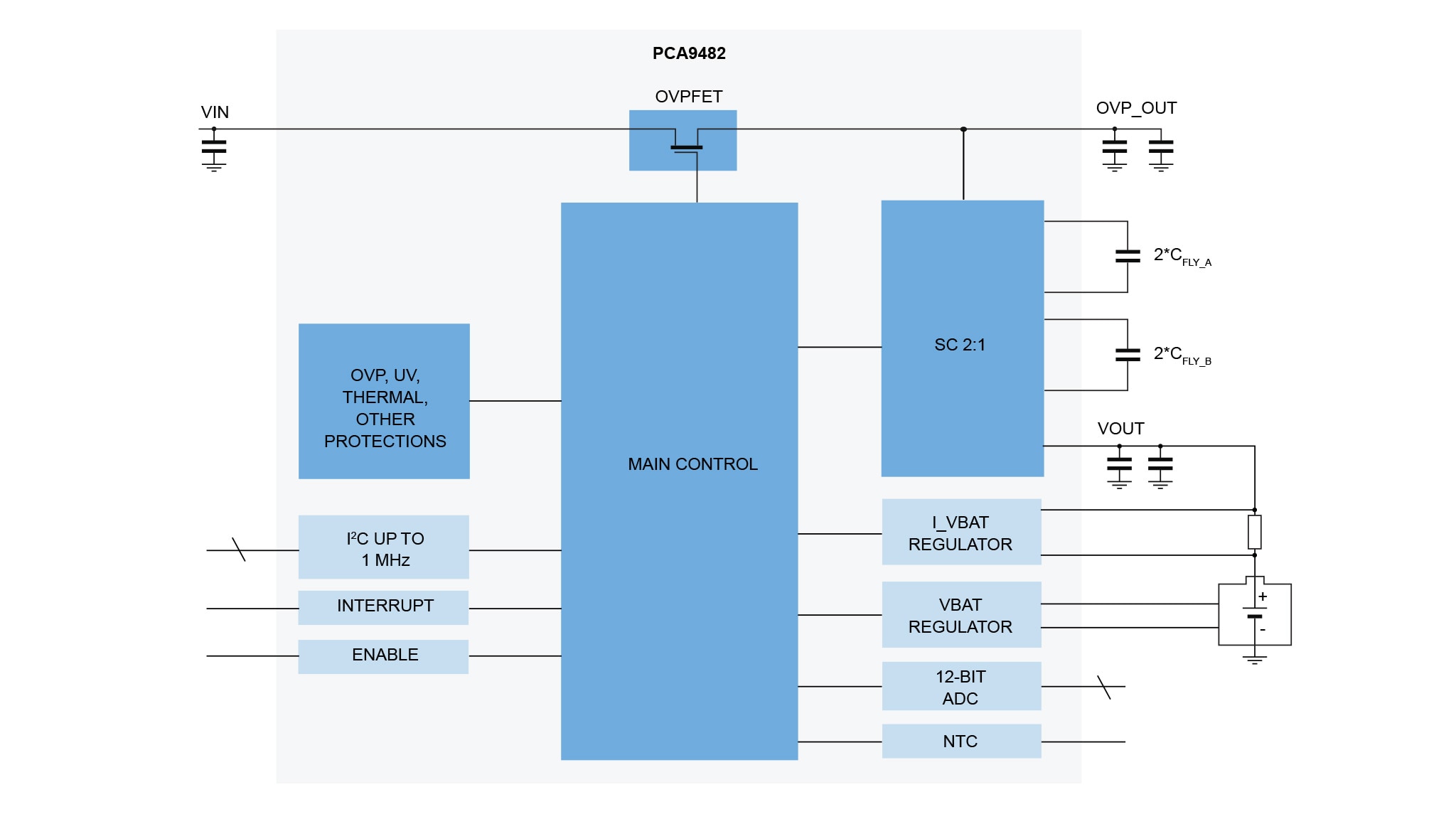

框图

7A 2:1单芯电池开关电容充电器

7 A 2:1 Switched Capacitor Charger for Single Cell Battery
获取框图PDF

特性

主要特性

  • 单芯电池用的双相切换电容器
  • 多种操作模式：2:1、1:2、正反向1:1
  • 输入电压：5V至10.2V
  • 最大输出电流为7A
  • 保护和稳压用的集成OVP FET

性能

  • >5A时效率高达96.5%

保护

  • 过压保护
  • 欠压保护
  • 热关机
  • 启动时OVP_OUT和快速充电电容情况下的短路保护
  • 过流和逆流保护
  • 看门狗定时器

其他

  • 并联充电的主从器件
  • 8通道12位ADC
  • 1Mbit/s I²C总线目标接口
