TEA1733T 65W 19.5V笔记本电脑适配器

TEA1733DB

滚动图片以放大

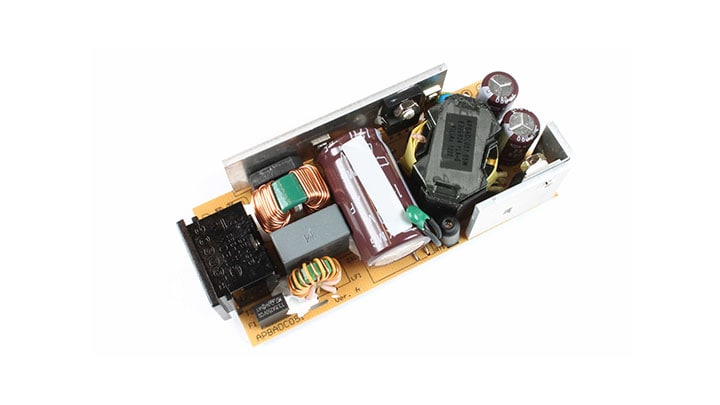

该板演示了65W/19.5V AC/DC SMPS（笔记本电脑）电源。该应用符合EMI CISPR22和Energy STAR标准。所用的拓扑是固定频率反激式。该适配器内置了多种保护和补偿功能，具有出色的效率和待机功耗性能。

产品详情

支持的器件

电源管理

AC-DC控制器

  • TEA173X: 低压启动反激控制器适用于定频/CCM

特性

主要特性

  • 采用的IC：TEA1733T SOP8固定频率控制器
  • 过流保护（OCP）
  • 过功率保护（OPP）
  • 平均效率：>87%
  • 高/低线路补偿
  • 低纹波和噪声
  • 小规格
  • 低成本实施
  • 符合ENERGY STAR标准
  • 符合EMI CISPR22标准
  • 参考设计订购代码：TEA1733DB/T/65W (9352 913 02598)

电源管理

  • 通用市电工作电压：90-264V (AC)
  • 输出：65W 19.5V
  • 空载功耗：@230V (AC) <100mW
