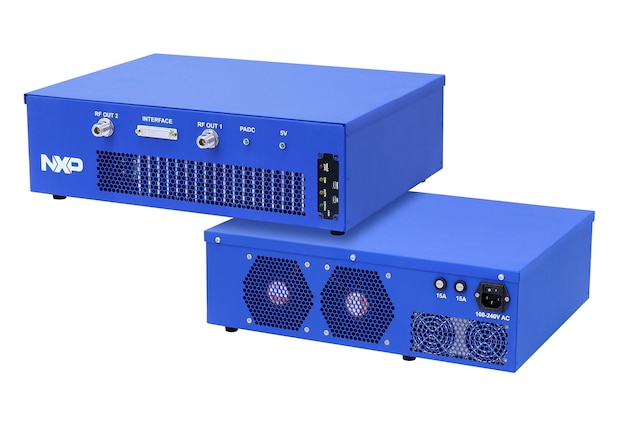

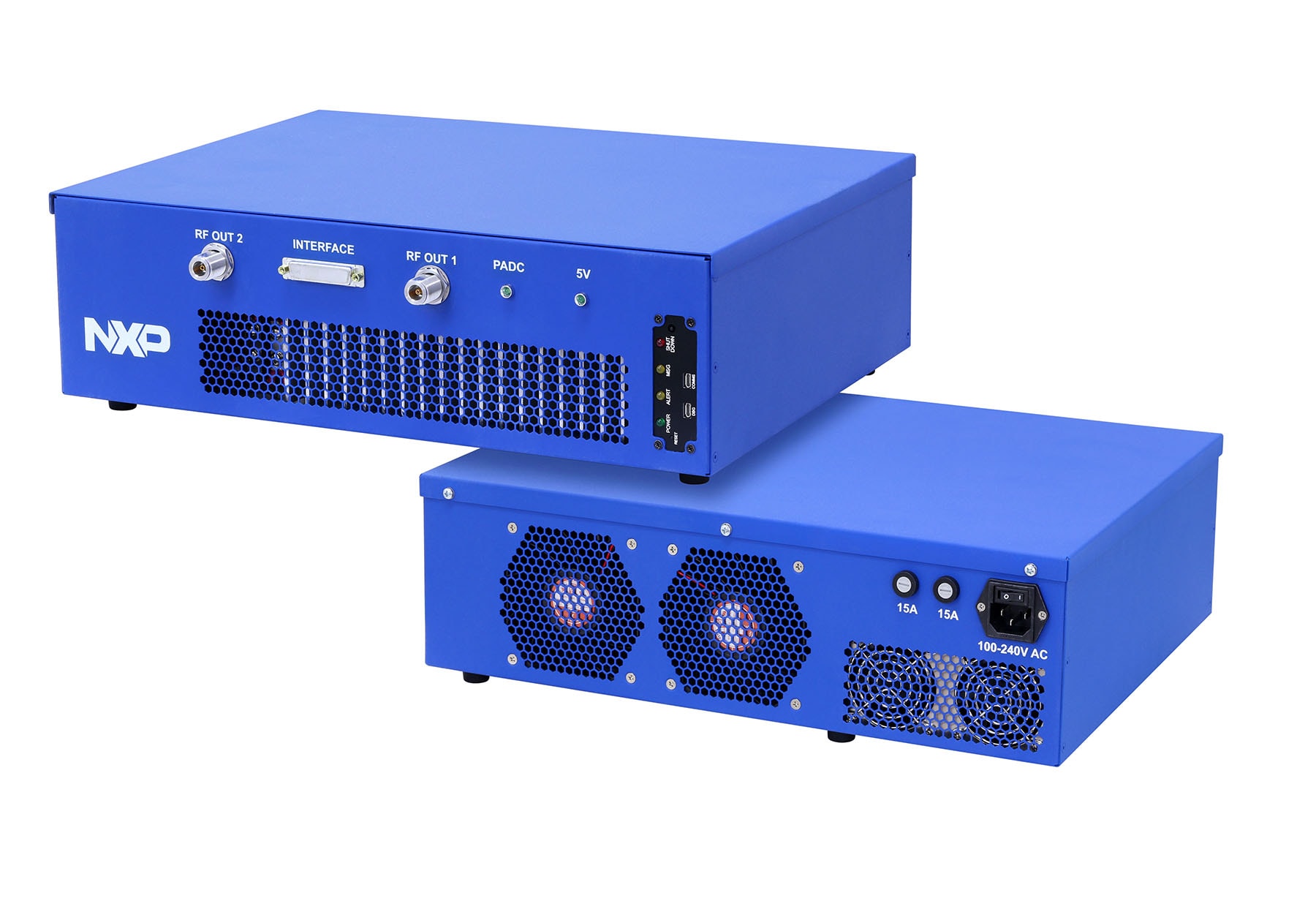

The RFEL24-500 RF energy lab box is a 2 x 250 W, fully integrated RF development system for the 2.45 GHz RFEM24-250 module. It is designed for RF and non-RF engineers to test and prototype innovative solutions without the need to invest in an extensive RF test bench. It allows designers to explore the benefits of solid-state RF energy for industrial, scientific and medical applications.
产品详情
Features
- RF signal generator
- Two 2.45 GHz, 50 ohm, 250 W modules
- Power, frequency and phase control
- Operated by PC-based graphical user interface
- Warnings and error thresholds for safe operation
- Data logging
- Thermostatically controlled fans
- Frequency and phase sweep capabilities for best match optimization
- High accuracy RF power measurement
- Continuous monitoring of forward and reflected RF power, current and temperature

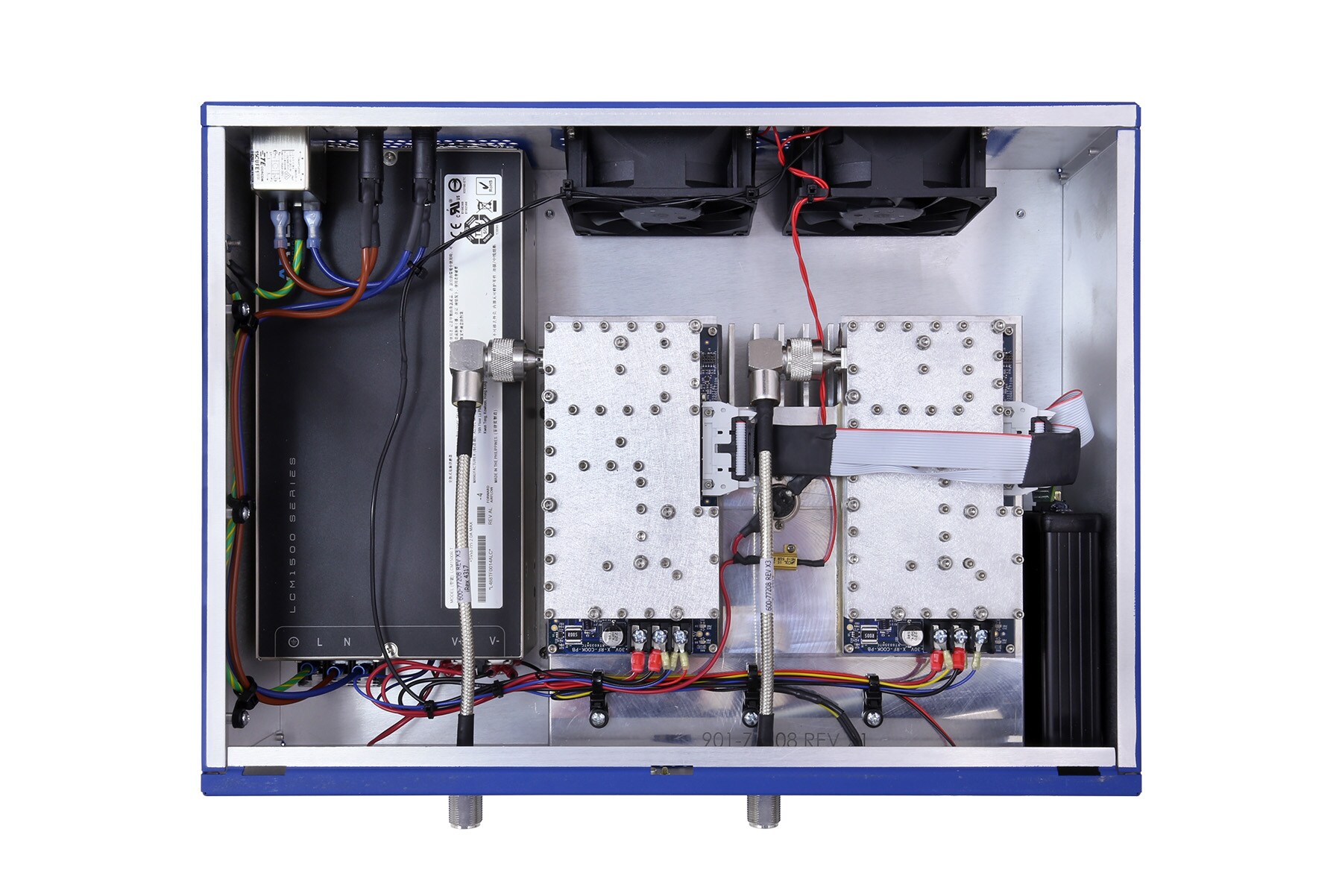

RF Energy Lab Box Includes
- Two RFEM24-250 RF energy modules
- PC communications interface
- Heatsink
- Power supply unit

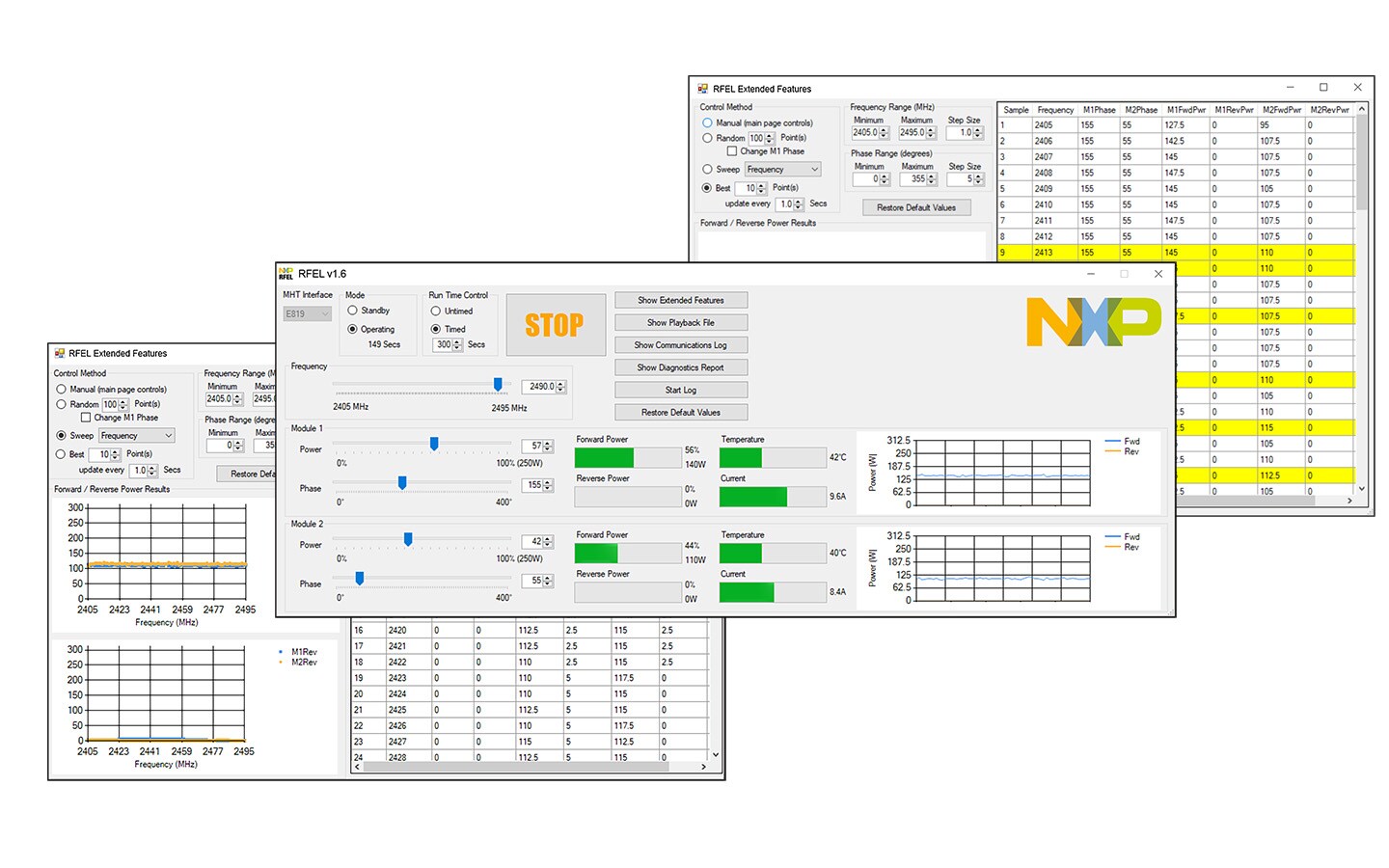

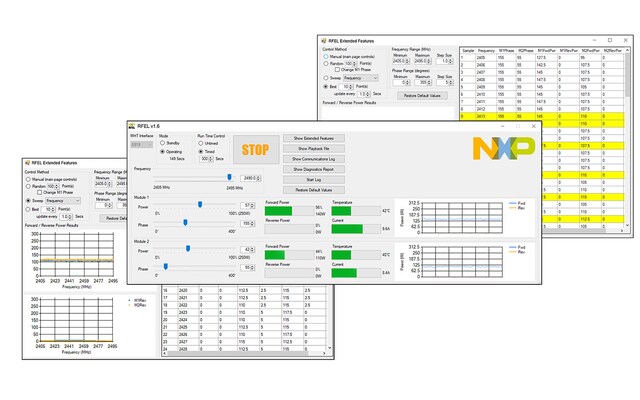

- Windows GUI
- .dll to enable MATLAB®, LabVIEW, .NET
Related Solutions
- RFEM24-250: 250 W RF generator, enabling features such as scalable power and phase control targeted for replacing vacuum tube based applications
- RFEP24-300: 3-stage RF pallet lineup with pre-driver, driver and final stage amplifiers
Typical Applications
- Industrial
- Heating
- Welding
- Drying
- Plasma
- Medical
- RF ablation
- Diathermy
- Skin treatment
- Cooking
- Restaurants
- Consumer
- Lighting
