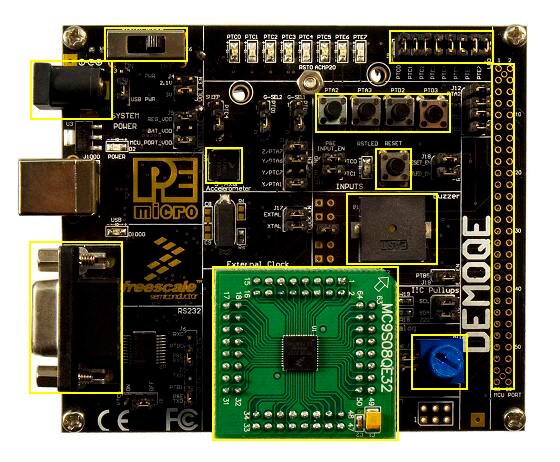

The DEMO9S08QE32 is a low-cost development system designed for demonstrating, evaluating, and debugging the NXP^® MC9S08QE32 MCU.

P&E’s Embedded Multilink circuitry on the DEMO9S08QE32 board allows the processor to be debugged and programmed via USB from the PC. In addition, the demo board can be powered using the USB bus.

产品详情

支持的器件

处理器和微控制器

8位S08 MCU

S08QE: 8位Flexis QE MCU

MC9S08QE Family Demonstration Boards

Features	DEMOQE8	DEMOQE32	DEMOQE128
Daughter Card	DC9S08QE8	DC9S08QE32	DC9S08QE128 DC51QE128
Supported Devices	MC9S08QE8CLC	MC9S08QE32CFT	MC9S08QE128CLH MCF51QE128CLH
3-axis Accelerometer	YES	YES	YES
LEDS w/ enable	8	8	8
User Push Buttons	4	4	4
Connector	RS-232 Serial Port	RS-232 Serial Port	RS-232 Serial Port
P&E micro Embedded Multilink USB Connector	YES	YES	YES
ON/OFF Power Switch	YES	YES	YES
