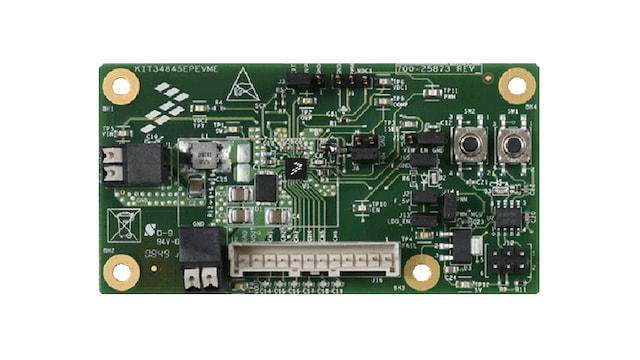

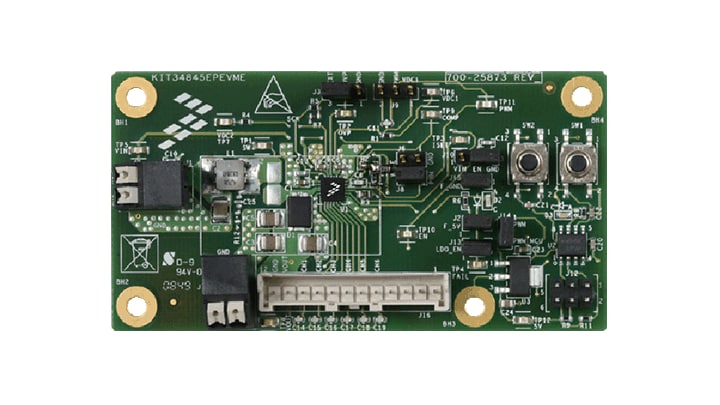

Evaluation Kit - 34845, LED Backlight Driver, Power Supply
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。
Evaluation kit for the 34845 products, which represent high efficiency, LED drivers for use in backlighting LCD displays from 10” to 17”+. Operating from supplies of 5.0 V to 21 V, the 34845 series is capable of driving up to 16 LEDs in series in each 6 strings. The LED current tolerance in the 6 strings is within ±2% and is set using a resistor to GND.
PWM dimming is performed by applying a PWM input signal to the PWM pin which modulates the LED channels directly. The integrated boost converter uses dynamic headroom control to automatically set the output voltage.
产品详情
特征
Power Management
- Input voltage of 5.0 to 21 V
- Boost output voltage up to 60 V
- 2.0 A integrated boost FET
- Programmable LED current between 3.0 mA and 30 mA
- Fixed boost frequency to 600 kHz or 1.2 MHz
- OTP, OCP, UVLO fault detection, LED short/open protection
