ColdFire IEEE1588 PTP Demo SW
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。
Archived content is no longer updated and is made available for historical reference only.

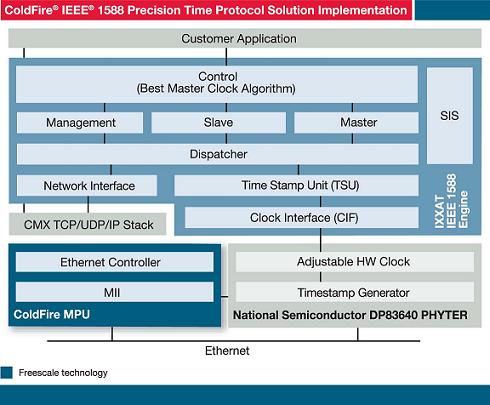

NXP® Semiconductors has aligned with National Semiconductor, IXXAT Automation and CMX Systems to provide a comprehensive hardware and software solution to support the IEEE® 1588 Precision Time Protocol (PTP). The hardware components comprise a ColdFire® microprocessor unit (MPU) and the new National Semiconductor DP83640 PHYTER®—an Ethernet PHY transceiver with PTP support. The software components include the IEEE 1588 software stack, supplied by IXXAT and ported to the ColdFire MPU supporting the Precision Phyter, and the TCP/IP stack, supplied by CMX Systems. This solution can be combined with any ColdFire processor, but NXP is currently offering the M5234BCCKIT, a cost-effective ColdFire MCF5234 evaluation system, which incorporates the DP83640 PHYTER allowing early development of an IEEE 1588 solution.
产品详情
Features
- A demonstration of the IEEE1588 Precision Time Protocol (PTP) implemented on a ColdFire® Ethernet enabled device
- Highly accurate time stamping occurring with tens of nanoseconds precision
- Integration of the CMX TCP/IP Stack
- Integration of IXAAT’s IEEE 1588 PTP Protocol Software Stack
- Integration of National Semiconductors DP83640 PHYTER hardware
