1.8-1215 MHz，85 W连续波，50 V LDMOS宽带射频功率晶体管
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

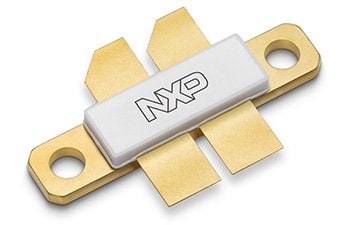

高度耐用的MRF085H器件，适用于高VSWR工业、科学和医疗应用，以及sub-GHz航空航天、国防和移动无线电应用。此器件采用输入和输出未匹配设计，支持1.8-1215 MHz的更宽频率范围。
典型应用
产品详情
射频性能表
Typical Performance
VDD = 50 Vdc| Frequency (MHz) |
Signal Type | Pout (W) |
Gps (dB) |
ηD (%) |
| 30-520 (1,2) | CW | 50 CW | 14.0 | 40.0 |
| 520 (3) | CW | 85 CW | 25.6 | 73.3 |
Load Mismatch/Ruggedness
| Frequency (MHz) |
Signal Type | VSWR | Pin (W) |
Test Voltage |
Result |
| 520 (3) | CW | > 65:1 at all Phase Angles | 0.56 (3 dB Overdrive) | 50 | No Device Degradation |
2. The values shown are the minimum measured performance numbers across the indicated frequency range.
3. Measured in 520 MHz narrowband test circuit.
