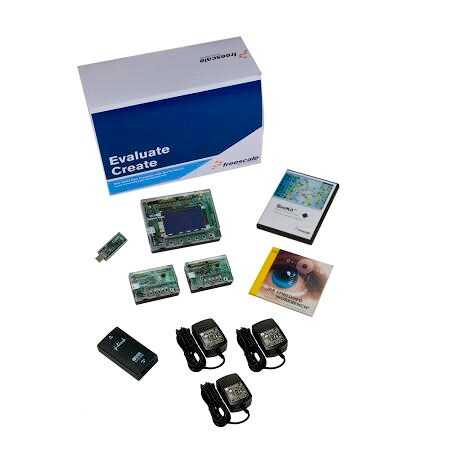

The complete set of hardware platforms for evaluating the MC1322x platform in package allows you to select the hardware and software platform that best meets your needs.

  • The development boards include LEDs, push buttons, connectors, header pins and programming/debug port
  • The boards can be powered by batteries, DC adapter or USB port
  • JTAG port allows easy programming of the MC1322x flash memory via the J-link JTAG debugger, which enables users to program a MCU with a variety of sample applications included with the BeeKit® software
  • The MC1322x development kits are the ideal platform for complex IEEE® 802.15.4 and ZigBee® applications by providing of memory and expansion capabilities

产品详情

Features

1322x-SRB (Sensor Reference Board)

  • 2.4 GHz wireless nodes compatible with the IEEE 802.15.4 standard
  • Based on the MC13224V platform in a package
  • MMA7260Q 3-axis acceleration sensor, MPXV5010G pressure sensor, and temperature sensor for easy demonstration of wireless data collection
  • Printed F antenna
  • Onboard expansion capabilities for external application-specific development activities
  • Programmable flash
  • J-Tag port for reprogramming and in-circuit hardware debugging
  • USB port to interface with PC
  • Joystick, buttons and LEDs for demonstration, monitoring and control
  • Connections for battery or external power supply

1322x-NCB (Network Coordinator Board)

  • 2.4 GHz wireless nodes compatible with the IEEE 802.15.4 standard
  • Based on the MC13224V platform in a package
  • Graphic LCD display
  • SMA connector with external antenna
    Onboard expansion capabilities for external application-specific development activities
  • Programmable flash
  • J-Tag port for reprogramming and in-circuit hardware debugging
  • Nexus debug interface
  • USB port to interface with PC
  • Joystick, buttons and LEDs for demonstration, monitoring and control
  • Connections for battery or external power supply

1322x-LPB (Low-Power Board)

  • 2.4 GHz wireless nodes compatible with the IEEE 802.15.4 standard
  • Based on the MC13224V platform in a package
  • Onboard expansion capabilities for external application-specific development activities
  • Programmable flash
  • J-Tag port for reprogramming and in-circuit hardware debugging
  • Buttons and LEDs for demonstration, monitoring, and control
  • Connections for battery or external power supply
  • Lowest power board for current measurements

1322x-USB (USB dongle and 802.15.4/ZigBee packet sniffer)

  • 2.4 GHz wireless nodes compatible with the IEEE 802.15.4 standard
  • Based on the MC13224V platform in a package
  • Programmable flash through USB port

购买选项

1322XEVK-SFTW-Image

点击展开

1322XEVK-SFTW
正常供应

1322X EVK WITH LICENSE.

    $3999.00 USD
    待定库存
    加入购物车
    从分销商处购买
    13226PRO-DBG-Image

    点击展开

    13226PRO-DBG
    正常供应

    13226 ZIGBEE PRO KIT.

      从分销商处购买
      1322XDSK-DBG-Image

      点击展开

      1322XDSK-DBG
      正常供应

      1322X DSK WITH J-LINK.
