1300 MHz, 250 W, 50 V Lateral N-Channel RF Power MOSFETs
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

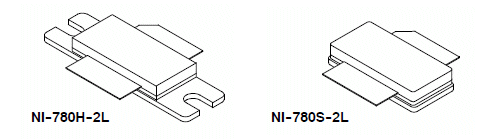

RF Power transistors, MMRF1005HR5 and MMRF1005HSR5, are designed for CW and pulse applications operating at 1300 MHz. These devices are suitable for use in defense and commercial CW and pulse applications, such as DME/IFF systems.
产品详情
RF Performance Tables
Typical Pulse Performance
VDD = 50 Vdc, IDQ = 100 mA| Signal Type | Pout (W) |
f (MHz) |
Gps (dB) |
ηD (%) |
IRL (dB) |
| Pulse (200 µsec, 10% Duty Cycle) |
250 Peak | 1300 | 22.7 | 57.0 | –18 |
- Capable of Handling a Load Mismatch of 10:1 VSWR, @ 50 Vdc, 1300 MHz at all Phase Angles, 250 W Pulse Peak Power, 10% Duty Cycle, 200 µsec
Typical CW Performance
VDD = 50 Vdc, IDQ = 10 mA, TC = 61°C| Signal Type | Pout (W) |
f (MHz) |
Gps (dB) |
ηD (%) |
IRL (dB) |
| CW | 230 CW | 1300 | 20.0 | 53.0 | –25 |
