汽车网络处理S32G评估板快速入门
上次修改时间：
2020-08-17 10:28:00支持

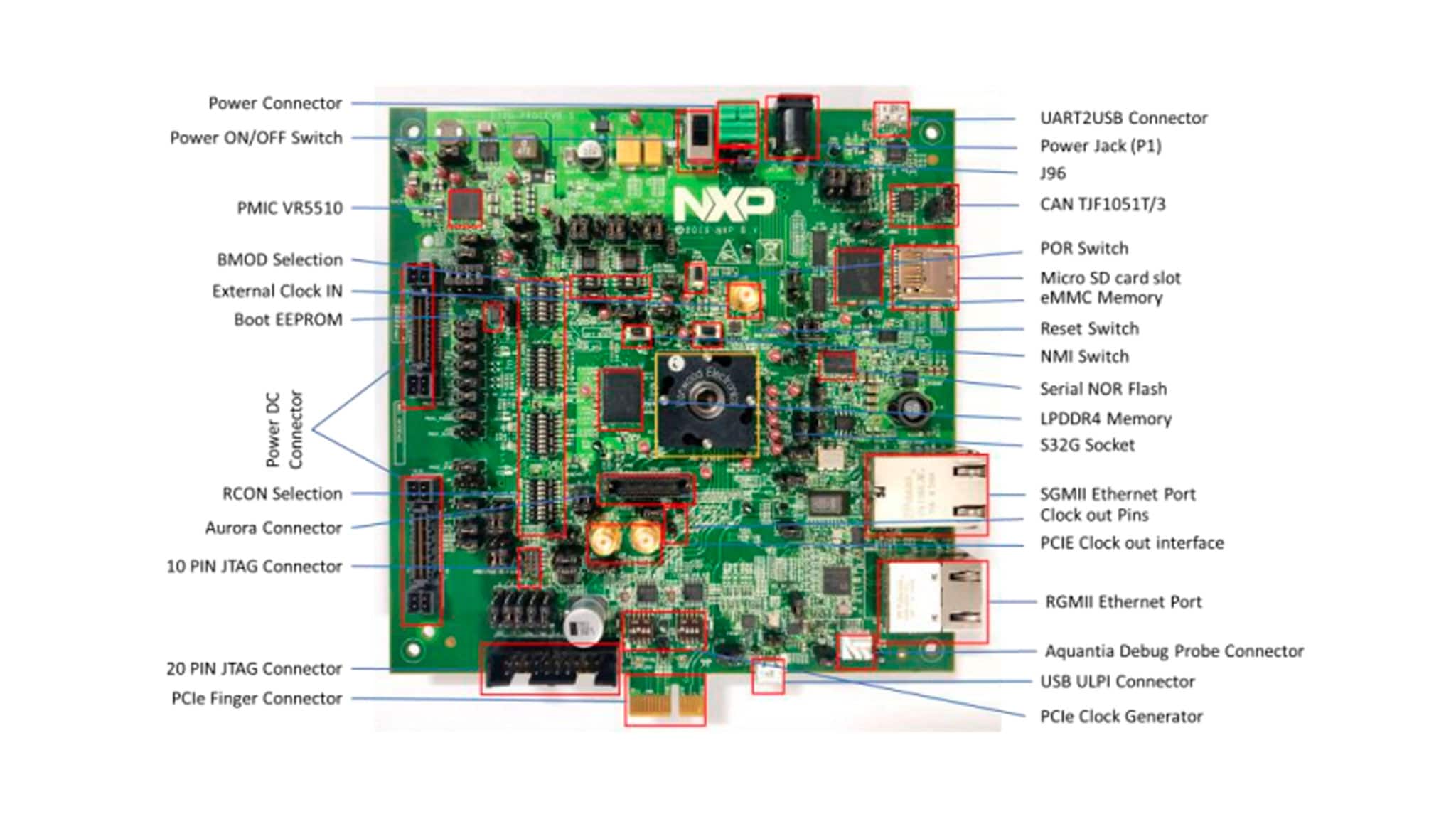

S32G2车联网评估板
1. 开箱即用
2. 获取软件
2.1 安装Tera Term控制台
Tera Term是支持UTF-8协议的免费开源软件终端仿真器。现在TTSSH支持SSH2协议（最初版本支持SSH1）。
Tera Term目前是Tera Term Pro 2.3，是后续版本。获得了原作者的正式认可。
3. 连接
让我们开始试用它。
3.1 安装S32G插槽和散热器

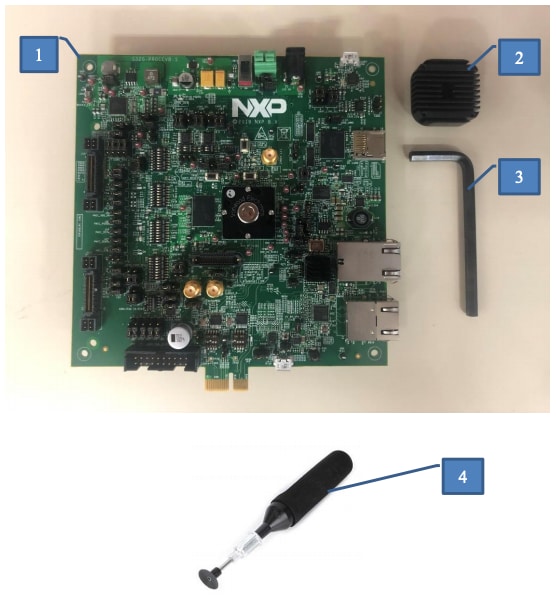

- S32G-PROCEVB-S：带Ironwood Electronics SG-BGA-6124插槽的S32G处理器模块
- M4159散热器
- 六角扳手
- Timiy真空吸笔工具
观看视频，了解如何安装插槽和散热器。您还可以使用分步指南。

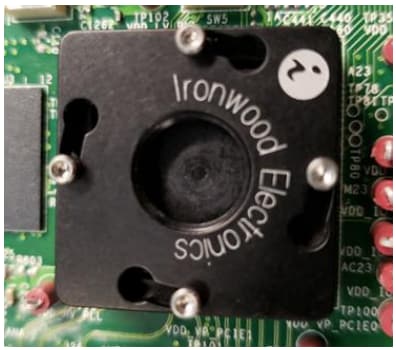

- 向左旋转内六角螺丝，松开插槽顶部。

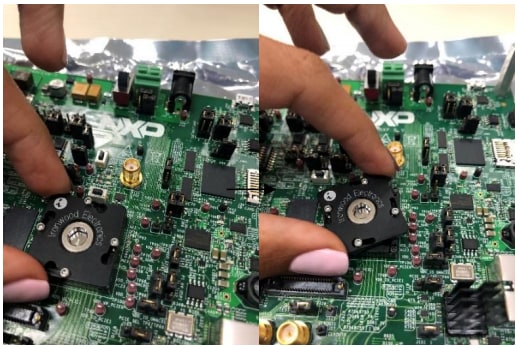

- 向左转动并向上提起插槽盖，取下插槽盖。将其放到一边。

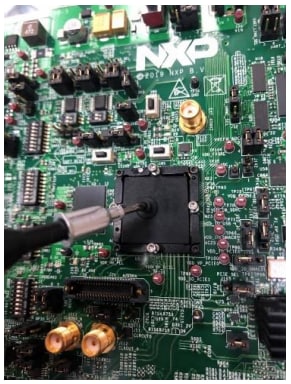

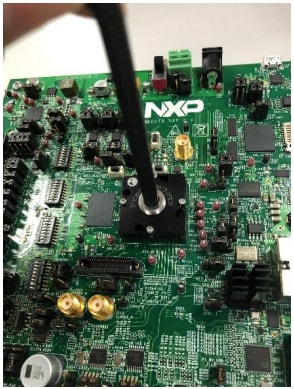

- 使用真空工具取下并从插槽中卸下压板。将其放到一边。

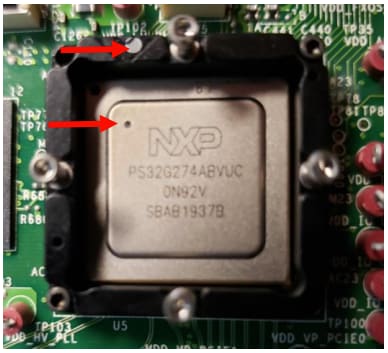

- 4. 使用真空工具，取下S32G并将其放在插槽底座中。
- 用六角扳手从插槽盖上完全卸下螺丝。

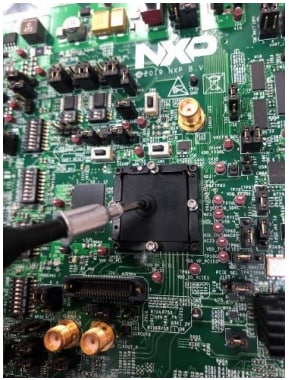

- 使用真空工具将压板安装在S32G设备顶部。
- 装回插槽盖并向右旋转，锁定到位。

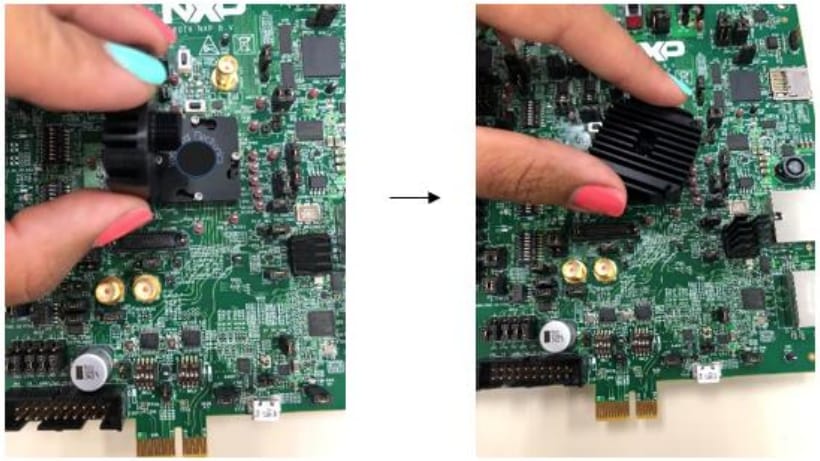

- 顺时针缓慢旋转散热器，直到与压板初次接触。转动1/4圈，充分接触。切勿对插槽施加过大压力。
注意事项
切勿用力推动散热器。

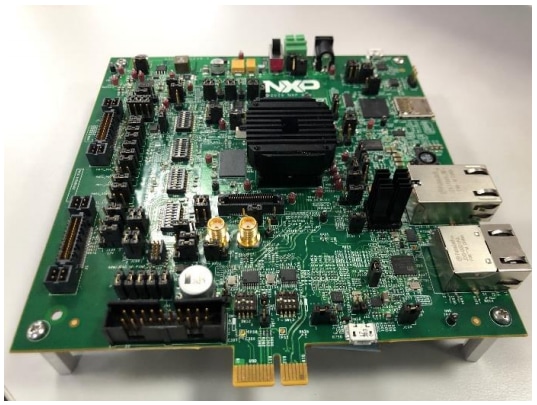

安装完成后，应如图中所示：
3.2 连接12V电源

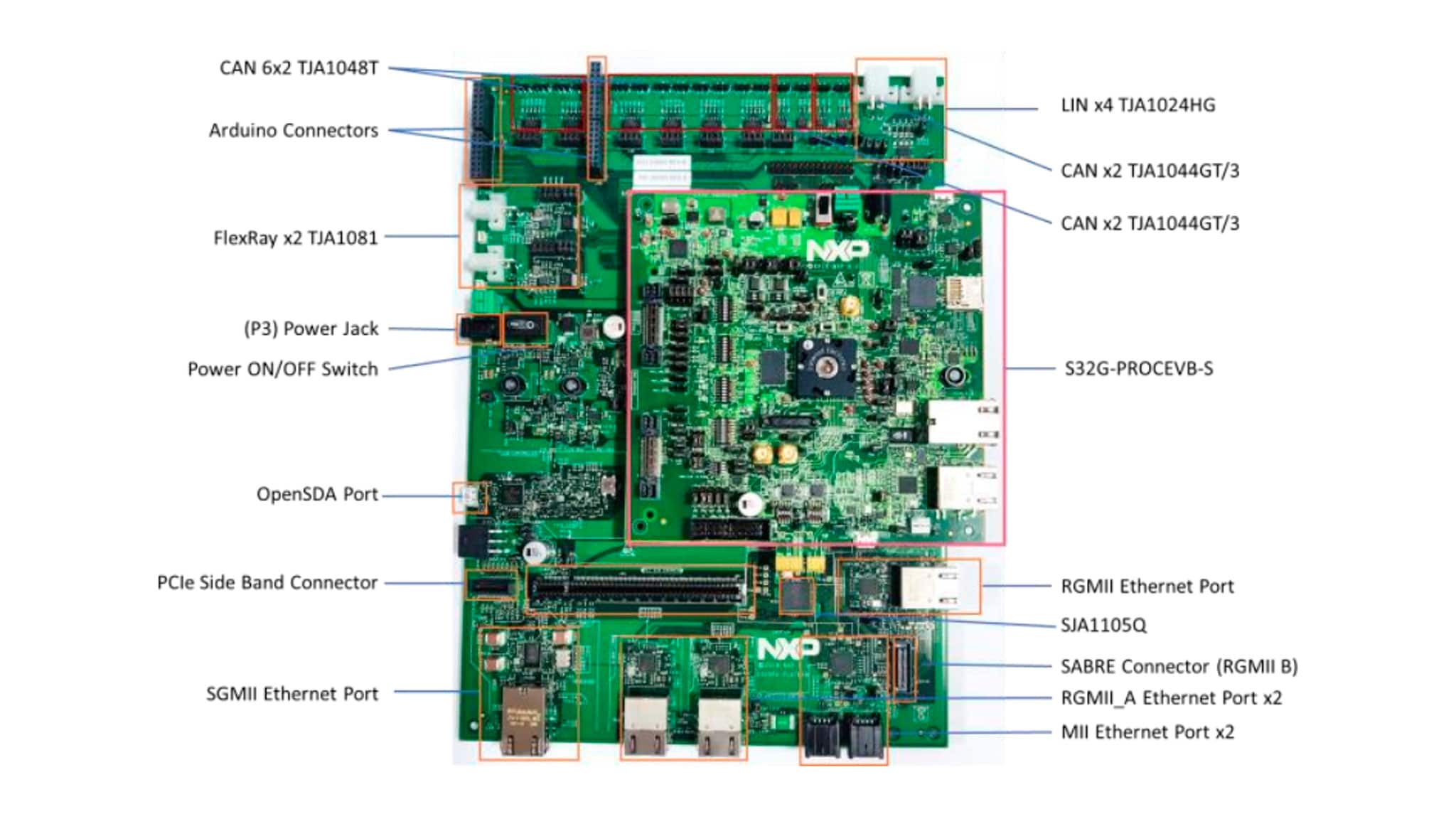

当将S32G-PROCEVB-S堆叠在S32GRV-PLATEVB上时:
S32G-PROCEVB-S上的跳线J96应在位置1-2，只需要为S32GRVPLATEVB通电。
将电源连接至S32GRV-PLATEVB上的12 V电源插孔P3 。
独立组网(SA)使用S32G-PROCEVB-S时：
跳线J96应在位置2-3。
将电源连接至S32G-PROCEVB-S上的12 V电源插孔P1。
4. 构建、运行
4.1 设置Tera Term 4控制台
- 打开Windows PC上的Tera Term。
- 选择与S32G-PROCEVB-S的微型USB连接的串行端口
J58，然后点击OK。 - 前往Setup>Serial Port，选择
115200为波特率。
4.2 为S32G-VNP-EVB通电
打开S32GRV-PLATEVB上的电源开关SW1 ，并打开S32G-PROCEVB-S上的电源开关SW10。
4.3 运行诊断
诊断实用程序自动从SD卡执行。
Tera Term上的控制台显示屏显示诊断测试的状态。
SD卡镜像日志
打开S32GRV-PLATEVB上的电源开关SW1 ，并打开S32G-PROCEVB-S上的电源开关SW10。
SD卡镜像日志
我们提供带有S32G-VNP-EVB和S32G-VNP-EVB镜像的即用型SD卡，帮助用户入门和记录数据
Diagnostic Test Release 201909XX
CPU: NXP S32G
Board: S32G274A Board
MC_CGM_0 Clock Mux 0 -> XBAR_CLK (Core Clock)
CORE_DFS_1 Clock -> MC_CGM_0 Clock Mux 0
CORE_VCO Clock -> CORE_DFS_1 Clock
FXOSC -> CORE_VCO Clock
FXOSC: 40000000Hz
CORE_VCO Clock: 2000000000Hz
CORE_DFS Clock: 1000000000Hz
XBAR_CLK: 500000000Hz
Test#1: Setup Init - OK
Test#2: Running LINFLEXD Test
FXOSC -> PERIPH_PLL_PHI3_CLK
FXOSC: 40000000Hz
MC_CGM_0 Clock Mux 8 -> LIN_CLK
LIN CLK = 80000000Hz
LIN 0 Mode: UART
UART 0 Mode: 8-Bit Mode
UART 0 Baud Rate: 115273bps
UART 0 TX_INT: Enabled
UART 0 RX_INT: Enabled
UART 0 SIUL2 Settings: PK15, PL00
Testing LINFLEX Rx
Press enter to continue
Test#2: Test OK
Test#3: Running STM Test
STM CLK = XBAR_CLK
STM Instance: 0
STM 0 Channel: 0
STM 0 Ticks: 3855
STM 0 NVIC ID: 24
STM CLK = XBAR_CLK
STM Instance: 0
STM 0 Channel: 1
STM 0 Ticks: 3855
STM 0 NVIC ID: 24
STM CLK = XBAR_CLK
STM Instance: 0
STM 0 Channel: 2
STM 0 Ticks: 3855
STM 0 NVIC ID: 24
STM CLK = XBAR_CLK
STM Instance: 0
STM 0 Channel: 3
STM 0 Ticks: 3855
STM 0 NVIC ID: 24
Test#3: Test OK
Test#4: Running PIT Test
PIT CLK = XBAR_CLK
PIT Instance: 0
PIT 0 Counter: DOWN
PIT 0 Timer: 0
PIT 0 NVIC ID: 53
PIT 0 Ticks: 4096
PIT CLK = XBAR_CLK
PIT Instance: 0
PIT 0 Counter: DOWN
PIT 0 Timer: 1
PIT 0 NVIC ID: 53
PIT 0 Ticks: 4096
PIT CLK = XBAR_CLK
PIT Instance: 0
PIT 0 Counter: DOWN
PIT 0 Timer: 2
PIT 0 NVIC ID: 53
PIT 0 Ticks: 4096
PIT CLK = XBAR_CLK
PIT Instance: 0
PIT 0 Counter: DOWN
PIT 0 Timer: 3
PIT 0 NVIC ID: 53
PIT 0 Ticks: 4096
PIT CLK = XBAR_CLK
PIT Instance: 0
PIT 0 Counter: DOWN
PIT 0 Timer: 4
PIT 0 NVIC ID: 53
PIT 0 Ticks: 4096
PIT CLK = XBAR_CLK
PIT Instance: 0
PIT 0 Counter: DOWN
PIT 0 Timer: 5
PIT 0 NVIC ID: 53
PIT 0 Ticks: 4096
PIT CLK = XBAR_CLK
PIT Instance: 0
PIT 0 Counter: DOWN
PIT 0 Timer: 6
PIT 0 NVIC ID: 53
PIT 0 Ticks: 4096
Test#4: Test OK
Test#5: Running SWT Test
SWT CLK = XBAR_CLK
SWT Instance: 0
SWT 0 Counter: UP
SWT 0 NVIC ID: 14
SWT 0 Time Out Value: 392400
Test#5: Test OK
Test#6: Running I2C_0 Test
I2C CLK source= XBAR_DIV3_CLK
I2C CLK = 166666666Hz
FXOSC -> CORE_VCO Clock
FXOSC: 40000000Hz
CORE_VCO Clock -> CORE_DFS_1 Clock
CORE_DFS Clock: 1000000000Hz
CORE_DFS_1 Clock -> XBAR Clock
XBAR_CLK: 500000000Hz
I2C 0 Mode: Controller
I2C Target Address = 0xA0
Test#6: Test OK
Test#7: Running DSPI_5 Test
PERIPH_PLL_PHI7_CLK -> DSPI CLK
FXOSC -> PERIPH_PLL_PHI7_CLK
FXOSC: 40000000Hz
DSPI CLK = 1Hz
DSPI 5 Mode: CONTROLLER
DSPI 5 Frame Size: 7Byte
DSPI 5 CPOL : 0
DSPI 5 CPHA : 1
DSPI 5 Loopback with DSPI 1
DSPI 5 Data Length: 8 Bytes
Test#7: Test OK
Test#8: Running GMAC RX Test
GMAC No of Receive Descriptors: 5
GMAC RX NVIC ID: 59
GMAC Buffer Max Length: 1536
ARP Packets Received: 0
ICMP Packets Receive: 0
UDP Packets Received: 2
TCP Packets Received: 0
Unidentified IPv4 Packets Received: 0
Unidentified Packets Received: 3
Test#8: Test OK
Test#9: Running GMAC TX Test
GMAC Mode: RGMII
GMAC RX CLK Direction: PHY to MAC
GMAC TX CLK Direction: MAC to PHY
GMAC Speed: 1Gbps
PERIPH_PLL_PHI5_CLK -> GMAC TX CLK
FXOSC -> PERIPH_PLL_PHI5_CLK
FXOSC: 40000000Hz
GMAC TX CLCK: 133333334Hz
GMAC_EXT_RX_CLK -> GMAC RX CLK
GMAC Communication Mode: Full Duplex
GMAC DMA channel: 0
GMAC DMA Burst Size: 16Bytes
GMAC Source MAC: 0:4:9F:22:E:B0
GMAC Destination MAC: FF:FF:FF:FF:FF:FF
GMAC Source IP: 192.168.0.10
GMAC Destination IP: 192.168.0.11
GMAC Source Port: 2001
GMAC Destination Port: 12345
GMAC No of Transmit Descriptors: 50
GMAC Packet Type: UDP
Test#9: Test OK
Test#10: Running LLCE CAN Loopback Tests
FXOSC -> CAN CLK
FXOSC: 40000000Hz
CAN CLK = 40000000Hz
LLCE_CAN_2 Loopback with LLCE_CAN_3
LLCE_CAN 2&3 ID Type: Standard
LLCE_CAN 2&3 Data Size: 32 Bytes
Running LLCE CAN 2 & 3 Test: Test OK
Running LLCE CAN 2 & 3 Test: Test OK
Running LLCE CAN 2 & 3 Test: Test OK
Running LLCE CAN 2 & 3 Test: Test OK
Running LLCE CAN 2 & 3 Test: Test OK
Running LLCE CAN 2 & 3 Test: Test OK
Running LLCE CAN 2 & 3 Test: Test OK
Running LLCE CAN 2 & 3 Test: Test OK
Running LLCE CAN 2 & 3 Test: Test OK
Running LLCE CAN 2 & 3 Test: Test OK
Test#11: Running LLCE LIN loopback Tests
FXOSC -> PERIPH_PLL_PHI3_CLK
FXOSC: 40000000Hz
MC_CGM_0 Clock Mux 8 -> LIN_BAUD_CLK
LLCE_LIN_BAUD_CLK = 83333334Hz
LLCE_LIN_0 connected with MPC5748G DEVKIT LIN_0
ID : 0x1
Data Size: 8 Bytes
LLCE_LIN_1 connected with MPC5748G DEVKIT LIN_0
ID : 0x1
Data Size: 8 Bytes
LLCE_LIN_2 connected with MPC5748G DEVKIT LIN_0
ID : 0x1
Data Size: 8 Bytes
LLCE_LIN_3 connected with MPC5748G DEVKIT LIN_0
ID : 0x1
Data Size: 8 Bytes
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
Running LLCE LIN 0 Test
LLCE LIN 0 message transmitted, Check the received data on follower
Running LLCE LIN 1 Test
LLCE LIN 1 message transmitted, Check the received data on follower
Running LLCE LIN 2 Test
LLCE LIN 2 message transmitted, Check the follower for received data
Running LLCE LIN 3 Test
LLCE LIN 3 message transmitted, Check the received data on follower
All tests complete, Core in While(1)
