  • LLC Resonant Converter with Sync Rectifier

LLC Resonant Converter with Sync Rectifier

RDLLC56F82748

滚动图片以放大

This reference design demonstrates the implementation of a LLC resonant converter using MC56F83783, MC56F81xxx or MC56F82748 digital signal controllers (DSC).

产品详情

选择区域:

框图

LLC Resonant Converter

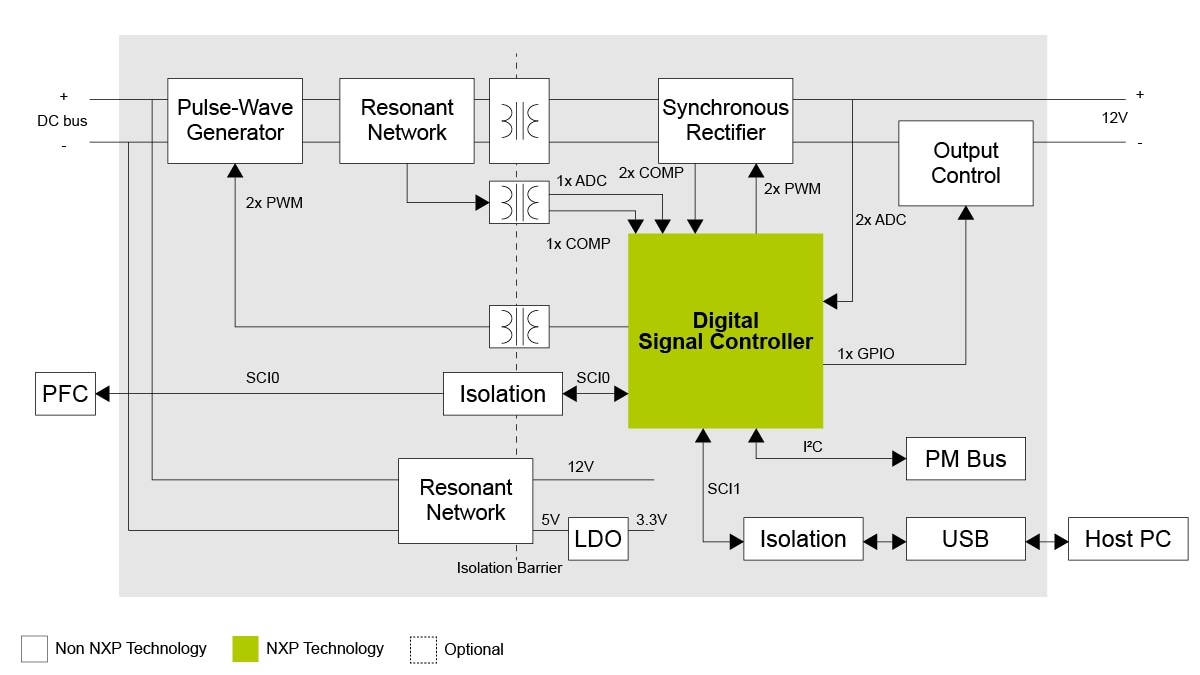

RDLLC56F82748 Block Diagram
获取框图PDF

支持的器件

处理器和微控制器

32位56F8xxxx系列

  • MC56F81xxx: 高达100MHz的数字信号控制器，带DSASS和运算放大器
  • MC56F83xxx: 性能级数字信号控制器, USB FS OTG, CAN-FD

Features

  • Flash updating
  • 12 V/240 W output with universal mains input
  • 120mVp-p output ripple; Overshoot < 5%@0 to 65% load step; Hold up time 20ms@50% load, 15ms@100% load
  • Over-current, over-/under-voltage, voltage brown-in, over-temperature, power limit protection functions
  • Modular software and hardware design for convenient internal reuse and customer evaluation
  • Components
    • Half-bridge LLC with synchronous rectifier
  • Interfaces
    • Isolated USB interface for FreeMASTER connection
    • Isolated SCI communication between primary side and secondary side; IIC interface is reserved for PMBus communication

购买选项

TWR-56F8200-Image

点击展开

  • TWR-56F8200

  • Tower System, DSC Module, MC56F823XX.

  • Kit contains:

    • TWR-56F8200 MCU module
    • USB cable
    • Quick Start Guide
    • Multilink universal development interface

文档

快速参考 文档类别.

筛选

2 文件

设计资源

选择区域:

设计文件

筛选

1 设计文件

  • 印刷电路板与电路图

    LLC Resonant Converter Main Board Schematic

    PDF版本 1Jun 29, 2023 09:57:00414.0 KBLLC-RES-CONV-MAIN-BOARD-SCH
