面向MPXV5004DP差压传感器的传感器工具箱开发平台

FRDMSTBCDP5004 正常供应

滚动图片以放大

这是你的恩智浦MPXV5004差压传感器生态合作体系。它包含演示套件、传感器Shield开发板和分线板。这些电路板受到以下恩智浦软件的支持：传感器工具箱 – CE和物联网传感SDK (ISSDK)

  • 该演示套件(FRDMKE06DP5004)支持采用传感器工具箱 – CE的“开箱即用”演示。它还可以支持传感器的评估和开发。传感器Shield电路板可以与FRDM电路板结合使用，也可以采用FRDMKE15Z和Shield电路板创建新的ISSDK项目。
  • 该分线板(BRKTSTBCDP5004)支持传感器设计的原型开发。

请参阅以下特性，了解更多详情。

产品详情

支持的器件

传感器

差压/表压：高达10kPa

  • MPXx5004: 差压与表压，集成压力传感器（0至3.92千帕）

特征

FRDMKE06DP5004

    Demonstration Kit (MPXV5004DP Sensor Shield Development Board and a modified FRDM-KE06 Board):

  • 支持采用传感器工具箱 – CE软件的演示。
  • 支持轻松、快速地展示传感器数据和结果。
  • 支持采用传感器工具箱 – CE 软件进行全面的传感器评估和开发。

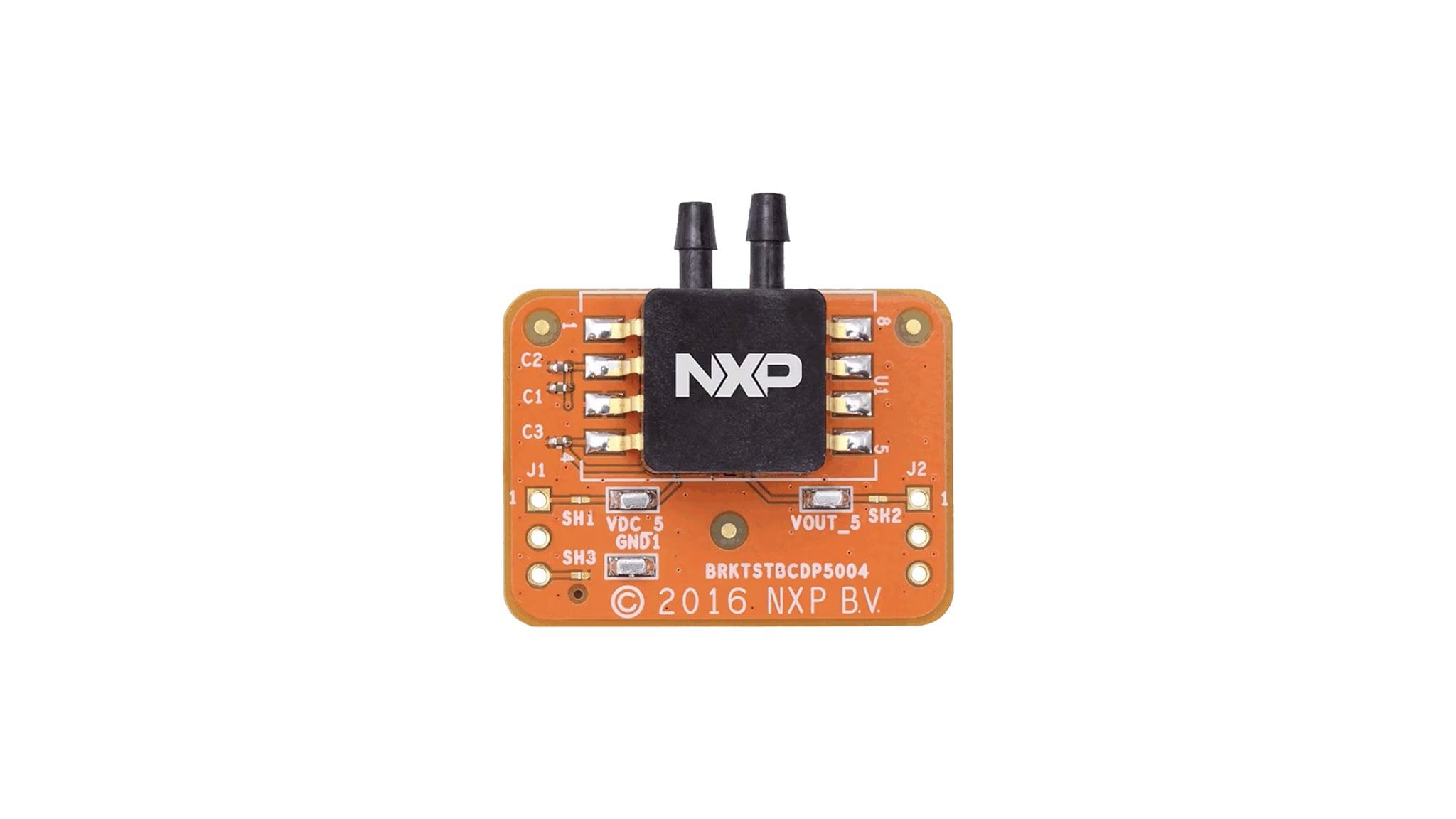

BRKTSTBCDP5004

  • 外形小巧，采用与MPXV5004DP传感器Shield扩展板相同的设计。
  • 支持轻松的原型开发：可以通过线缆或线夹连接到主机系统

购买选项

FRDMKE06DP5004-Image

点击展开

  • FRDMKE06DP5004
    正常供应

  • Kit containing the FRDM-KE06 and the FRDMSTBCDP5004 boards.

  • $77.21 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
BRKTSTBCDP5004-Image

点击展开

  • BRKTSTBCDP5004
    正常供应

  • Sensor Breakout Board for the MPXV5004DP with FRDMSTBCDP5004 design.

  • 数量为 1
从分销商处购买
