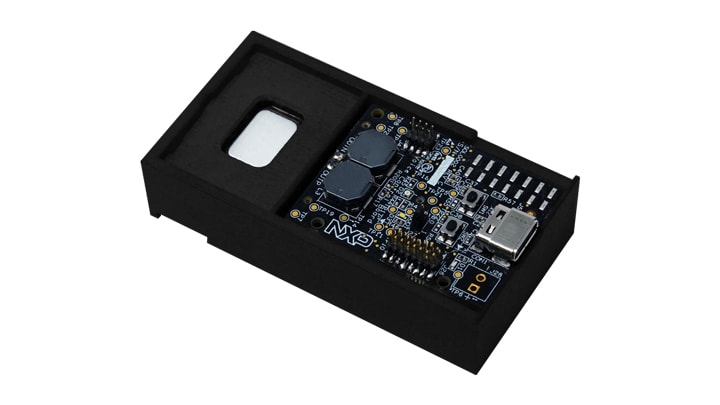

基于MCU的本地语音控制解决方案

MCU-LOCAL-VOICE

滚动图片以放大

恩智浦基于MCU的本地语音控制解决方案利用i.MX RT106L跨界MCU，使开发人员能够快速、轻松地向其产品添加本地语音命令。这个超小规格、量产级硬件设计与完全集成的软件一起运行在FreeRTOS上，用于快速开箱即用的评估和概念验证的研发。这种全包式解决方案最大程度地缩短了上市时间、降低了风险并减少了开发工作量，使原始设备制造商无需Wi-Fi和云连接即可轻松地为其智能家居和智能家电产品添加语音功能，解决了许多消费者对隐私的关切。

基于MCU的本地语音 - 简介

框图

选择框图:

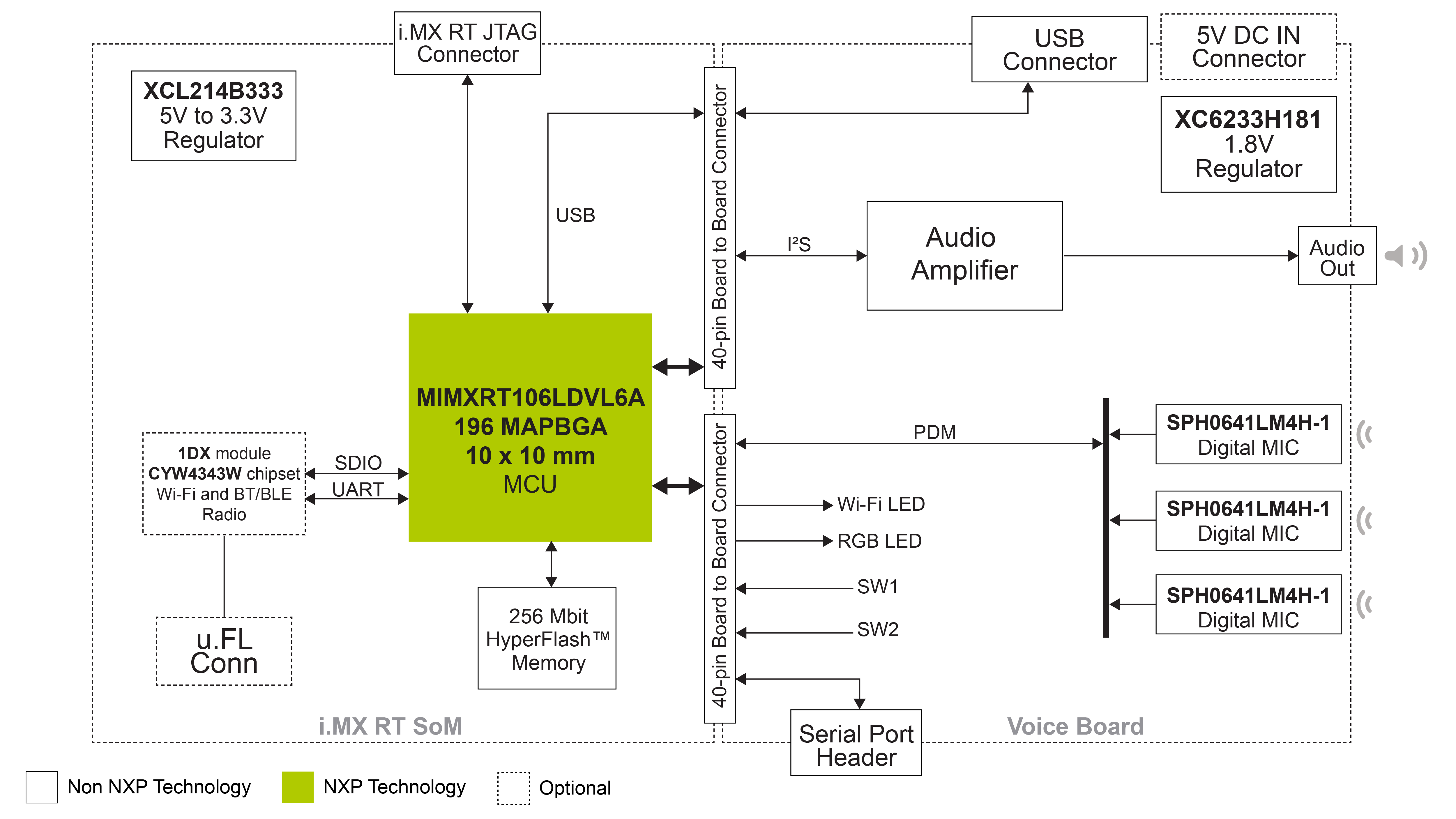

本地语音硬件

i.MX RT Local Voice Control MCU  - Hardware

本地语音软件

i.MX RT Local voice Control MCU  - Software
获取框图PDF

支持的器件

处理器和微控制器

i.MX RT跨界MCU

  • i.MX-RT1060: i.MX RT1060: 跨界MCU， 配备Arm®Cortex®-M7

特征

MCU

  • i.MX RT1060跨界处理器采用Arm® Cortex®-M7内核，提供3020 CoreMark/1284 DMIPS @ 600 MHz、32 kB I缓存、32 kB D缓存和FPU。

系统控制

  • 安全JTAG, PLL OSC, eDMA, 4个看门狗, 6个通用定时器, 4个正交ENC, 4个QuadTimer, 4个FlexPWM, IOMUX。

多功能

  • 无需语音或音频专业知识，超小外形，运行FreeRTOS，支持多达三个集成低成本MEMS麦克风、两个外部数字麦克风线

ADC/DAC转换

  • 2个ADC (20通道), 2个ACMP

处理器

    null

SPK-Class-D

  • 5.6 W时为8 Ohm，6.2 W时为4 Ohms (THD <1%; VBAT= 4 V)，噪声低：<14 μV

自适应DC-DC升压

  • 10 V – 最大限度地提高D类音频放大器的输出功率，同时防止电池产生大的电源尖峰并限制静态功耗

功耗优化

  • 系统效率较高：600 mW正弦波峰值效率为91％，低电池消耗：<125 mA (Po = 380 mW，平均音乐功率)

单电源

  • 5 V USB Type-C

低压差调整

  • DC-to-DC & LDO

温度控制

  • 接口温度监测仪

外部

  • 32 MB超级闪存

内部

  • 1 MB片上SRAM

软件

  • 密码和RNG，安全RTC，保险丝，HAB

Wi-Fi

  • 802.11 b/g/n

Bluetooth

  • Bluetooth/BLE (4.1)

购买选项

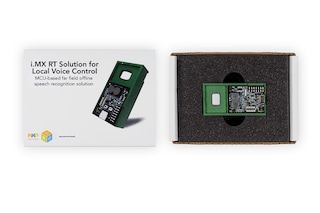

SLN-LOCAL-IOT-Image

点击展开

  • SLN-LOCAL-IOT
    正常供应

  • NXP EdgeReady MCU-Based Solution for Local Voice Control.

  • 全包式的嵌入式i.MX RT语音解决方案，用于本地语音控制

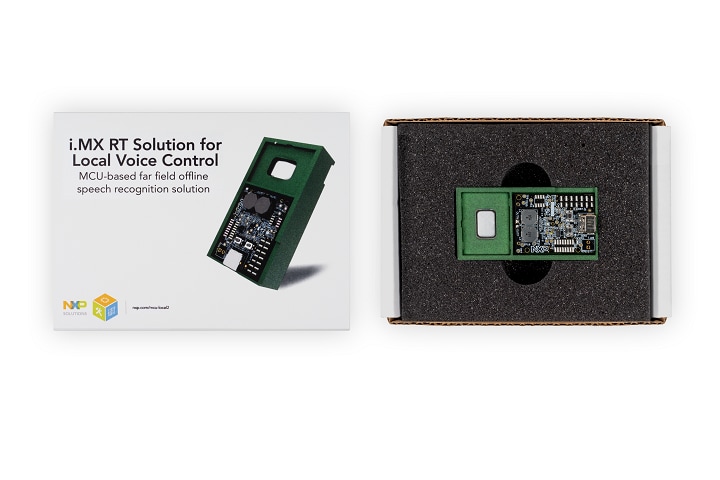

    套件包含

    • i.MX RT语音解决方案
    • USB A型至USB C型线缆
  • 数量为 1
