FLEXGAUGE Software Solution
This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information, please contact your sales representative.

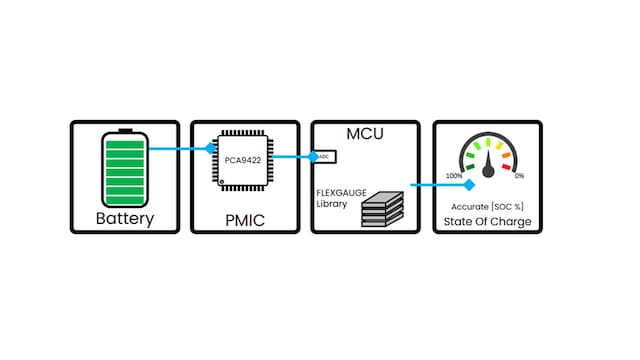

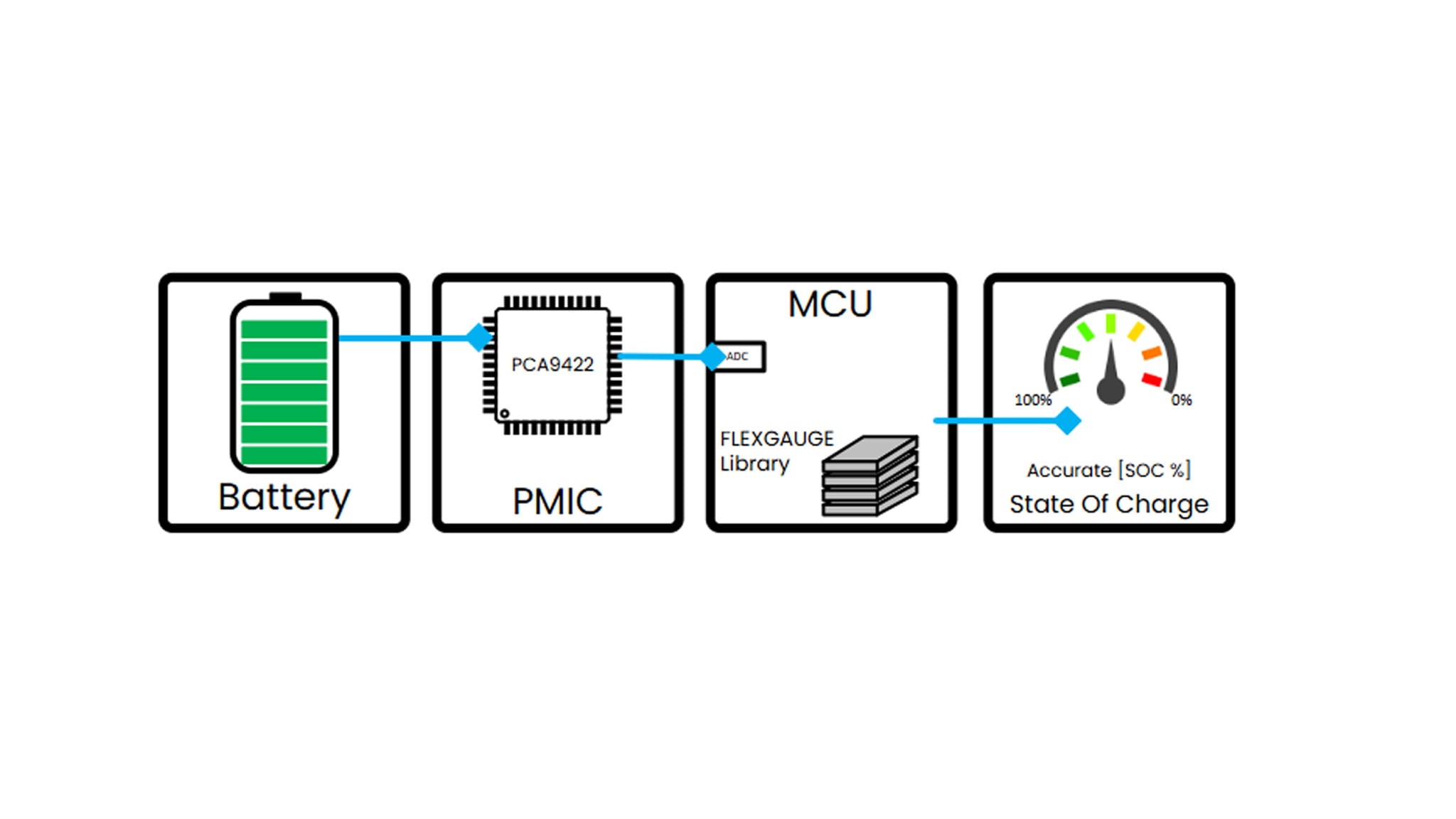

FlexGauge™ is a host software-based battery fuel gauging solution developed by NXP Semiconductors. Designed for low-power embedded systems, FlexGauge eliminates the need for dedicated fuel gauge ICs by running entirely on the system microcontroller unit (MCU). It combines the simplicity of voltage-based estimation with the accuracy of hybrid gauging techniques—delivering precise battery state-of-charge (SoC) monitoring without the cost or complexity of traditional methods.
Powered by software-assisted load tracking, FlexGauge intelligently interprets voltage readings under dynamic conditions, enabling reliable performance across a wide range of applications—with a focus on the Internet of Things (IoT) devices and wearables.
With minimal code footprint, seamless integration into NXP supported software environments and compatibility with various Li-ion and Li-Po battery profiles, FlexGauge is the ideal solution for developers seeking efficient, scalable and cost-effective battery management.
软件详情
Features
Core Technology
- Host software-based battery fuel gauging
- Voltage-based SoC estimation
- Software-assisted load tracking
- Impedance-aware modeling
- Battery profile configurability
Hardware Efficiency
- No fuel gauge integrated circuit (IC) required
- No sense resistor needed
- Uses power management integrated circuit (PMIC) PCA9422
- Reduced bill of materials (BOM) cost
Performance
- High SoC accuracy
- Robust under dynamic loads
- Temperature-aware modeling
- Long-term reliability
Software Design
- Static library (.lib/.a)
- Expandable resource usage
- Lightweight code footprint
- Intelligent sampling control
- Application customizability
支持的器件
- PCA9422: PCA9422：适用于RT5/6/700的超低功耗充电器+仪表PMIC
