Name: Class D Audio Amplifier Reference Design
Price: 52.35 USD
Availability: InStock

产品详情

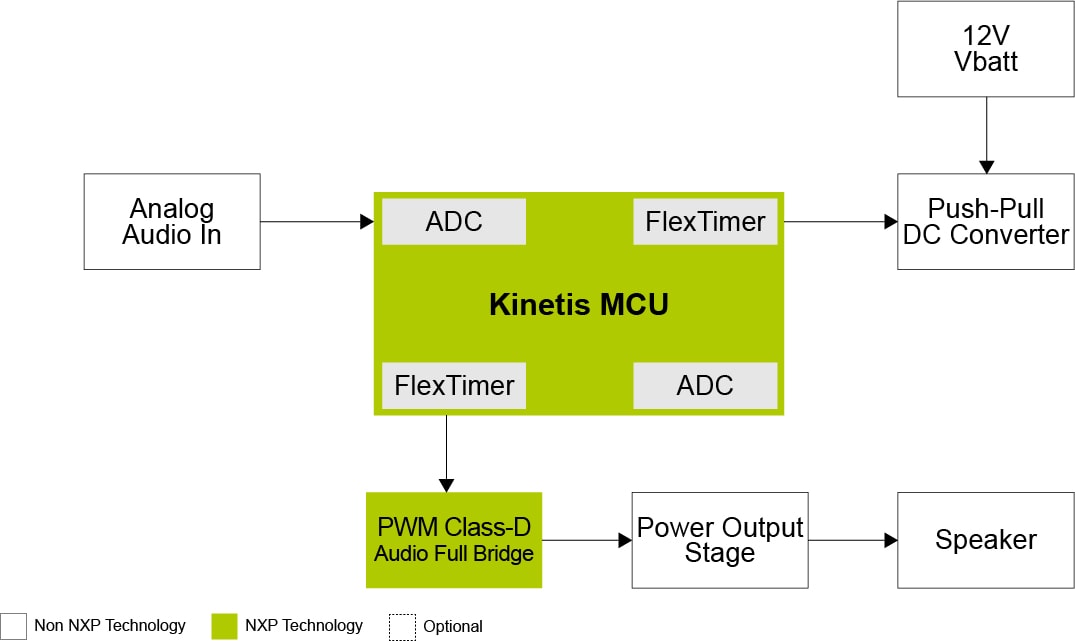

框图

ClassD Audio Amplifier

获取框图PDF

支持的器件

处理器和微控制器

KV系列Cortex-M4/M0+/M7

KV1x: Kinetis® KV1x-75 MHz，入门级3相FOC / 无传感器电机控制微控制器(MCU)，基于Arm® Cortex®-M0+内核

K6x以太网

K64_120: Kinetis^® K64-120 MHz, 256KB SRAM微控制器(MCU)基于Arm^® Cortex^®-M4内核

Features

General

FlexTimer controls the gate drivers for power MOSFETs adding extra protections, such as deadtime insertion, fault control, initialization, and polarity control
Low CPU load, leaving processor available for application enhancement

购买选项

点击展开

FRDM-K64F
正常供应

FRDM Development Board for Kinetis K24 (1 MB Flash), K63 and K64 MCUs.

套件包含

Kit Contains:

FRDM-K64F hardware
Quick Reference card
Additional hardware required: USB A-to-MicroB cable (not included)

外设: ADC
连接器类型: Arduino UNO
电源管理: Low Power Modes
处理: Arm Cortex-M4

$52.35 USD

现货 :82

正常情况下 1-2个工作日内发货

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购
