S12G HVAC Control Reference Design

RDS12GHVAC-1

滚动图片以放大

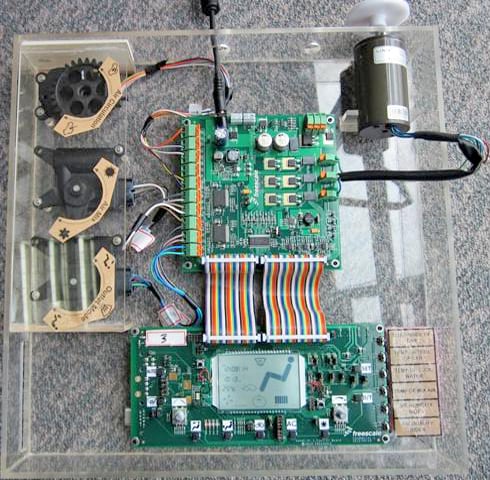

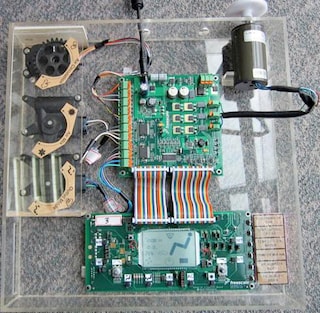

The RDS12GHVAC is a reference design based on the 16-bit S12G ultra-reliable microcontroller, the RDS12GHVAC consists of a central control board with Human-Machine Interface (HMI), a motor control board, flap and blower motors for enabling basic functions of an automotive HVAC using temperature, light, humidity, and air quality sensing interfaces with configurable automatic climate control software algorithm to efficiently control vehicle climate.

产品详情

框图

RDS12GHVAC-1

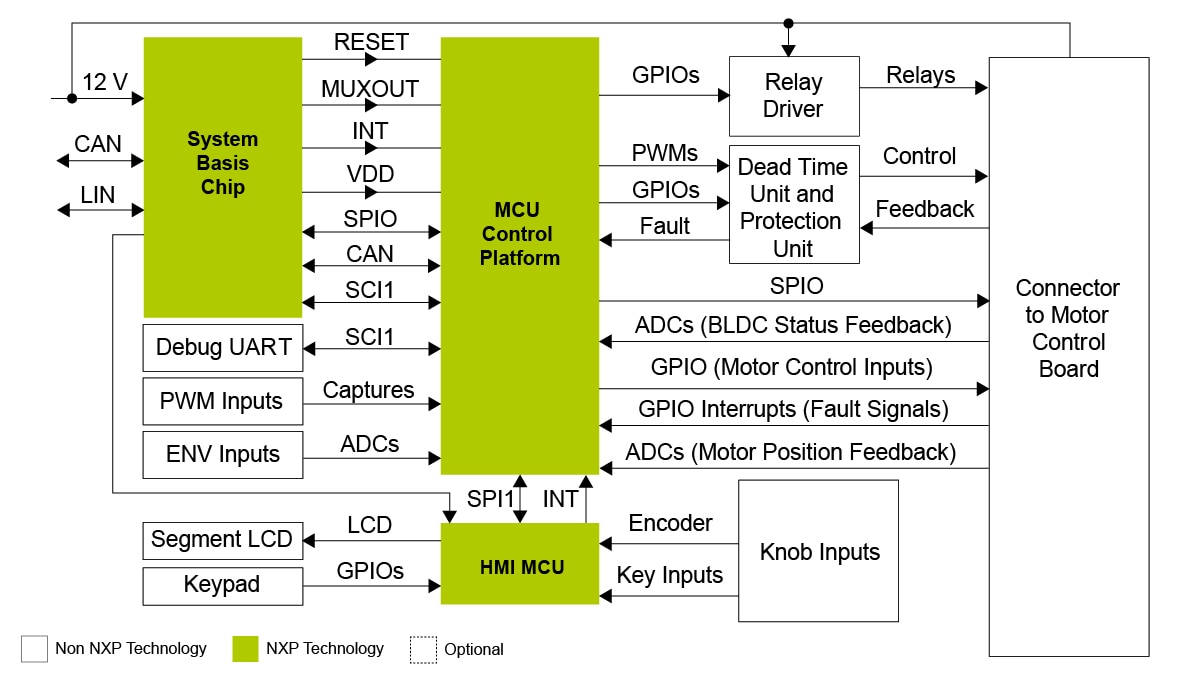

S12G Automotive HVAC Control Platform
获取框图PDF

Features

  • RDS12GHVAC can be tailored for both 12 V and 24 V HVAC systems
  • Supports multiple temperature zones and automatic climate control
  • Real-time clock and date display, adjustment for calendar
  • Extensible with touch keyboard or touchscreen board
  • Interfaces
    • CAN, LIN
    • 2 x logic relay interfaces to compressor defrost module
    • 3x3 matrix keypad and two encoder knob inputs
    • 4x37 segment LCD and adjustable backlighting
  • Power
    • Ultra-low power mode, can be woken up by HMI or LIN CAN bus
  • Target Applications
    • HEATING-VENTILATION-AIR-CONDITIONING
    • Industrial
