QN9090DK：QN9090/30(T)无线MCU的开发平台

QN9090-DK006 正常供应

滚动图片以放大

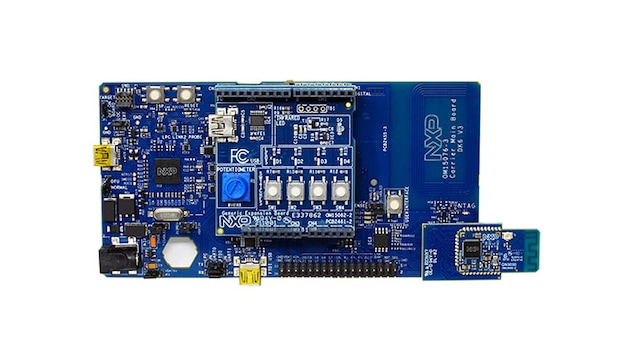

QN9090开发平台QN9090DK带有内置编程器和调试器，以及在完整的软件开发套件(SDK)中展示标准GATT配置文件的示例应用套件。它旨在帮助您采用恩智浦具有可选NFC技术的QN9090/30 (T) Bluetooth LE片上系统，快速开始您的项目。

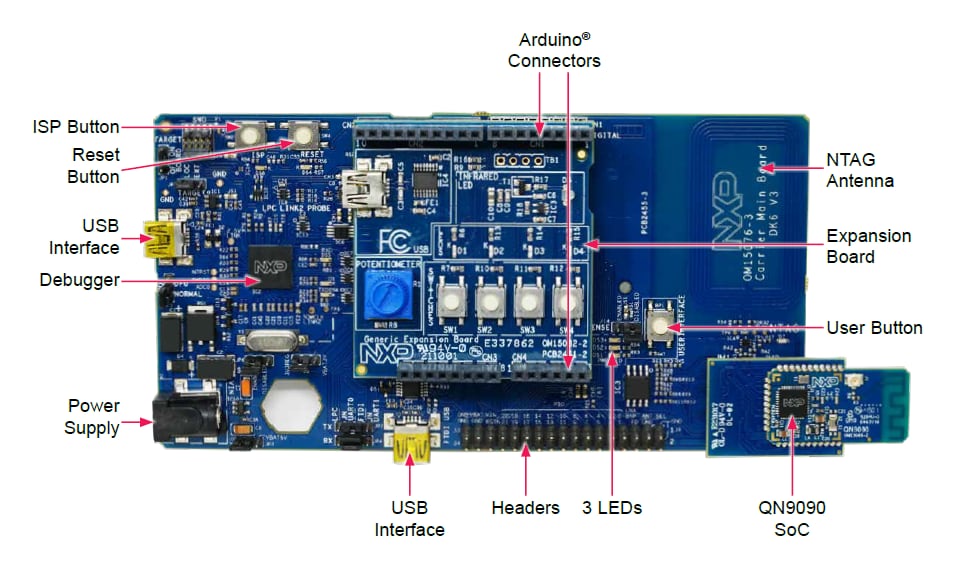

框图

QN9090-DK006 9板组件

QN9090-DK006 9-board components
获取框图PDF

支持的器件

无线连接

低功耗蓝牙

  • QN9090-30: QN9090/30(T): Bluetooth LE MCU带有Arm®Cortex®-M4 CPU, 高能效的模数外设以及NFC标签选项

特征

无线MCU

  • 带NFC NTAG的QN9090(T) Bluetooth LE 5.0 MCU的模块站点

NFC

  • 面向NFC标签的PCB天线

调试

  • 板载高速USB、Link2硬件调试器，提供Arm CMSIS-DAP和SEGGER J-Link OB协议选项

可扩展性

  • 基于Arduino R3的扩展选项，以及额外的扩展端口引脚

用户接口

  • 电源、复位、ISP和UART Tx/Rx状态LED。
  • 目标复位和用户按钮。

电源

  • 板载3.3V USB接口，4块AAA电池，2块AAA电池(低功耗模式)或外部电源选项。
  • 内置功耗测量

外部存储器

  • 8Mb Macronix MX25R QSPI闪存。

购买选项

QN9090-DK006-Image

点击展开

  • QN9090-DK006
    正常供应

  • Development platform for QN9090/30(T) wireless MCUs.

    • 1个主板
    • 1个通用子板
    • 1个带夹层的模块
  • $132.25 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 2
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
QN9090-001-T10-Image

点击展开

  • QN9090-001-T10
    正常供应

  • Development platform for QN9090/30(T) wireless MCUs.

    • 1个带夹层的模块
  • $33.35 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 3
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
